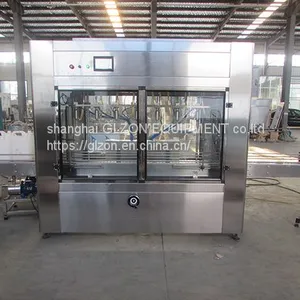

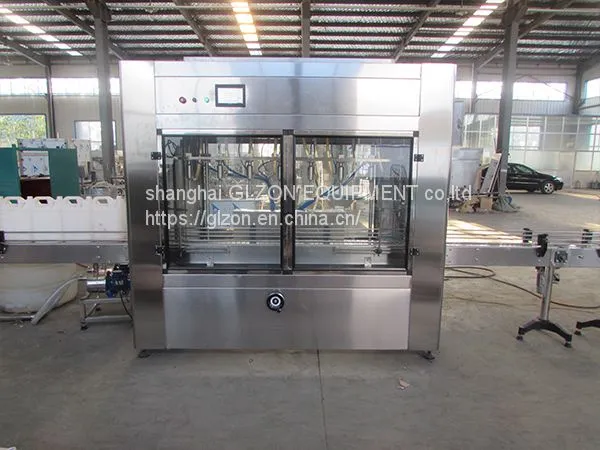

Automatic Gravity Filling Machine

Product features:

1. Intelligent operating system

With the support of PLC software, the equipment can automatically increase or decrease to reach the target amount only by setting the target amount on the touch screen. Color display, touch screen to complete all operations, operating instructions and other functions.

2. Stable filling and rehydration function

The principle of functional separation is adopted, and no liquid is added in the filling process, so that the instability of floating filling and liquid addition at the same time is overcome.

3. Wide application range and convenient adjustment.

It is suitable for filling most bottle types (especially special-shaped bottles), overcoming the trouble of changing dial plate when changing bottle types with rotary filling machine. For irregular bottle types that cannot be filled with rotary filling machine, this machine has greater advantages.

Technical parameters:

1. power source: 50HZ/60HZ 380v

2. Number of filling heads: 4, 6, 8, 10, 12

3. Filling capacity: can be customized according to customer requirements.

4. Filling speed: 150 bottles/hour/head (calculated by 2L)

5. Power rate: 0.55kw

6. Working pressure: 0.6-0.7MPa

7. Overall dimensions: 1600X950X2250mm

8. Weight: about 500kg
