Help CenterPaint Filling Machine Production Line
Related Products
-
Full-automatic Filling and Palletizing Production Line of Paint Stone PaintNegotiableMOQ: 10 Bags -
Automatic Three-row Weighing Filling MachineNegotiableMOQ: 10 Bags
-
Automatic 200L Filling MachineNegotiableMOQ: 10 Bags
-
Automatic Square Barrel Filling Production LineNegotiableMOQ: 10 Bags
-
Automatic 20L Weighing Filling MachineNegotiableMOQ: 10 Bags

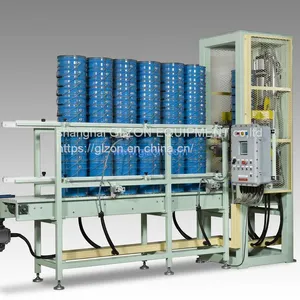

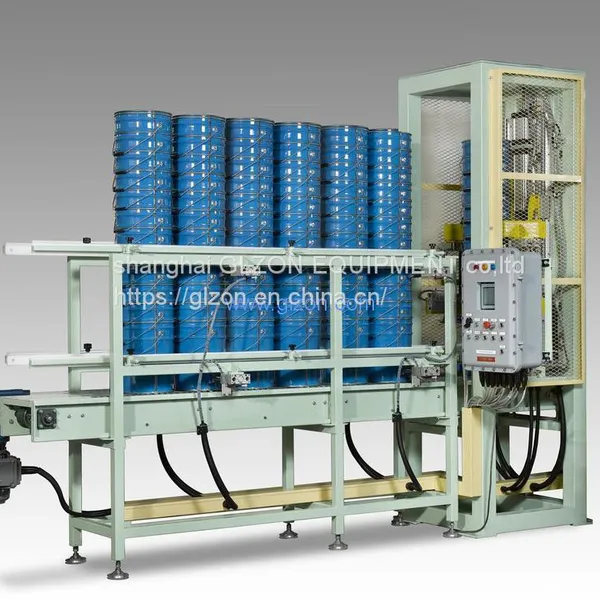

Scope of application: This machine is suitable for filling all kinds of coatings.
Function: The fully automatic coating filling line is a fully enclosed electromechanical yi product. Mechanical equipment can complete the operations of automatic barrel loading, quantitative filling, capping, inspection, pallet feeding, pre-palletizing, palletizing and barrel pushing, automatic output, etc. under electrical control.
Equipment composition:
1. The complete set of equipment is an electromechanical yi integrated product consisting of a bucket system, a filling system, a weighing system, a capping system, a pallet supply system, a palletizing system, an electrical control, a pneumatic control, a vacuum system and a rack.
2. Adopt the technology of OB company in Germany, which has high measurement accuracy and is not affected by materials.
3. On-line display of weighing value
4. Two filling methods: net weight and gross weight
5. Fast/slow filling speed, fast feeding to ensure output, slow feeding to ensure accuracy;
6. The filling weight and other weight parameters can be set arbitrarily within the range of filling quantity adjustment.
7. The filler inlet is DN80 or DN50.
The material buffer hopper has a volume of 300L and is made of SUS304 or 316L stainless steel.
8. Filling head and pipeline adopt quick-loading structure, which is convenient for cleaning.
9. Optional distance between the plane of the conveying roller table and the ground: 500mm 750mm.
10. Automatic barrel sorting and barrel taking equipment is adopted, which accelerates the conveying speed.
