Serving china 10/100/1000M 48 port poe injector
- 1000 per Month
- T/T Credit Card
- good price Single Port 100M dual poe injector
- 10/100/1000M Gigabit POE Injector 48V IEEE802.3 af/at compliant Max 30W
- Gigabit 52v poe rj45 injector passiv 802.3 at/af/bt max 60W
- High quality 4-port poe switch 24v
- Good quality gigabit ethernet poe splitter dual output 5v 12v poe splitter with 1000mbps 15.4w for ip camera
- High performance passive poe gigabit poe injector IEEE802.3at standard 30w 2 copper cable RJ45 ports
Product Description
Serving 10/100/1000M 48 port poe injector
1.Usage
The 48 port poe injector(PoE adapter) can save you money by using an existing Ethernet line to deliver data and power.
The PoE Injector (PoE adapter) can easily connect any IEEE 802.3af-compliant device to a non-PoE LAN switch port. This PoE Injector can be used to connect a wireless access point, IP phone, network camera, or any IEEE 802.3af powered device to a LAN switch.
2.Reduce Wiring Costs
With the PoE Injector (PoE adapter) you can dramatically reduce wiring costs by powering devices through your existing Ethernet line rather than running new AC power lines. To use this product all you need to do is connect the PoE Injector to the LAN switch port, and then use your existing Ethernet Cable to deliver DC power and data to your device.
3.Specification
Input Rated Voltage : | 90VAC~250VAC |
Input Frequency Range: | 47Hz~63Hz |
Efficiency : | 85%(MIN)at Rated Voltage |
Output: | 5~56V MAX 2.0A |
Output power : | MAX 70W |
Ripple and Noise : | <120Mv at full road with 20MHz bandwidth |
Turn On Delay Time: | <3S (AC:110V and full load) |
Safety protection : | over voltage and current protection for poe injector |
Leakage Current: | <5mA |
Operating Temperature: | 0°C----+40°C |
Storage Temperature: | -20°C----+85°C |
Certificate: | CE FCC ROHS etc |
Safety Standard : | EN60950-1 UL60950-1 ESD (EN61000 3-3) |
Data connector | RJ45 +Power pins4&5, Power Return pins7&8 |
Futures: | Compliant with Isolation and Channel |
Application: | IP Telephones, Wireless Network Access Points, Blue Tooth Access Point IP Print Servers, Security Camera etc… |
4.Protect Your Equipment
Now that you are running DC power to your networked equipment through the Cat5 cabling, you need to be sure that your devices are protected from power problems The PoE Injector is equipped with short circuit protection keeping your devices safe

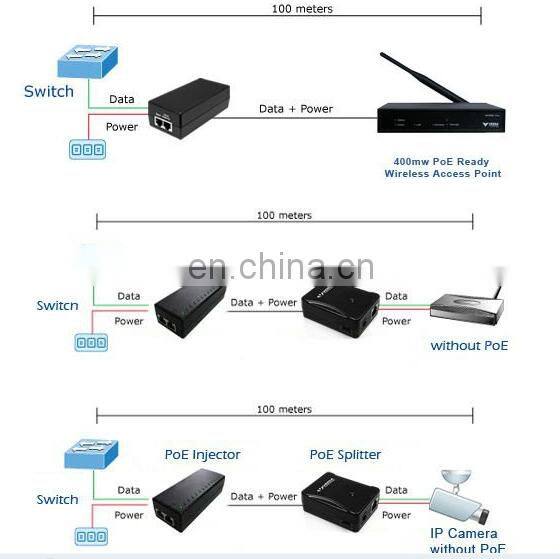

5.How PoE injector work?
Our Strength & Quality Assurance
Payment & Shippment & Delivery
1.Payment
2.Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc
3.Deliverty: 2-3 days after payment dowm.
Contact information
Rollball International Co., Ltd.
Address: No.15 Buidling, Longbi Industrial Area, Bantian, Buji Town, Shenzhen,China
Tel: 0086-755-33591998
