Network Equipment 10/100M 4 Port Poe Switch Plus One UTP Port

Network equipment 10/100M 4 port poe switch plus one UTP port

Description:

1. 4 port POE switch, the PoE Switch RB-P1050004 provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable.

2.The five Fast Ethernet ports can be used for any 10/100 Mbps link and four of these ports can supply industry-standard IEEE 802.3af power. Advanced auto-sensing algorithm gives power only to IEEE802.3af end devices, so no need to worry about damaging proprietary PoE or non-PoE equipment. In addition, it discontinues the power when PoE devices are disconnected. Easy and reliable, the PoE Switch RB-P1050004 automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink™.

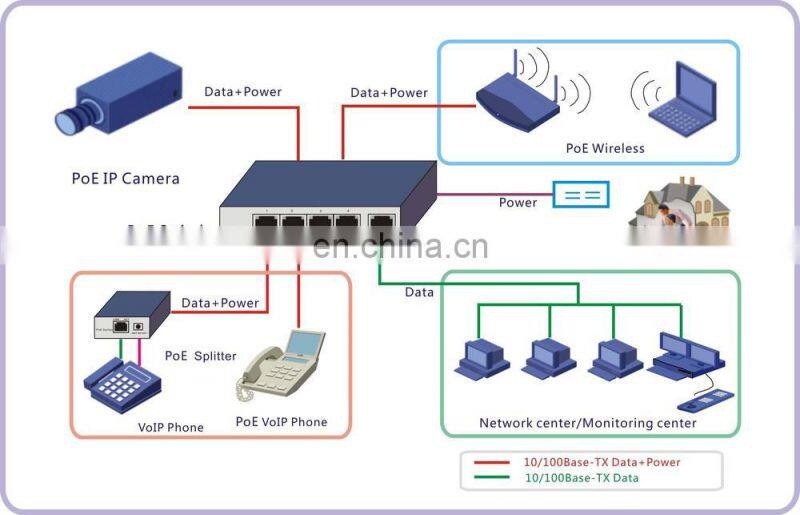

3.The affordably priced PoE Switch RB-P1050004 delivers PoE to any small business network that wants to simplify the installation of wireless access points and IP-based surveillance cameras.

4.These devices are optimally installed on a ceiling or high on a wall, away from most electrical outlets. PoE eliminates the requirement for a dedicated electrical outlet to power these devices. This allows for flexibility in situating devices where AC power is difficult to access and lowers installation costs. Compact and flexible, the PoE Switch RB-P1050004 is ideal for small business networks that need to inexpensively use PoE to deploy wireless access points and IP-based network surveillance cameras.

The main features:

1.IEEE 802.3af power on up to 4 ports

2.Supply power to wireless access points and surveillance cameras over Cat-5 cabling

3.5 10/100 Mbps Ports with AutoUplink™

4.Supports PoE power up to 15.4W for each PoE port

5.Supports PoE power up to 53W for all PoE ports

6.Supports PoE IEEE 802.3af compliant PDs

7.Supports IEEE 802.3x flow control for Full-duplex Mode and back pressure for Half-duplex Mode

8.1K entry MAC address table of the PoE Switch RB-P1050004 with auto-learning and auto-aging

9.LED indicators for monitoring power, link, activity and speed

10.External power adapter supply

Specifications:

1. Quality system of ISO900,CE,FCC,ROHS registration
2. Manufacture system
3. R&D system
4. Purchasing system
5. Prompt delivery and remarkable services
6. Reasonable prices
7. Accept orders according to customer's demands
8. Rich experience of OEM & ODM co-operation
9. Shipment,payment and delivery

We sincerely invite all interested buyers to visit our company and contact us directly for further information, we will reply you as soon as possible!!!
