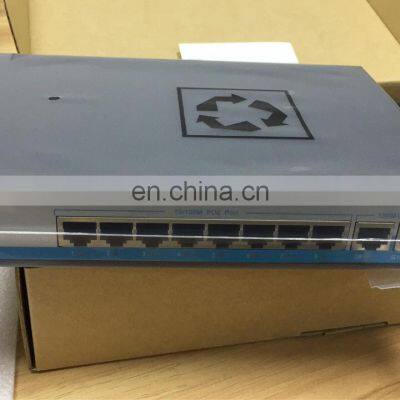

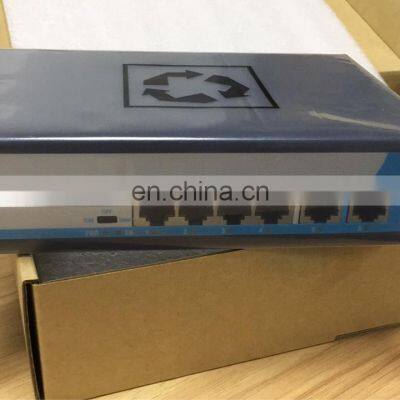

10port 10/100/1000M Poe Switch Port 1-8 Support POE+2* 1000M Fiber Uplink Port

Product

Model

8/16/24 port

Network Ports

8/16/24x 10/100/1000M copper cable RJ45 ports + 2 Gigabit sfp Uplink port

Transmission Method

Store-And-Forward

Network Media

Performance Specifications

Bandwidth:52Gbps (non-blocking)

Network Protocols:

IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control;

 IEEE 802.1af DTE Power via MDI; IEEE 802.3af

Buffer memory:96 KB embedded memory per unit

Address database size:1,000 media access control (MAC) addresses per system

Addressing:48-bit MAC address

Mean Time Between Failure (MTBF):190,000 hours (~ 21 years)

Acoustic Noise: 0 dB

Status LEDs

System: power supply; Every Port: connecting, PoE working status

Power Supply

Total Power Consumption: 60 W maximum

15.4W for each POE port,120/250/360W for total

Power input: AC100-240V 50/60Hz; (every country use a custom power plug)

Physical Specifications

Dimensions (H x W x D):28 x 118 x 85mm

Weight::0.34kg

Environmental Specifications

Operating temperature: 0 to 55° C

Storage temperature: -20 to 75°C

Operating humidity: 90% maximum relative humidity, non-condensing

Storage humidity: 95% maximum relative humidity, non-condensing

Operating altitude: 10,000 ft (3,000 m) maximum

Storage altitude: 10,000 ft (3,000 m) maximum

Electromagnetic Emissions

CE mark, commercial

FCC Part 15 Class B

VCCI Class B

EN 55022 (CISPR 22), Class B

CTick

EN 55024

Safety

CE Mark ,commercial

CE/LVD EN60950

Warranty

3 year warranty(1 yeas warranty for power adapter)

Package Contents

8/16/24-Port 10/100/1000M POE SWITCH

AC Adapter

Installation guide

Warranty/Support Information card
