8-port 24 Gbps sfp switch
Description
To fulfill the demand of PoE for network applications with Gigabit speed transmission, the ROLLBALL PoE Gigabit Ethernet Switch -RB-P5080008 is an ideal solution. Each 10/100/1000Mbps port of RB-P5080008 features IEEE 802.3af Power over Ethernet (PoE) that combines up to 120 Watts power output and data per port over one Cat.5E / 6 Ethernet cable, with totally 120 Watts PoE budget on whole system

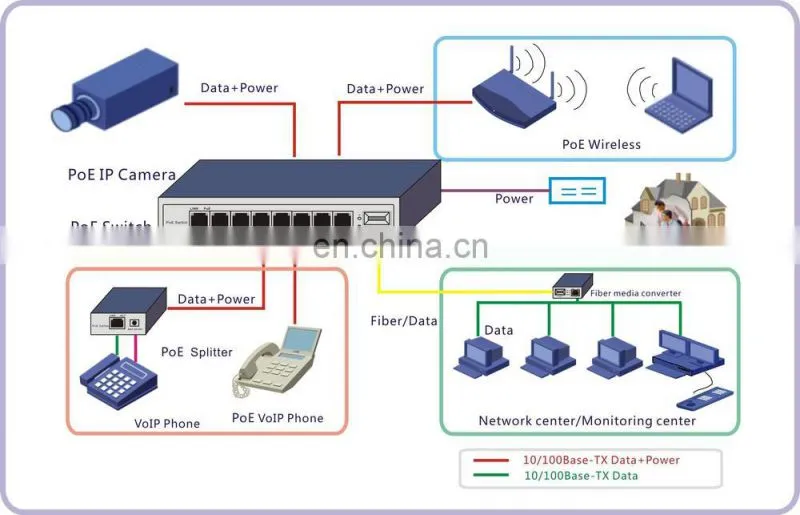

- It is designed specifically to satisfy the growing demand of power consuming network PD (powered devices) such as network cameras, wireless LAN access points and other network devices .
Product Features
- IEEE 802.3af power on up to 8 ports
- Supply power to wireless access points and surveillance cameras over Cat-5 cabling
- 8 10/100/1000 Mbps Ports with AutoUplink™
- Supports PoE power up to 15.4W for each PoE port
- Supports PoE power up to 110W for all PoE ports
- Supports PoE IEEE 802.3af compliant PDs
- Hardware based 10/100/1000Mbps Auto-Negotiation and Auto MDI/MDI-X
- 8K entry MAC address table of the PoE Switch RB-P5080008 with auto-learning and auto-aging
- LED indicators for monitoring power, link, activity and speed
- External power adapter supply
Order Information
Product:RB-P5080008
Type:8-PORT 10/100/1000M SWITCH WITH 8-PORT POE,IEEE 802.3af,PoE Power Output:15.4Watts,PoE Budget:120Watts
Power Pin Assignment:Data provided over pairs over 1/2and 3/6 ,Power over spare pairs4/5(+) and 7/8 (-)
Specifications
sfp switch
Product |
8-PORT 10/100/1000 SWITCH WITH 8-PORT POE |
Typ |
RB-P5080008 |
Network Ports |
8 10/100/1000Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX |
Power Pin Assignment |
Data provided over pairs over 1/2and 3/6 ,Power over spare pairs4/5(+) and 7/8 (-) |
PoE Distance |
100m |
Transmission Method |
Store-And-Forward |
Network Media |
10BASE-T:UTP category 3,4,5 cable (maximum 100m) |
100BASE-T:UTP category 5,5e cable (maximum 100m) | |
100BASE0-TX: UTP category 5, 5e cable (maximum 100m) |
Product list
| 10/100M POE Switch | ||
| Model | Ports | Power |
| 1 Ports POE | ||
| RB-P1010101F | 1x RJ45 1 x PoE 1 x SC | IEEE802.3af (each port 15.4W) |
| RB-P1010101-at | 1x RJ45 1 x PoE 1 x SC | IEEE802.3at (each port 25.5W) |
| 4 Ports POE | ||
| RB-P1050004 | 5x RJ45 4 x PoE | IEEE802.3af (each port 15.4W) |
| RB-P1050004-at | 5x RJ45 4 x PoE | IEEE802.3at (each port 25.5W) |
| RB-P1040104F | 4x RJ45 4 x PoE 1 x SC | IEEE802.3af (each port 15.4W) |
| RB-P1040104F-at | 4x RJ45 4 x PoE 1 x SC | IEEE802.3at (each port 25.5W) |
| 9 Ports Switch (1--4Ports POE) | ||
| RB-P1090004 | 9x RJ45 4 x PoE | IEEE802.3af (each port 15.4W) |
| RB-P1090004-at | 9x RJ45 4 x PoE | IEEE802.3at (each port 25.5W) |
| RB-P1080104F | 8x RJ45 4 x PoE 1 x SC | IEEE802.3af (each port 15.4W) |
| RB-P080104F-at | 8x RJ45 4 x PoE 1 x SC | IEEE802.3at (each port 25.5W) |
| 8 Ports POE | ||
| RB-P1090008 | 9x RJ45 8 x PoE | IEEE802.3af (each port 15.4W) |
| RB-P1090008-at | 9x RJ45 8 x PoE | IEEE802.3at (each port 25.5W) |
| RB-P1080108F | 8 x RJ45 8 x PoE 1 x SC | IEEE802.3af (each port 15.4W) |
| RB-P1080108F-at | 8 x RJ45 8 x PoE 1 x SC | IEEE802.3at (each port 25.5W) |
| 8 Ports POE | ||
| RB-P1080208F | 8 x RJ45 8 x PoE 1 x RJ45/SFP combo port +1 Gigabit SFP solt | |
| RB-P1080208FM | 8 x RJ45 8 x PoE 1 x RJ45/SFP combo port +1 Gigabit SFP solt with network management | |
| 16Ports POE | ||
| RB-P1160216 RB-P1160216F | 16xRJ45 16xPOE 2x1000M GE(combo SFP) | IEEE802.3af (each port 15.4W) |
| RB-P1160216M RB-P1160216FM | 16x RJ45 16 x PoE 2 x GE(combo SFP) with network management | IEEE802.3af (each port 15.4W) |
| 24Ports POE | ||
| RB-P1240224 RB-P1240224F | 24xRJ45 24xPOE 2x1000M GE(combo SFP) | IEEE802.3af (each port 15.4W) |
| RB-P1240224M RB-P1240224FM | 24 x RJ45 24 x PoE 2 x GE(combo SFP) with network management | IEEE802.3af (each port 15.4W) |
| POE Injector/Adaptor | ||
| RB-PSE3101AC | 2x 10/100M copper cable RJ45 ports +1x AC female jack | IEEE 802.3af |
| RB-PSE3101ACG | 2x 10/100/1000M copper cable RJ45 ports +1x AC female jack(AC input) | IEEE 802.3af |
| POE Splitter | ||
| RB-PD3101 | Input: PoE port, Output: DC12/5V Power, RJ45 | IEEE 802.3af |
| RB-PD3101G | Input: PoE port, Output: DC12/5V , RJ45 | IEEE 802.3af |
| Gigabit POE Switch | ||
| 1 Ports POE | ||
| RB-P5010101F | 1x RJ45 1 x PoE 1 x SC (Gigabit ethernet) | IEEE802.3af (each port 15.4W) |
| RB-P5010101-at | 1x RJ45 1 x PoE 1 x SC (Gigabit ethernet) | IEEE802.3at (each port 25.5W) |
| 8 Ports POE | ||
| RB-P5080008 | 8x RJ45 8 x PoE (Gigabit ethernet) | IEEE802.3af (each port 15.4W) |
| RB-P5080008-at | 8x RJ45 8 x PoE (Gigabit ethernet) | IEEE802.3at (each port 25.5W) |
| 4 Ports POE | ||
| RB-P5080004 | 8x RJ45 4 x PoE (Gigabit ethernet) | IEEE802.3af (each port 15.4W) |
| RB-P5080004-at | 8x RJ45 4 x PoE (Gigabit ethernet) | IEEE802.3at (each port 25.5W) |
| 4 Ports POE | ||
| RB-P5060004 | 6x RJ45 4 x PoE (Gigabit ethernet) | |
| RB-P5060004-at | 6x RJ45 4 x PoE (Gigabit ethernet) | |
