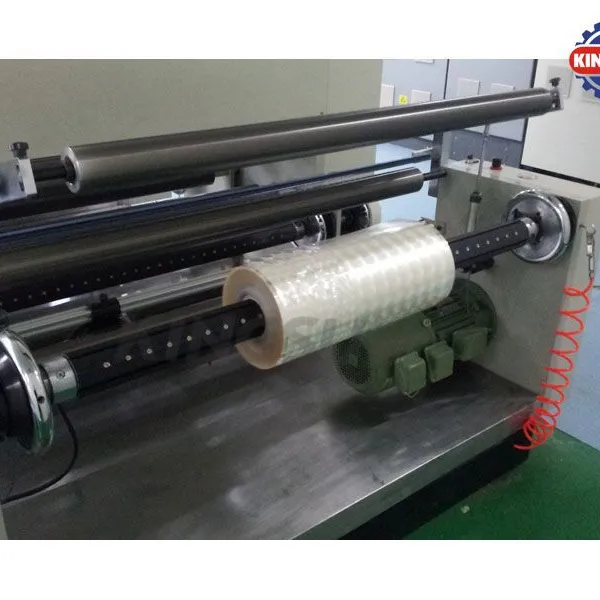

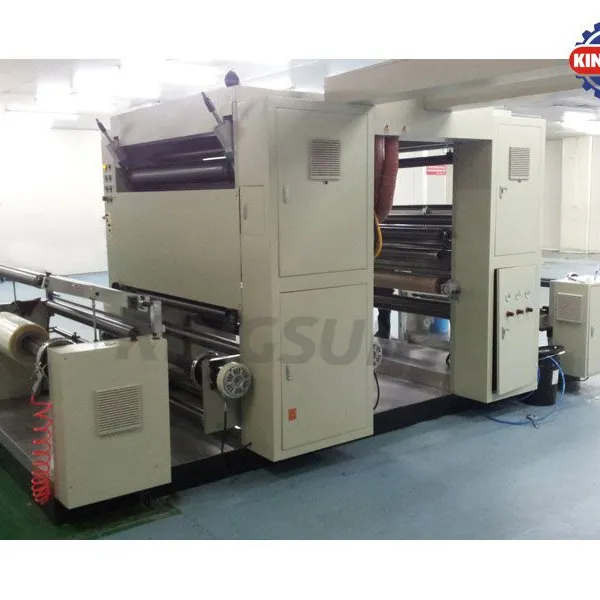

KLJ-1200 Model Roll to Roll UV Optical Film Imprinting Machine
Features:

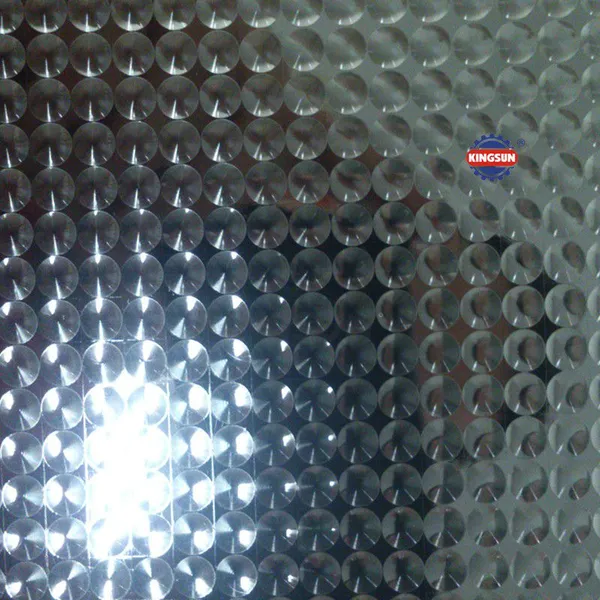

1.Applied to emboss the diffusion film, brightness enhancement film, reflective film, the light guide film, can be used for IMD/ IML, TFT- LCD TV, computers, mobile phones and other touch screen backlight module to let backlight glow.
2.With UV Nano-leveling transmission device, using light pre-cured and cold pressing technology transfer micro-prismatic constructions, with light polymerize strong curable systems, positive and negative wire bonding the protective film performance, embossing thickness of 20- 50u.

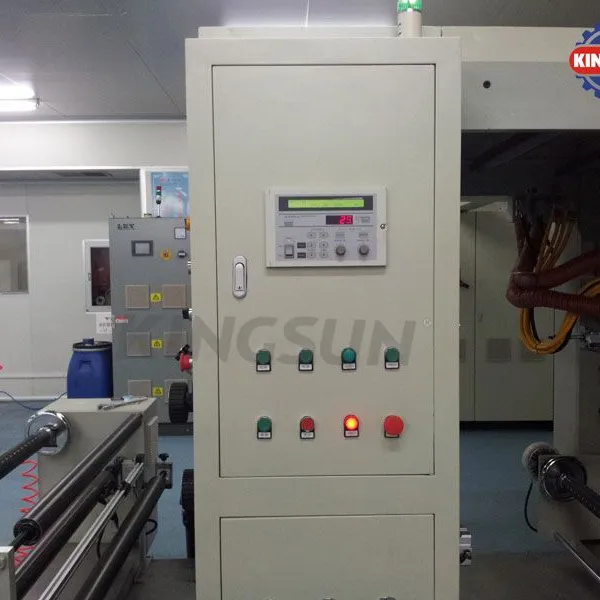

3.With PLC automatic control, TDM extra accuracy wheel, the most compete UV coating line, non-contact drying tunnel design to improve the flatness of the film surface; the Nitrogen filling UV curing technology makes a perfect combination between the coating and the raw material and a high embossing quality, its accuracy is up to the Nano-scaled; the protective film to fit with various micro-edge structures can be done by one machine, the machine can reduce manpower, and save cost; able to emboss hard coating, ITO scratch-resistant protective film, solar Fresnel lens film, LED lighting reflective film, and with special plate to emboss PET or OPP local positioning Fresnel lens (Multi-lens) anti- counterfeiting film.
4.This machine with balance between the structure system and the technical performance; multipurpose and performance- to- price ratio is higher than the similar models in USA, Japan, Korea.
Main specifications:
Model |
KLJ-1200 |
Embossing width |
600-1200mm |
Max. roll diameter |
600-800mm |
Material thickness |
20-500um |
Max. speed |
5-100m/min |
Plate roller diameter |
240-300mm |
Motor power |
20KW |
Voltage |
380V |
Air pressure Mpa |
0.4KG/CM2 |
Coating mode |
Smooth roll, anilox roller |
Overall dimensions |
5000 x 2330 x 2380mm |
