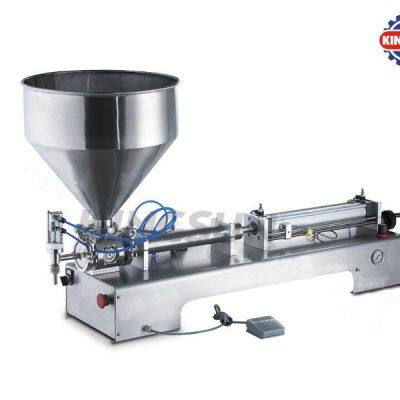

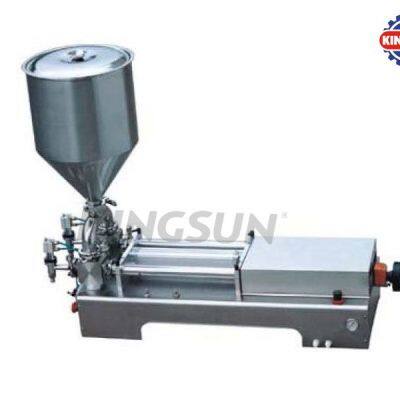

GWGD Series Semi-Automatic Paste Filling Machine
Product Feature:
This series product is suitable for filling high-viscous liquid and paste products in the industries of pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticide and special trades. With no need for power supply, the machine is safe and with the personalized design, can meet the modern enterprises requirements. This machine is the semi-automatic double piston liquid filling machine, improving the work efficiency. This machine reasonable in design, smart in model, easy to operate, the materials contacting part is made of 304 stainless steel material. With adjustment handle of filling volume, the filling speed can be adjusted at will, with high filling accuracy. Filling head adopts anti-leakage, anti-pull and with diving filling device.
Technical Specification:
Model | G1WGD (single head) | G2WGD (2 heads) |
Voltage | 200/110V50/60HZ | |
Air pressure | 0.4-0.6mpa | |
Filling speed | 5-20 bottle/min | 10-40 bottle/min |
Filling accuracy | ≤±1% | |
Filing volumes range | 5-100ml 10-280ml 20-500ml 100-1000ml 500-2800ml 1000-5000ml | |
