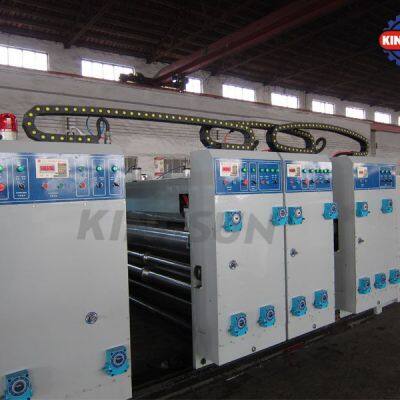

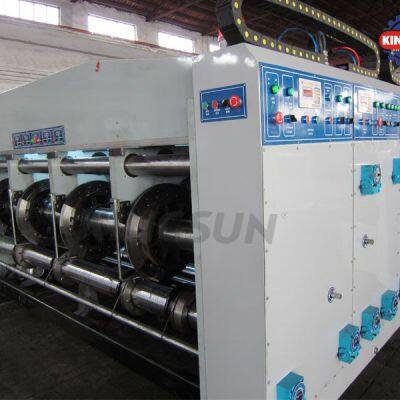

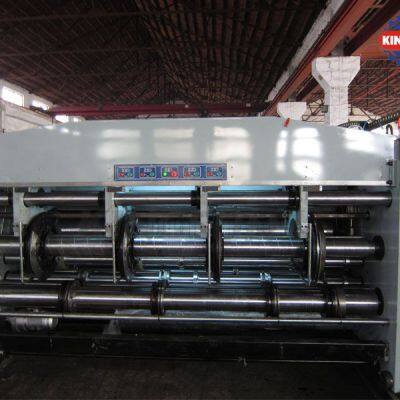

KSYK Series Semi-Automatic Flexo Printing Slotting Machines

Name: KSYK Series Semi-Automatic Flexo Printing Slotting Machines
Brand: KINGSUN
SKU: 170701687
Availability: InStock

Wenzhou Kingsun Machinery Industrial Co.,ltd

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

KINGSUN

Place of Origin:

China

Model Number:

KSYK

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo, China

Delivery Detail:

40 days

Brand Name KINGSUN

Place of Origin China

Model Number KSYK

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Voltage 380V

Usage Paper Printer

Condition New

Automatic Grade Automatic

Color & Page Multicolor

KSYK Series Semi-Automatic Flexo Printing Slotting Machines

1.Semi-automatic chain feeder,side baffle fixed position.

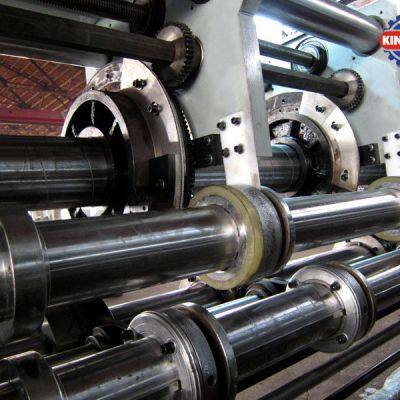

2.Transmission gears are all after heat treating grinding,spray lubrication.

3.Quick speed phase 360 degrees adjustment.

4.pneumatic lifting plate,pneumatic membrane pump auto cycle ink supplying.

5.Printing slotting units use pneumatic locking, electric clutch separating pneumatic braking.

6.Slotting unit is synchronous adjusting carton box height, synchronous adjusting creasing wheel.

7.Up creasing wheel packed with rubber,will not damage cardboards.

Main Specifications:

Parameter name	Unit	Size
Parameter name	Unit	KSYK1570*1900	KSYK1570*2100	KSYK1570*2300	KSYK1570*2600
Economic speed	pieces/min	50
Max.feeding size	mm	1500*2000	1500*2200	1500*2400	1500*2700
Min.feeding size	mm	400*700
Max.printing size	mm	1500*1900	1500*2100	1500*2300	1500*2600
Color accuracy	mm	double-color*0.5 three-color±0.6 four-color±0.75
Min.slotting distance	mm	29060290*60
Max.slotting depth	mm	350
Fitting die cutting cardboard thickness		3-7ply(slotting fitting cardboard thickness 3,5,7 Ply)
