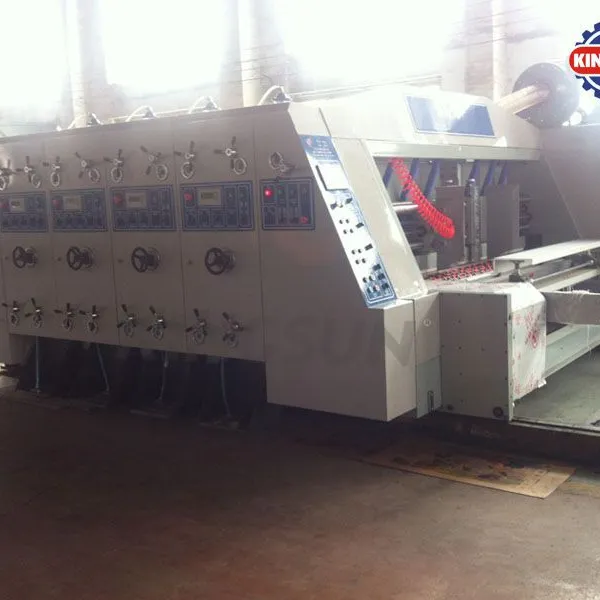

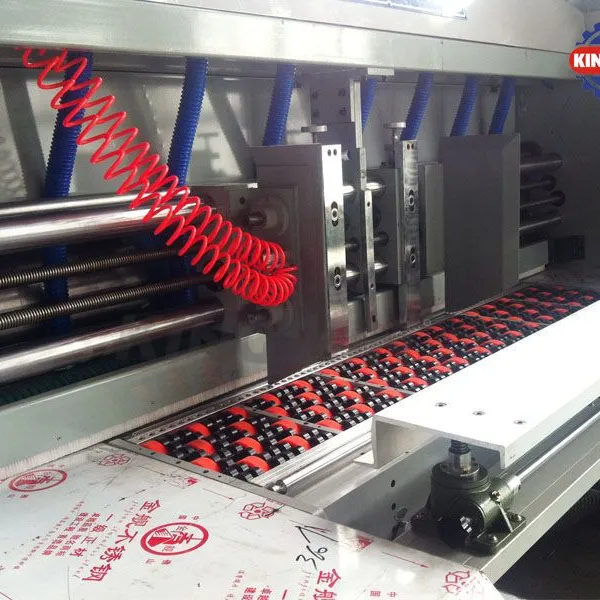

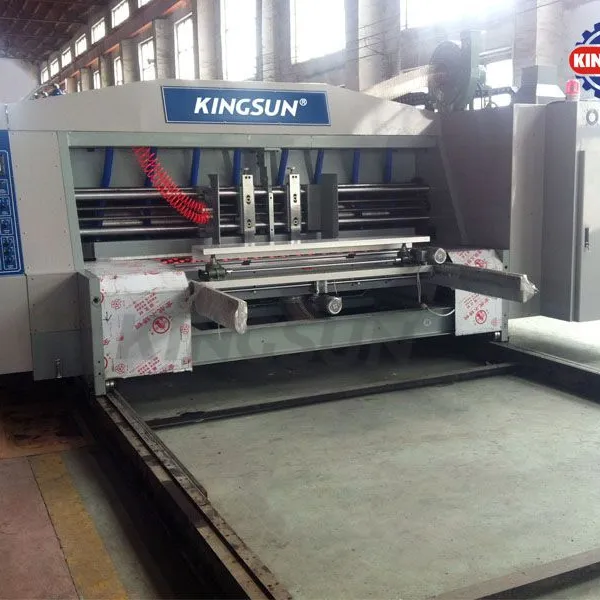

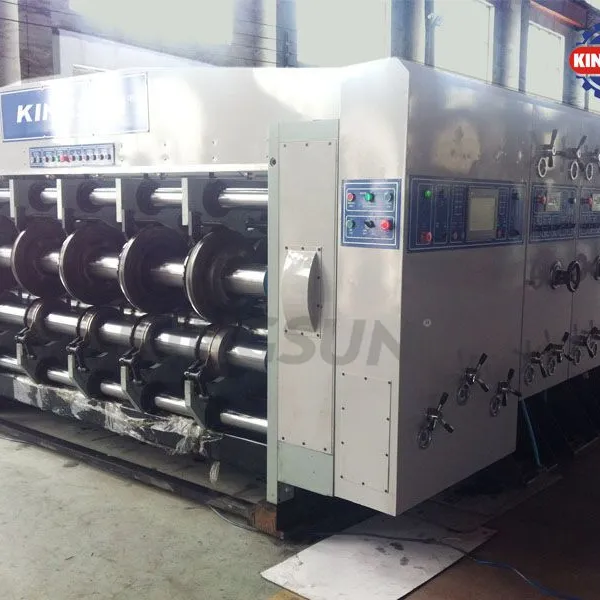

ZYK High Speed Flexo Printer Slotters And In Line Die-Cutters

Name: ZYK High Speed Flexo Printer Slotters And In Line Die-Cutters
Brand: KINGSUN
SKU: 170701477
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

KINGSUN

Place of Origin:

China

Model Number:

ZYK

Wenzhou Kingsun Machinery Industrial Co.,ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo, China

Delivery Detail:

40 days

Brand Name KINGSUN

Place of Origin China

Model Number ZYK

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Voltage 380V

Usage Paper Printer

Condition New

Automatic Grade Automatic

Color & Page Multicolor

ZYK High Speed Flexo Printer Slotters And In Line Die-Cutters

Functions and features:

1.This machine is composed by feeder,printer,slotter,die cutter,stacker five components.

2. Feeder has lead edge feeder or kick feeder.

3.Equipped with high-pressure vacuuming device,can sweep off scraps of paper and impurities on the printing face of cardboard

4.Transmission gear use good quality alloy steel,after carburizing and quenching,use spray lubrication and oil way balance system.

5.Use spray lubrication and oil line balanced system.

6.Use PLC touch screen multifunction controller.Host machine,fan,phase motor and so on are using frequency conversion control.

7.Slotting unit is electric adjusting each part sizes of the carton box.

8.Stacker unit front pneumatic go up and down,back photoelectric tracking,auto going up.

Main technical parameter:

Parameter name	Unit	Size
		ZYK1270*2100	ZYK1270*2500	ZYK1270*2800	ZYK1570*2500		ZYK1570*2800
Economic speed	pieces/min	110			100
Max.feeding size	mm	1270*2200	1270*2600	1270*2900	1500*2600		1500*2900
Min.feeding size	mm	350*650			400*700
Skip feeding	mm	1500*2200	1500*2600	1500*2900	1650*2600		1650*2900
Max.printing size	mm	1200*1200	1200*2500	1200*2800	1500*2500		1500*2800
Color accuracy	mm	double-color*0.35 three-color±0.5 four-color±0.75
Standard printing plate thickness	mm	7.2
Min.slotting distance	mm	29060290*60
Max.slotting depth	mm	300				220
Printing roller axial adjustment	mm	±7
Fitting die cutting cardboard thickness		3-5ply(slotting fitting cardboard thickness 3,5,7 Ply)
