KZJ-120D Model Paper Edge Protector Machine

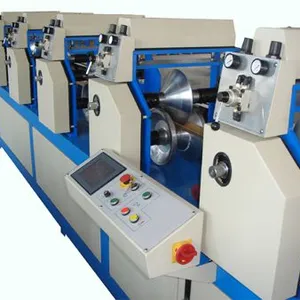

KZJ-120D Model Paper Edge Protector Machine photo-1

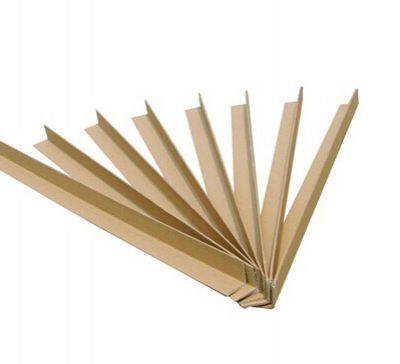

KZJ-120D Model Paper Edge Protector Machine photo-2

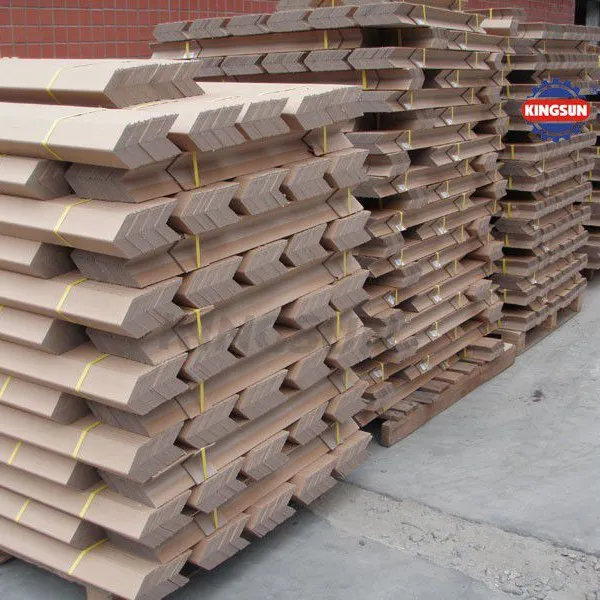

KZJ-120D Model Paper Edge Protector Machine photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
KINGSUN
Place of Origin:
China
Model Number:
KZJ-120D
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo, China
Delivery Detail:
40 days
Brand Name KINGSUN
Place of Origin China
Model Number KZJ-120D
After-sales Service Provided Engineers available to service machinery overseas
Condition New

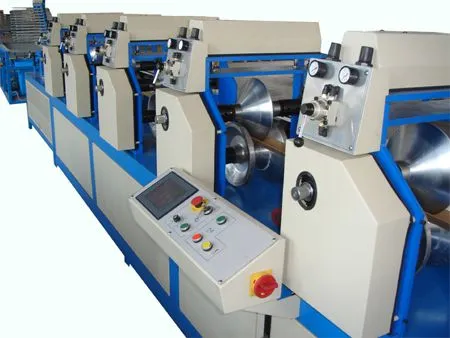

KZJ-120D Model Paper Edge Protector Machine


Features:
1.Coaxial transmission. All transmission parts were strictly with heat treatment so can run smoothly.
2.The double hydraulic pressure cutting system,adopted two cylinder pressure regulation,the drive gear use excellent quality material and fine workmanship.
3.Double hydraulic cutting system for transmission. All transmission gears are abraded and pared of high quality material after heat  treatment.
4.Touch screen and servo system control the operation, cutting precision is ±1mm.
5.Automatic alarm system show the fault position, guarantee safe operation.
6.With output counting for every shift and total volume, no need for manual counting.
7.Convenient to change different mould.
8.Automatic glue feeding with glue quantity setting.



Technical specification:
1. Edge Protector size:25mm-120mm
2. Production speed: 0-25m/min, Economic speed:20m/min
3. Cut off precision:±1mm
4. Max.quantity of layer: 13 layer
5. Applicable paper:surface paper 200-250gsm(kraft) and inner paper: 420-520gsm
6. Power supply: 9.5kw
7. Dimensions: 23000(length)×980(width)×1600(heigh)
8. Power of electric heating for glue: 3KW
9. Total weight:5000 kg
Product Tags: paper edge protector , paper edge protector machine
