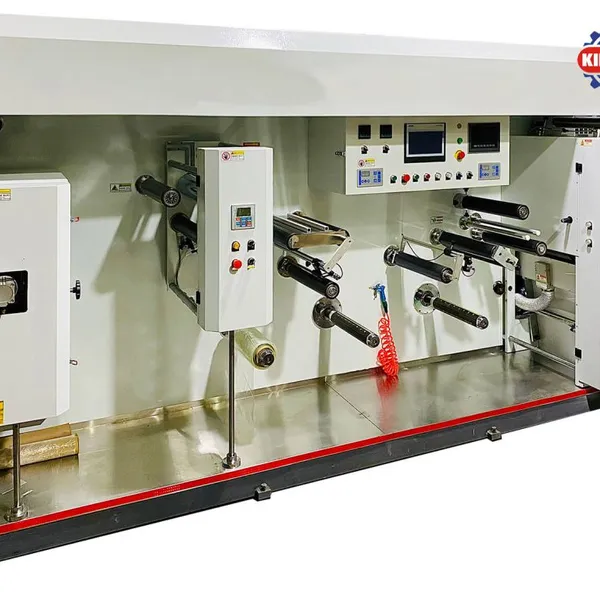

KJUV-450 Model Security Optical Film Imprint Machine
TFT-LED film, brightening film, diffusion film, optical film, hard coating, ITO scratch- resistant protective film, cell phone scratch- resistant protective film,
PC/PP scratch- resistant protective film, SOLAR cell/sensitized material coating, UV oxidation resistant coating, condensation film, LED lighting/ brightening film,
anti-dazzle film, lens film (Note: this is one of those machines to produce the materials listed above).
Main features:
Suitable for embossing with nickel shim and roller plate; whole machine with HMI + PLC + servo controlled; UV curing system well saves the labor cost and resource cost;
quick to exchange the roller plate, applied to different materials, resulted in a high bright and lens effect, stable to constant embossing, no wrinkle and it is highly efficient.
Main technical processes:
Unwinding
Photo polymerization adhesion
Optical embossing
UV curing
Rewinding
Main units:
Main machine body system
Traction system
Pneumatic system
Unwinding & rewinding system
Cooling system
Intelligent control system
Photo polymerization, UV curing system
Forming system
Driving system
Main technical specifications:
Item |
Basic technical data |
Embossing width |
450mm |
Max unwinding rewinding diameter |
600mm |
Max embossing speed |
5～20m/min |
Power |
10KW |
Plate roller diameter |
￠140～250 |
UV curing |
8KVA |
Voltage |
380 |
Weight |
4T |
Dimensions |
400 x 150 x 220 cm (L x W x H) |
Pressure |
0.4MPA |
Material thickness |
20～200u |
Coating method |
Anilox roller |
