Home > Products > foot pedal valve > 1/4 inch K series 5/2 way K23R7-L6 K23R7-L8 air control pneumatic foot pedal valve

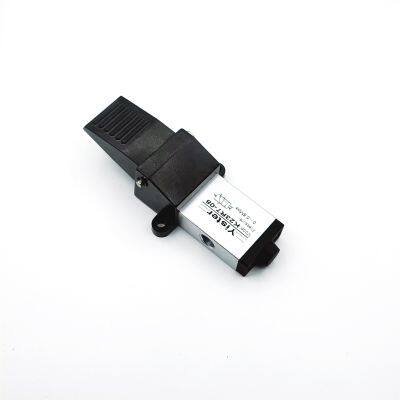

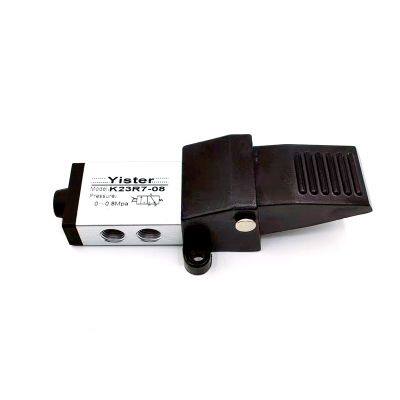

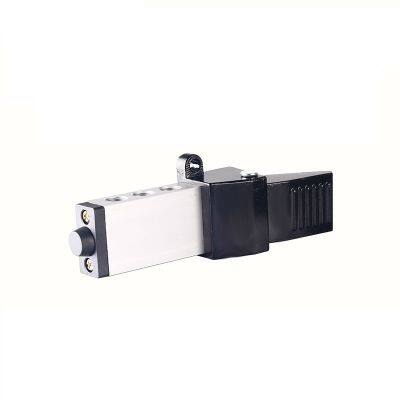

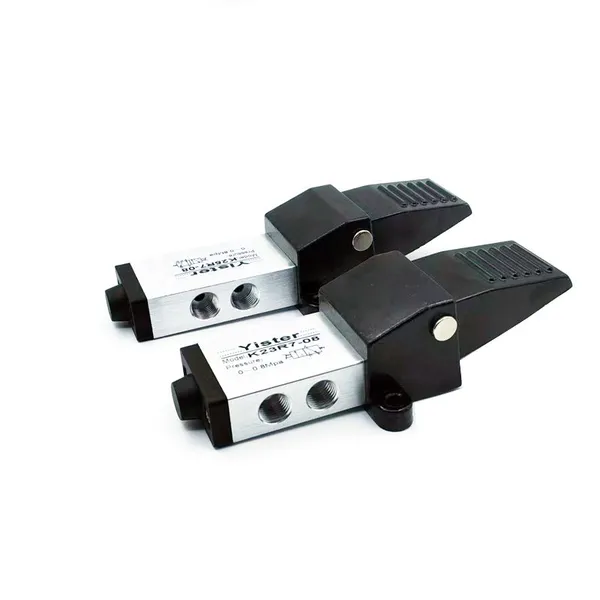

1/4 inch K series 5/2 way K23R7-L6 K23R7-L8 air control pneumatic foot pedal valve
- 20000 Piece / Pieces per Month
- NINGBO OR SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 2 days
- 5 way 2 position K25R7 Pneumatic Machinery Pressure Control switch foot valve
- Airtac type 3v210-08-NC 24v Air control 3 way directional pneumatic Solenoid Valve
- SMC type VM130-01-32 Flat Type 3 Way Manual control Mechanical Valves
- 1/8" Emergency Stop push button air valve Mechanically actuated pneumatic valve
- 2 position 3 way hand manual valve rotary selector knob pneumatic air mechanical valve
- 1/8" thread 3 way 2 position Basic Roller Lever Pneumatic Mechanical Valve VM131-01-01/02
Product Details
Brand Name: | Yister | Place of Origin: | China | Model Number: | K23R7-L6 ,K23R7-L8 |
Material: | Alloy | Application: | Other, foot operated air valve | Structure: | Other, foot pedal valve |
Standard or Nonstandard: | Standard | Pressure: | Medium Pressure | Power: | Pneumatic |
Port Size: | G1/4 | Media: | Other, foot-operated valve | Temperature of Media: | Medium Temperature |
Product Description
1/4 inch K series 5/2 way K23R7-L6 K23R7-L8 air control pneumatic foot pedal valve
Order code
Symbol
Technical parameter
Model No | K23R7-L6 | K25R7-L6 | K23R7-L8 | K25R7-L8 | |
Fluid | Air | ||||
Port size | 06:G1/8” | 08:G1/4” | |||
Valve type | 3/2 way | 5/2 way | |||
Pressure range | 0.05~0.8Mpa | ||||
Temperature | -5~50℃ | ||||
Net sectional area | 10mm² | ||||
Leakage rate | ≤50cm²/min |
Dimension
Feature
.K23R7 aluminum foot pedal valve is designed with direct acting, which is steady and reliable;
.If the duration of direction-change is long, the valves with lock may be used;
.The clamping framework is steady and reliable that it is easy and quick to unlock. However, with the limitation of the dimension of structure, it can not bear frequent strong impact;
.Plastic guard with high strength may be used.
