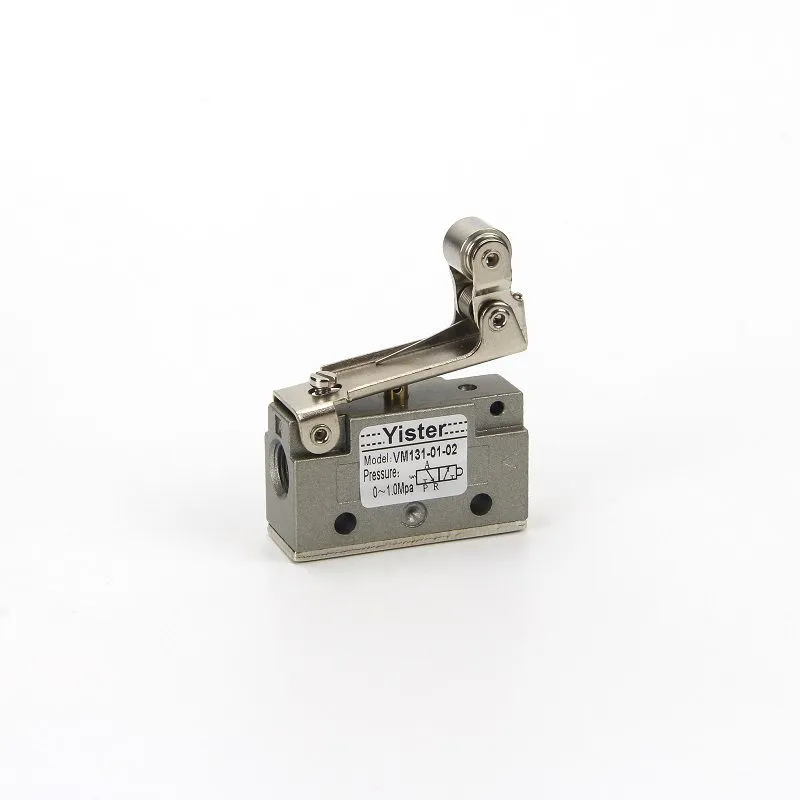

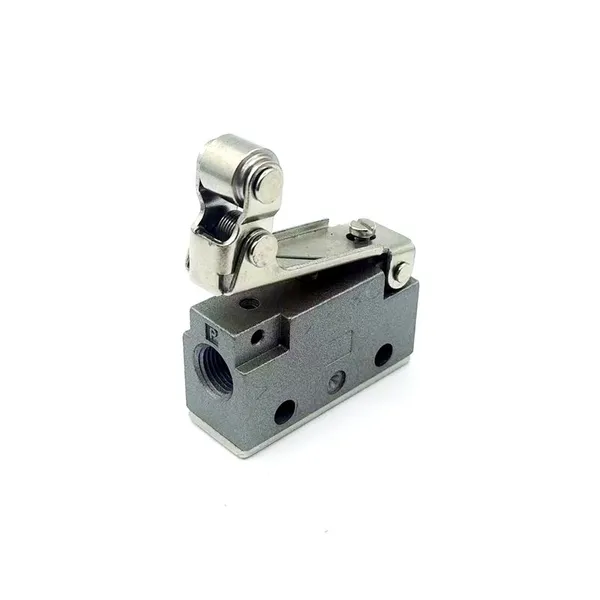

1/8 inch 3 way VM130-01-02 One side Pneumatic Roller Type Mechanical Valves
Order code
Symbol
Technical parameter
Model |
VM130-01-01,VM130-01-02 |
Material |
Aluminum alloy |
Fluid |
Air,Inert gas |
Pressure range |
0-1.0 Mpa |
Proof pressure |
1.5Mpa |
temperature |
-5 to 60℃ |
Cv value |
2.5mm2 |
Port size |
G1/8:(Side ported) M5*0.8(Bottom ported) |
Lubrication |
Not required |
Dimension
Feature
1)Working media: 40um filtered air
2)Joint pipe bore: G1/4 3/8 1/2
3) Operating pressure: 0-0.8Mpa
4) Operating temperature: 0-60oC

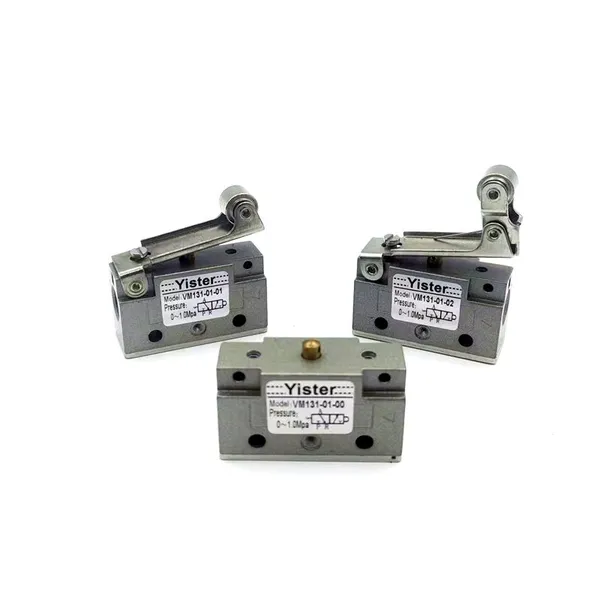

5)VM131-01-01/02 Pneumatic Roller lever mechanical valve
VM130-01-34 Rotary type with selective knob button
VM130-01-33 Spring reset type with Flat round button
VM130-01-37 with Lock button
VM131-01-01 roller lever valve
FAQ
1. Q:How to make the payment?
A: We accept BankT/T,Western Union,Paypal,or L/C.
2.Q: How Will You Make the Shipment?
A.Sea Shipment by Pallet Packing.
B.Air.
C.Express Service.
3 Q: Do you test all your VM131-01-02 Pneumatic roller lever mechanical valve before delivery?
A: Yes, we have 100% test before delivery.
