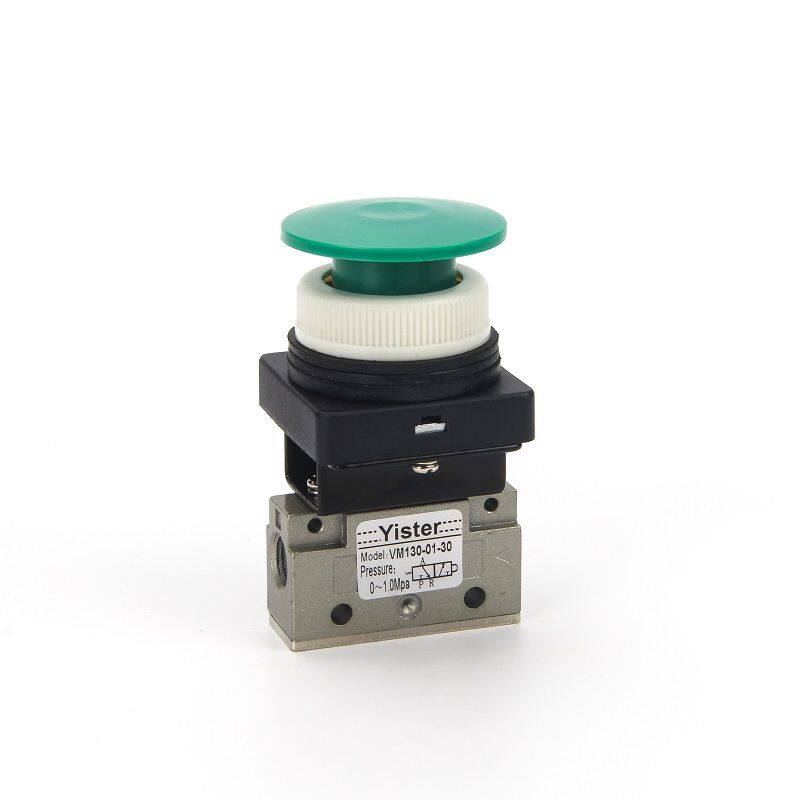

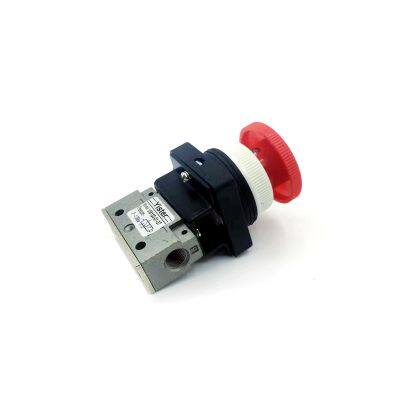

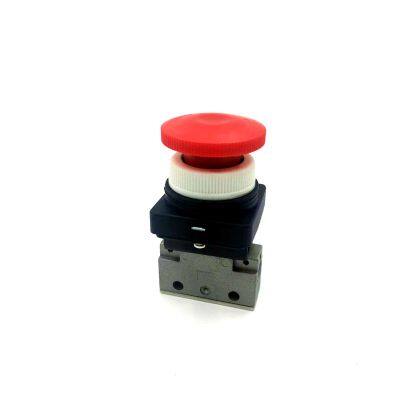

3 way green/yellow/black/red mushroom-head push button type spring return air mechanical valve VM130-01-30
Order code
Symbol
Technical parameter
Model | VM130-01-30 Button mechanical valves |
Head color | Red/Green/Yellow/Black |
Fluid | Air,Inert gas |
Pressure range | 0-1.0 Mpa |
Proof pressure | 1.5Mpa |
temperature | -5 to 60℃ |
Cv value | 2.5mm2 |
Port size | G1/8:(Side ported) M5*0.8(Bottom ported) |
Lubrication | Not required |
Dimension
Feature
1)Working media: 40um filtered air
2)Joint pipe bore: G1/4 3/8 1/2
3) Operating pressure: 0-0.8Mpa
4) Operating temperature: 0-60oC
5)Operation type:Spring return push button type pneumatic mechanical valve
FAQ
1. Q:How to make the payment?
A: We accept BankT/T,Western Union,Paypal,or L/C.
2.Q: How Will You Make the Shipment?
A.Sea Shipment by Pallet Packing.
B.Air.
C.Express Service.
3 Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
4.Q:Which colors could be chosen for push-button type pneumatic manual mechanical valve ?
A:Head color:Red,Green,Black ,Yellow
