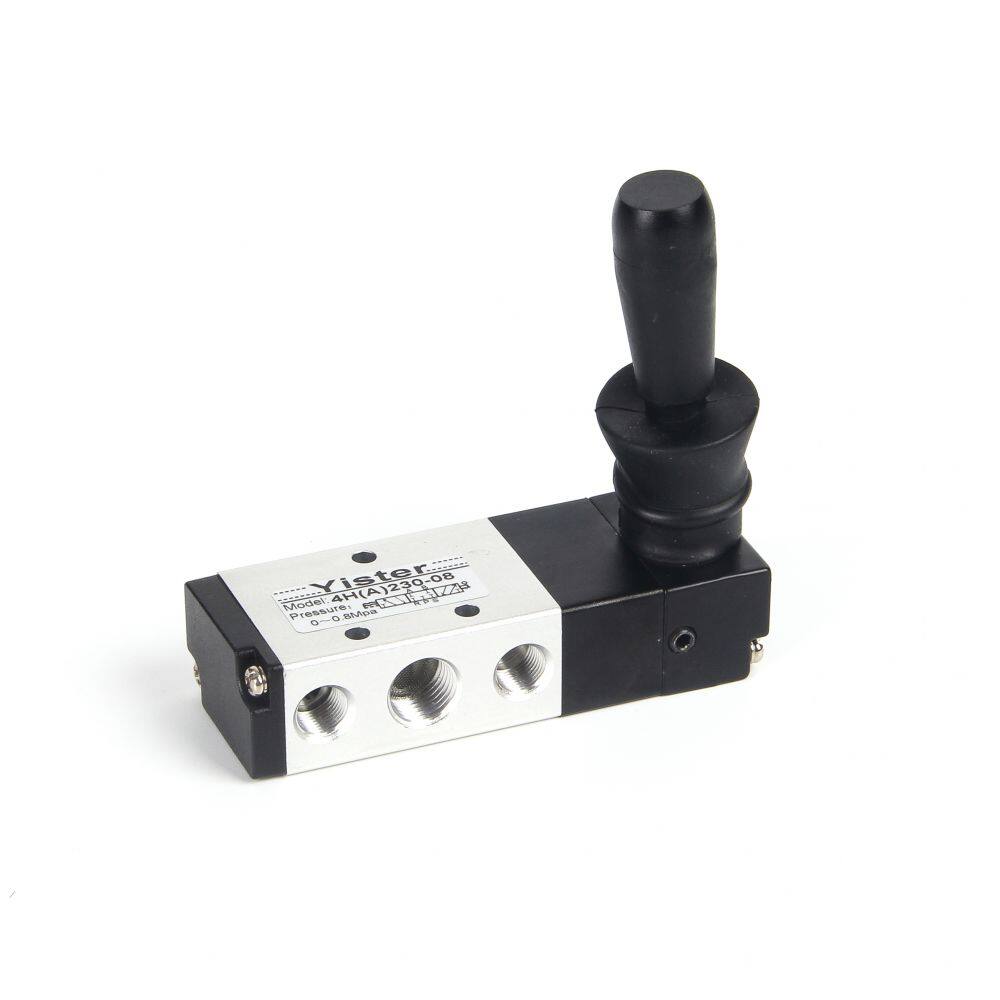

5 Postion 2 way G1/4 inch Hand Manual Control Pneumatic Hand Lever Operated Pull Push Solenoid Valve with lock or spring return
Order code for pneumatic hand valve
Symbol for hand push pull valve
Technical parameter
Model |
4H210-06 4HA210-06 (spring return) |
4H230-06 4HA230-06 (spring return) |
4H210-08 4HA210-08 (spring return) |
4H230-08 4HA230-08 (spring return) |
4H310-08 4HA310-08 (spring return) |
4H330-08 4HA330-08 (spring return) |
4H310-10 4HA310-10 (spring return) |
4H330-10 4HA330-10 (spring return) |
Fluid |
Air |
|||||||
Acting |
Manual control direct acting type hand valve |
|||||||
Valve type |
5/2 way |
5/3 way |
5/2 way |
5/3 way |
5/2 way |
5/3 way |
5/2 way |
5/3 way |
Orifice size |
14.0mm2 |
12.0mm2 |
16.0mm2 |
12.0mm2 |
25.0mm2 |
18.0mm2 |
30.0mm2 |
18.0mm2 |
Lubrication |
No required |
|||||||
Port size |
In=out=Exhaust=G1/8” |
In=out=G1/4” Exhaust=G1/8” |
In=out=Exhaust=G1/4” |
In=out=G3/8” Exhaust=G1/4” |
||||
Protective class |
IP65 |
|||||||
Pressure range |
0-0.8MPa |
|||||||
Proof pressure |
1.2MPa |
|||||||
Material of body |
Aluminum Alloy |
|||||||
Temperature |
-20℃~60℃ |
|||||||
Operating angle |
±15° |
±8.5° |
±15° |
±8.5° |
±18° |
±10° |
±18° |
±10° |
Dimension：
Item no |
A |
AB |
AC |
B |
C |
CA |
D |
K |
KA |
KB |
P |
PA |
Q |
QA |
QB |
QC |
θ |
4H210-06 |
81.5 |
69.5 |
57.5 |
35 |
90 |
22 |
18 |
4.3 |
20 |
23.5 |
G1/8” |
36 |
G1/8” |
18 |
- |
32.5 |
15 |
4H210-08 |
81.5 |
69.5 |
57.5 |
35 |
90 |
22 |
18 |
4.3 |
20 |
23.5 |
G1/8” |
36 |
G1/4” |
21 |
1.5 |
32.5 |
15 |
4H310-08 |
101 |
87 |
73 |
40 |
93.5 |
27 |
18 |
4.3 |
24 |
27.5 |
G1/4” |
45 |
G1/4” |
22 |
- |
40.5 |
18 |
4H310-10 |
101 |
87 |
73 |
40 |
93.5 |
27 |
18 |
4.3 |
24 |
27.5 |
G1/4” |
45 |
G38/” |
24 |
2 |
40.5 |
18 |
Item no |
A |
AB |
AC |
B |
C |
CA |
D |
K |
KA |
KB |
P |
PA |
Q |
QA |
QB |
QC |
θ |
|
4H230C-06 4H230E-06 |
81.5 |
69.5 |
57.5 |
35 |
90.5 |
22 |
18 |
4.3 |
20 |
23.5 |
G1/8” |
36 |
G1/8” |
18 |
- |
32.5 |
8.5 |
|
4H230C-08 4H230E-08 |
81.5 |
69.5 |
57.5 |
35 |
90.5 |
22 |
18 |
4.3 |
20 |
23.5 |
G1/8” |
36 |
G1/4” |
21 |
1.5 |
32.5 |
8.8 |
|
4H330C-08 4H330E-08 |
101 |
87 |
73 |
40 |
94 |
27 |
18 |
4.3 |
24 |
27.5 |
G1/4” |
45 |
G1/4” |
22 |
- |
40.5 |
10 |
|
4H330C-10 4H330E-10 |
101 |
87 |
73 |
40 |
94 |
27 |
18 |
4.3 |
24 |
27.5 |
G1/4” |
45 |
G38/” |
24 |
2 |
40.5 |
10 |
Feature
4H210 4H230 hand return directional control hand operated valve is 5 port hand valve
.with high response and stability nature.
.There are two motion pattern, single-head double-position and single-head three position.
.5/2way hand valve and 5/3 way manual valve are available.
.4H210 hand lever valve is Manual return operated valve and 4HA210 pneumatic solenoid valve is spring retun hand control valve
4H230C:5/3 way closed center hand pull valve
4H230E: 5/3 way exhaust center hand operated valve
4H230P:5/3 way pressure center pneumatic hand control valve
.Pneumatic control valve is the pneumatic system to control the flow of air pressure, flow and flow direction, and ensures the normal work of pneumatic actuator components or institutions of all kinds of pneumatic components.
Company information：
Yister Electric Co., Ltd. specialized in manufacturing pneumatic products. The company adopts international advanced production technology and scientific management methods, and all products realize computer-aided design and production management. The key components are imported from Europe and the United States. The main performance indicators of the products have reached the international advanced level.
The products produced by our company are of high quality, reliable performance, good versatility, wide variety and complete specifications. The main products are multiple series of pneumatic actuators, control components, auxiliary components, pneumatic machinery and pneumatic complete systems.
Packing&Shipping
FAQ
1.Q:If i have my thoughts, do you design and customize according to my requirement?
A: Certainly,our design team is willing to do for you.
2.Q. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
3. Q:How to make the payment?
A: We accept BankT/T,Western Union,Paypal,or L/C.
4.Q: How Will You Make the Shipment?
A.Sea Shipment by Pallet Packing.
B.Air.
C.Express Service.
5 Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.3
