4H210-06 5 way 1/8 inch air control valve manual pneumatic reset hand lever valve

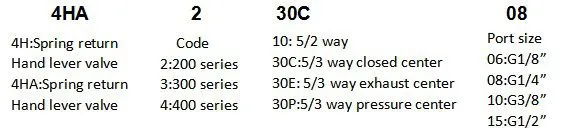

Order code for 4HA210-06 hand control valve
Symbol for Air control valve
Technical parameter
Model |
4H210-06 4HA210-06 |
4H230-06 4HA230-06 |
4H210-08 4HA210-08 |
4H230-08 4HA230-08 |
4H310-08 4HA310-08 |
4H330-08 4HA330-08 |
4H310-10 4HA310-10 |
4H330-10 |
4HA330-10 |
||
Fluid |
Air |
||||||||||
Acting |
Manual control direct acting type |
||||||||||
Valve type |
5/2 way |
5/3 way |
5/2 way |
5/3 way |
5/2 way |
5/3 way |
5/2 way |
5/3 way |
5/3 way |
||
Orifice size |
14.0mm2 |
12.0mm2 |
16.0mm2 |
12.0mm2 |
25.0mm2 |
18.0mm2 |
30.0mm2 |
18.0mm2 |
18.0mm2 |
||
Lubrication |
No required |
||||||||||
Port size |
In=out=Exhaust=G1/8” |
In=out=G1/4” Exhaust=G1/8” |
In=out=Exhaust=G1/4” |
In=out=G3/8” Exhaust=G1/4” |
In=out=G3/8” Exhaust=G1/4” |
||||||
Protective class |
IP65 |
||||||||||
Pressure range |
0-0.8MPa |
||||||||||
Proof pressure |
1.2MPa |
||||||||||
Material of body |
Aluminum Alloy |
||||||||||
Temperature |
-20℃~60℃ |
||||||||||
Operating angle |
±15° |
±8.5° |
±15° |
±8.5° |
±18° |
±10° |
±18° |
±10° |
±10° | ||

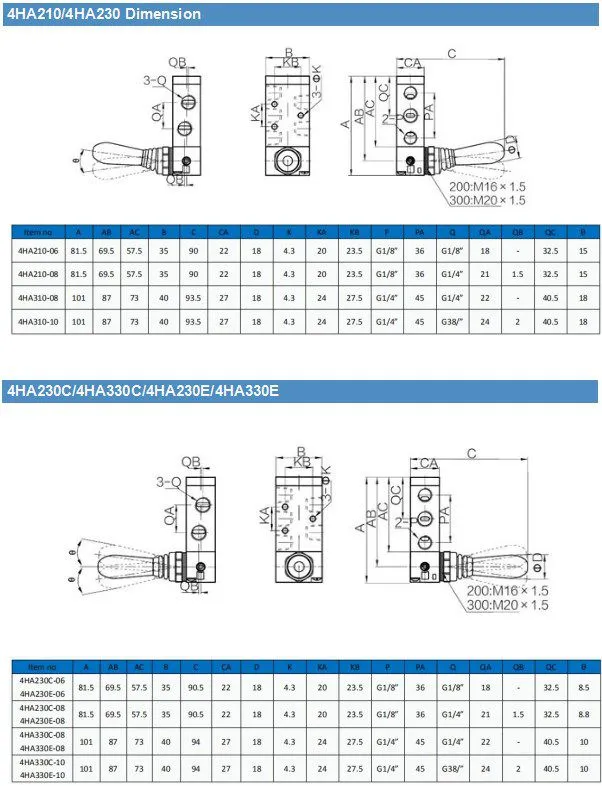

Dimension：
Feature
. 4H210-06 5 way 1/8 inch air control valve manual pneumatic reset hand lever valve is controlled by manually, center closed type is available, valve body size have many sizes, different superficial treatments are available
. Manual operated
. Smooth and reliable performance
.Low friction manufacturing technology increasing life
. No lubrication required
.Easy panel mounting
.Various working styles are available
Company information：
Yister specialized in manufacturing pneumatic hand control lever valve. Our company adopts international advanced production technology and scientific management methods, and all products realize computer-aided design and production management. The key components are imported from Europe and the United States. The main performance indicators of the products have reached the international advanced level.
The products produced by our company are of high quality, reliable performance, good versatility, wide variety and complete specifications. The main products are multiple series of manual hand control valve ,hand lever valve,1/4 hand valve,air hand valve,etc.
Packing&Shipping
FAQ
1.Q:If i have my thoughts, do you design and customize according to my requirement?
A: Certainly,our design team is willing to do for you.
2.Q. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
3. Q:How to make the payment?
A: We accept BankT/T,Western Union,Paypal,or L/C.
4.Q: How Will You Make the Shipment?
A.Sea Shipment by Pallet Packing.
B.Air.
C.Express Service.
5 Q: Do you test all your hand lever valve before delivery?
A: Yes, we have 100% test for pneumatic control valve before delivery.
