Triple-effect Energy-saving Concentration Tank Concentrator

Triple-effect Energy-saving Concentration Tank Concentrator thumbnail-1
Triple-effect Energy-saving Concentration Tank Concentrator photo-1
US$ 10000 - 50000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
One year after receiving equipment, offer life long after sale service.
Contact Supplier Request Quote Chat Now
Wenzhou Lihong Machinery Technology Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
After-sales Service Provided Engineers available to service machinery overseas
Warranty One year after receiving equipment, offer life long after sale service.
Condition New
Processing Types Other, liquid materials
Product Description

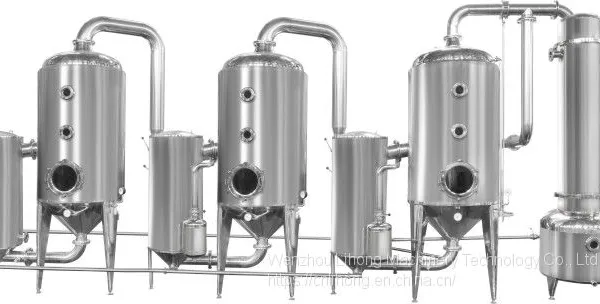

SJN Series Triple-Effect concentration tank

Application: This enricher is suitable for enriching liquid material, it is widely used in industries like Chinese traditional medicine, western medicine, food, dairy, glucose, starch, chemical, etc. It is especially suitable for thermal sensitive products with low temperature vacuum enriching .

Material: SUS304 or SUS316L.

Evaporation capacity: 0.3Ton ~3Ton

Heating way: Steam heating

Low temperature vacuum concentration processing

Finish: Internal surface is mirror polished, external  surface is matt finish.

Standard: meets GMP standard

Technical Parameters:
Item/Spec SJN-500 SJN-1000 SJN-1500 SJN-2000 SJN-3000
Steam pressure   (MPa) 0.09
Distillation capacity(kg/h) 500 1000 1500 2000 3000
Steam consumption(kg/h) 200 400 600 800 1200
Circulation water consumption(t/h) 5 10 13 15 18
Concentrating TEMP-1st effect(ºC) 80-90
Concentrating TEMP-2nd  effect(ºC) 65-80
Concentrating TEMP-3rd  effect(ºC) 55-65
Vacuum degree-1st effect(MPa) -0.04
Vacuum degree-2nd effect(MPa) -0.06
Vacuum degree-3rd  effect(MPa) -0.08

Dimension 		L 5000 6500 7000 7500 7800
W 1300 1500 1700 2000 2000
H 3000 3300 3500 4000 4300
Equipment type Normal Pressure Vessel
