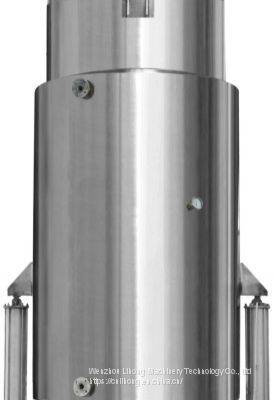

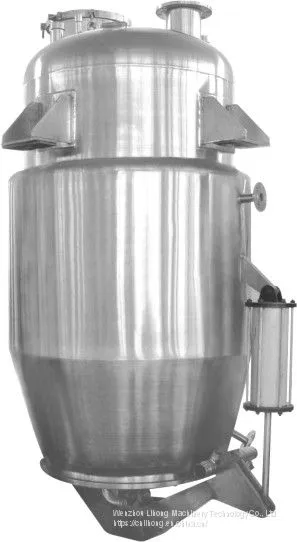

TQ Series Multifunctional Extraction Tank

TQ Series Multifunctional Extraction Tank thumbnail-1
TQ Series Multifunctional Extraction Tank thumbnail-2
TQ Series Multifunctional Extraction Tank photo-1
TQ Series Multifunctional Extraction Tank photo-2
US$ 5000 - 50000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
One year after receiving equipment, offer life long after sale service.
Contact Supplier Request Quote Chat Now
Wenzhou Lihong Machinery Technology Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
After-sales Service Provided Engineers available to service machinery overseas
Warranty One year after receiving equipment, offer life long after sale service.
Condition New
Product Description
TQ Multi-function Extractor

Application: Herb industry, dextrose, dairy industry, liquid food industry

Material: SUS304 or SUS316L

Capacity: 500L ~ 15,000L

Agitator: with or without agitator

Steam heating or electricity heating

Jacket

Rock wool temperature insulation

Finish: Internal Mirror Polish, external Matt

GMP standard
Specification       Model TQ-0.5 TQ-1.0 TQ-2.0 TQ-3.0 TQ-6.0 TQ-8.0
Full capacity(L) 650 1200 2500 3500 6500 8900
Extractor Design pressure(MPa) 0.09
Jacket Design pressure(MPa) 0.3
Inlet diameter(mm) 300 300 400 400 450 500
Heating area(m 2 ) 2.4 3.1 4.2 5.5 7.1 9.5
Condensing area(m 2 ) 3 5 5 8 10 12
Cooling area(m 2 ) 1 1 1 1 1.5 1.5
Filtering area(m 2 ) 0.25 0.25 0.25 0.25 0.5 0.6
Discharging diameter(mm) 800 800 800 800 1000 1200
Consumption(kg/h) 245 325 345 645 720 850
Container class Class I


Product Tags: stainless steel tank , extractor , extraction tank , dairy process , food process , process machinery , process equipment
