Miniature Multifunctional Extraction, Concentration and Recovery Unit Units, Extractor, Concentrator
US$ 10000 - 50000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Type:
Concentrator
After-sales Service Provided:
Engineers available to service machinery overseas
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Reflux Extraction, Concentration and Recovery Unit Units, Extractor, ConcentratorUS$ 10000 - 50000MOQ: 1 Set -
Ultrasonic Miniature Multifunctional Extraction, Concentration and Recovery Unit Units, Extractor, ConcentratorUS$ 10000 - 50000MOQ: 1 Set
-
Stainless Steel Alcohol Recovery TankUS$ 10000 - 50000MOQ: 1 Set
-
Alcohol Precipitation TankUS$ 10000 - 50000MOQ: 1 Set
-
Stainless Steel Percolation Seeping TankUS$ 10000 - 50000MOQ: 1 Set
Place of Origin
China
Type
Concentrator
After-sales Service Provided
Engineers available to service machinery overseas
Application
Liquid
Product Description
Ultrasonic Mini Multi-Functional Extraction, Concentration, Reclamation Set
Energy-saving design
Integrated with 3 functions that simplify the operation processor
Under close and seal condition, no leakage
SUS316L (or SUS304), meeting the GMP standard
Best applied in hospital, university laboratory, pharmaceutical factory and R&D institute and food manufacturer to extract and concentrate the herb and juice.
Energy-saving design
Integrated with 3 functions that simplify the operation processor
Under close and seal condition, no leakage
SUS316L (or SUS304), meeting the GMP standard
Best applied in hospital, university laboratory, pharmaceutical factory and R&D institute and food manufacturer to extract and concentrate the herb and juice.

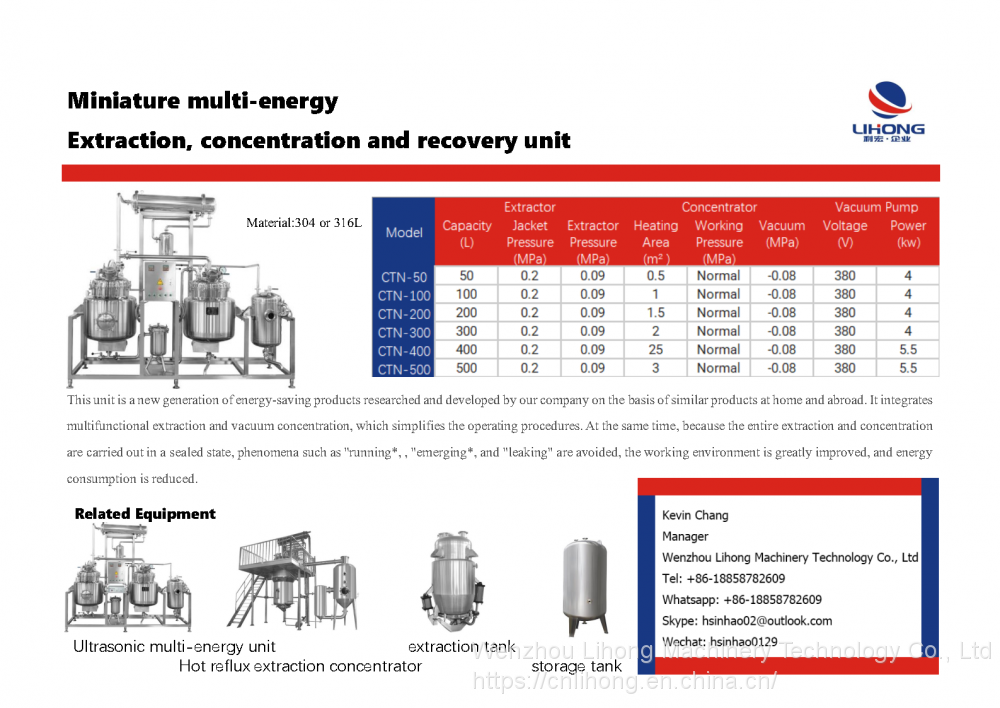

| Model | Extractor | Concentrator | Vacuum Pump | |||||
| Capacity (L) |
Jacket Pressure (MPa) |
Extractor Pressure (MPa) |
Heating Area (m 2 ) |
Working Pressure (MPa) |
Vacuum (MPa) |
Voltage (V) |
Power (kw) |
|
| CTN-50 | 50 | 0.2 | 0.09 | 0.5 | Normal | -0.08 | 380 | 4 |
| CTN-100 | 100 | 0.2 | 0.09 | 1 | Normal | -0.08 | 380 | 4 |
| CTN-200 | 200 | 0.2 | 0.09 | 1.5 | Normal | -0.08 | 380 | 4 |
| CTN-300 | 300 | 0.2 | 0.09 | 2 | Normal | -0.08 | 380 | 4 |
| CTN-400 | 400 | 0.2 | 0.09 | 25 | Normal | -0.08 | 380 | 5.5 |
| CTN-500 | 500 | 0.2 | 0.09 | 3 | Normal | -0.08 | 380 | 5.5 |
