Multifunctional extraction tank(dynamic mixing) extractor

FOB Price

USD $10000 - $50000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port Ningbo
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	China	Certification:	ISO9001, GMP	After-sales Service Provided:	Engineers available to service machinery overseas
Warranty:	One year after receiving equipment, offer life long after sale service.	Condition:	New

Product Description

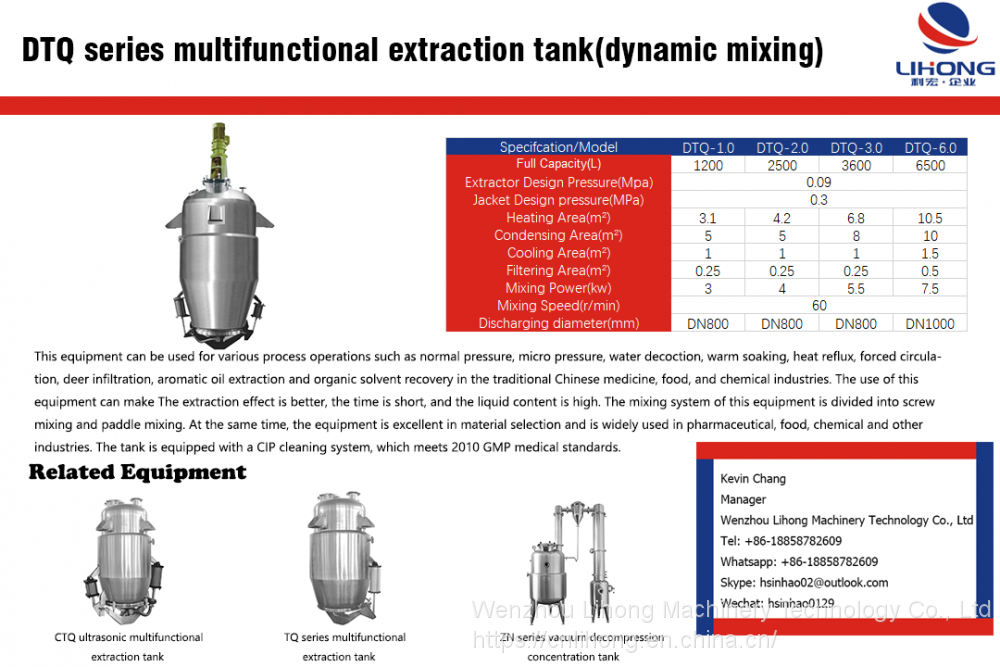

TQ multi-functional extracting tanks

Application: Herb industry, dextrose, dairy industry, liquid food industry

Material: SUS304 or SUS316L

Type: with/without agitator

Capacity: 500L ~ 15000L

Steam heating, or electricity heating

Jacket

Rock wool temperature insulation

Finish: Internal Mirror Polish, external Matt

GMP standard

Specification Model	TQ-0.5	TQ-1.0	TQ-2.0	TQ-3.0	TQ-6.0	TQ-8.0
Full capacity(L)	650	1200	2500	3500	6500	8900
Extractor Design pressure(MPa)	0.09
Jacket Design pressure(MPa)	0.3
Inlet diameter(mm)	300	300	400	400	450	500
Heating area(m 2 )	2.4	3.1	4.2	5.5	7.1	9.5
Condensing area(m 2 )	3	5	5	8	10	12
Cooling area(m 2 )	1	1	1	1	1.5	1.5
Filtering area(m 2 )	0.25	0.25	0.25	0.25	0.5	0.6
Discharging diameter(mm)	800	800	800	800	1000	1200
Consumption(kg/h)	245	325	345	645	720	850
Container class	Class I

Contact Us

Wenzhou Lihong Machinery Technology Co., Ltd: Contact nameKevin Chang; Address168, Houzhang Road, Longwan disctrict Wenzhou,Zhejiang
