0.5/1/1.5/2 Ton Small Capacity Wood Pellet Fired Steam Boiler For Sugar Mill

0.5/1/1.5/2 Ton Small Capacity Wood Pellet Fired Steam Boiler For Sugar Mill photo-1

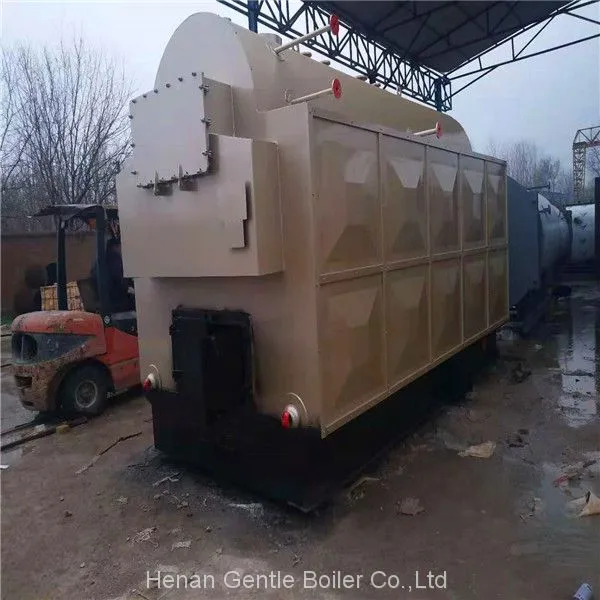

0.5/1/1.5/2 Ton Small Capacity Wood Pellet Fired Steam Boiler For Sugar Mill photo-2

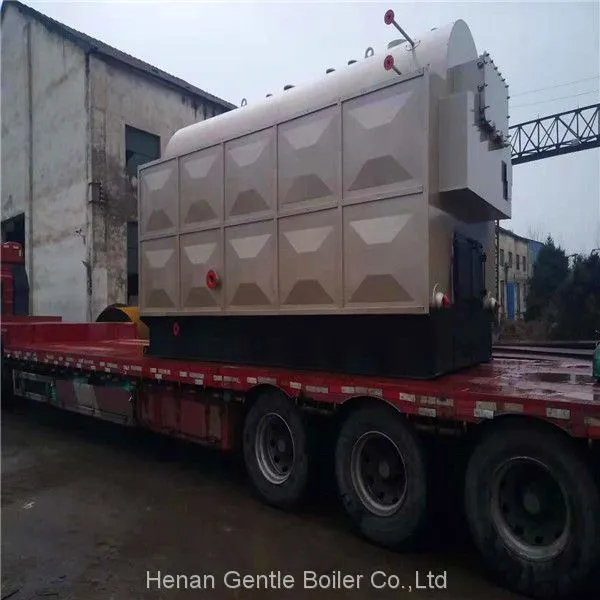

0.5/1/1.5/2 Ton Small Capacity Wood Pellet Fired Steam Boiler For Sugar Mill photo-3
US$ 13500 - 15000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
wood steam boiler
Place of Origin:
China
Model Number:
DZH1-1.0
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or Shanghai
Delivery Detail:
7 days
Brand Name wood steam boiler
Place of Origin China
Model Number DZH1-1.0
Certification CE
Type Natural Circulation
After-sales Service Provided Engineers available to service machinery overseas
Weight 12ton
Dimension(L*W*H) 4100*2200*2900
Condition New
Style Horizontal
Fuel Coal-fired
Usage Industrial
Output Steam
Structure Fire Tube
Pressure Low Pressure

0.5/1/1.5/2 Ton small capacity Wood Pellet Fired Steam Boiler For Sugar Mill


Boiler Product Description

DZH series boiler is the single drum longitudinal type water and fire tube shell water boiler, the burning equipment is the moving grate.

Technical specification

Boiler Model
DZH1-1.25
DZH2-1.25
DZH4-1.25
Steam output (t/h)
1.0
2.0
2.0
working pressure (Mpa)
1.25
1.25
1.6
steam temperature
(℃)
193
193
204
Feed water temperature
(℃)
20
20
20
heat exchange area
(㎡)
25.7
8.409
8.44
Available fuel
BMF
design thermal efficiency
78.59 %
74.88%
79%
exhaust smoke temperature
(℃)
151.9
168.7
151.4
Transport size (L*W*H)
5.1 x 2.25 x 3.05m
5.05 x 2.5 x 3.2m
5.5 x 2.8 x 3.4 m
Main Features

1. Moving grate made of cast iron, large furnace design, manual stoker, good applicability of fuel, coal, wood, wood waste, biomass, etc. can be used as fuel.

2. Few moving parts, less investment, low operating costs, low maintenance costs.

3. Forced ventilation, pressure boost fast to make sure enough output.

4. Compact structure, easy to install, reducing the cost of the boiler room and installation cost.

5. Single drum design big water volume, ability to adapt to changes in load.

6. Sufficient combustion, large heating surface, adopt efficient threaded pipe, thermal efficiency higher than the national standard.

For wood steam boiler, we mainly manufacture and supply 1ton/h  2ton /h and 4ton/h with 7bar 10bar 13bar and boiler pressure. our boilers have advantages of high thermal efficiency, energy saving, safety reliable and fully automatic control, and sell well at home and abroad.for foreign market, like Sri Lanka, Bangladesh, Philippines, Vietnam, Laos, Cambodia, India, and other countries.
