Round-regulating Electric Screen Butterfly Valve
US$ 1 - 1000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
DBD-0.05
Material:
Casting
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
20 days
Related Products
-
Rectangula Screen-regulating Electric Butterfly ValveUS$ 1 - 1000MOQ: 1 Set -
American Standard Folder Connection Metal Seal Butterfly ValveUS$ 1 - 1000MOQ: 1 Set
-
Signal Butterfly ValveUS$ 1 - 1000MOQ: 1 Set
-
Centerline of Folder-like Soft Seal Butterfly ValveUS$ 1 - 1000MOQ: 1 Set
-
Soft-Seal Butterfly ValveUS$ 1 - 1000MOQ: 1 Set
Place of Origin
China
Model Number
DBD-0.05
Material
Casting
Application
General
Structure
Butterfly
Standard or Nonstandard
Standard
Pressure
High Pressure
Power
Pneumatic
Media
Base
Temperature of Media
Medium Temperature
Round-regulating electric screen butterfly valve

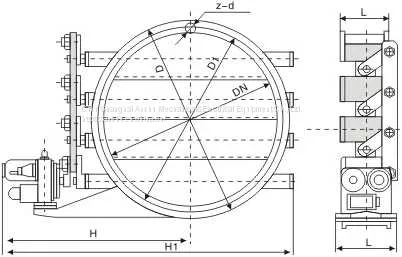

DBD-0.05 Connecting size
| DN | D1 | D | L | L1 | H1 | H | b | Z-Φd | number of axes | Actuator | Wt/Kgs |
| 500 | 555 | 600 | 220 | 300 | 900 | 1270 | 8 | 20-18 | 3 | DK-310 | 594 |
| 600 | 655 | 700 | 220 | 300 | 950 | 1370 | 10 | 20-18 | 3 | DK-310 | 629 |
| 700 | 755 | 800 | 240 | 300 | 1000 | 1470 | 10 | 20-18 | 3 | DK-310 | 721 |
| 800 | 870 | 930 | 240 | 365 | 1120 | 1640 | 10 | 24-23 | 3 | DK-410 | 813 |
| 900 | 970 | 1030 | 260 | 365 | 1170 | 1740 | 12 | 24-23 | 3 | DK-410 | 905 |
| 1000 | 1070 | 1130 | 260 | 365 | 1220 | 1840 | 12 | 28-23 | 3 | DK-410 | 1000 |
| 1120 | 1190 | 1250 | 280 | 420 | 1430 | 2110 | 12 | 28-23 | 4 | DK-510 | 1080 |
| 1250 | 1320 | 1380 | 280 | 420 | 1495 | 2240 | 14 | 32-23 | 4 | DK-510 | 1370 |
| 1400 | 1470 | 1530 | 300 | 420 | 1570 | 2390 | 14 | 36-23 | 4 | DK-510 | 1566 |
| 1600 | 1670 | 1730 | 320 | 450 | 1745 | 2660 | 14 | 40-23 | 4 | DK-610A | 1951 |
| 1800 | 1870 | 1930 | 340 | 450 | 1845 | 2860 | 16 | 44-23 | 4 | DK-610A | 2340 |
| 2000 | 2070 | 2130 | 360 | 450 | 1945 | 3060 | 16 | 48-23 | 4 | DK-610A | 2730 |
| 2240 | 2310 | 2370 | 380 | 480 | 2095 | 3330 | 18 | 48-23 | 4 | DK-610 | 3075 |
| 2500 | 2570 | 2630 | 420 | 480 | 2225 | 3590 | 18 | 52-23 | 5 | DK-610 | 3634 |
| 2800 | 2870 | 2930 | 440 | 480 | 2375 | 3890 | 18 | 60-23 | 5 | DK-610 | 4226 |
| 3000 | 3070 | 3130 | 460 | 480 | 2475 | 4090 | 18 | 60-23 | 5 | DK-610 | 4735 |
