TEE Ball Valves

TEE Ball Valves thumbnail-1
TEE Ball Valves thumbnail-2
TEE Ball Valves thumbnail-3

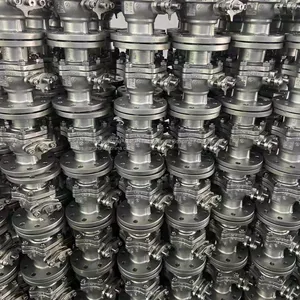

TEE Ball Valves thumbnail-4

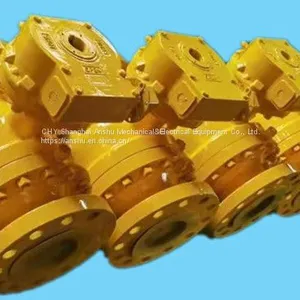

TEE Ball Valves thumbnail-5
TEE Ball Valves photo-1

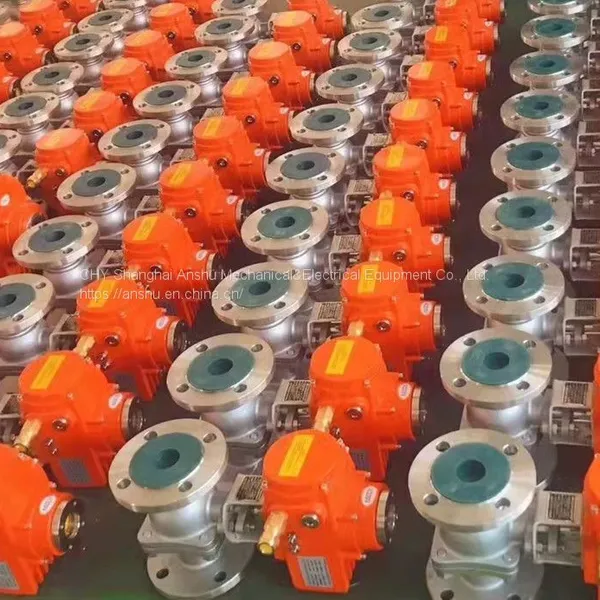

TEE Ball Valves photo-2

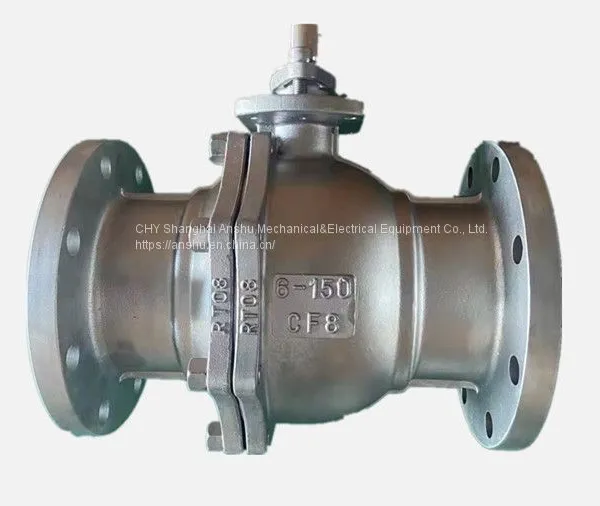

TEE Ball Valves photo-3

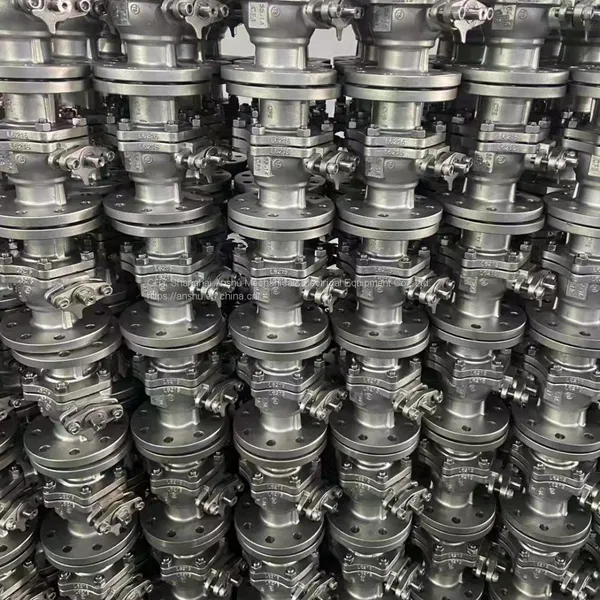

TEE Ball Valves photo-4

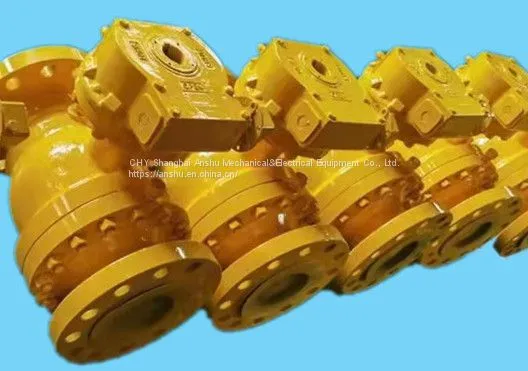

TEE Ball Valves photo-5
US$ 1 - 1000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
Q44F-16C Q44F-16P Q644F-16C Q644F-16P Q944F-16C Q944F-16P Q45F-16C Q45F-16P Q645F-16C Q645F-16P Q945F-16C Q945F-16P
Material:
Casting
Contact Supplier Request Quote Chat Now
CHY Shanghai Anshu Mechanical&Electrical Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
20 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number Q44F-16C Q44F-16P Q644F-16C Q644F-16P Q944F-16C Q944F-16P Q45F-16C Q45F-16P Q645F-16C Q645F-16P Q945F-16C Q945F-16P
Material Casting
Application General
Structure Ball
Standard or Nonstandard Standard
Pressure High Pressure
Power Pneumatic
Media Base
Temperature of Media Medium Temperature

TEE Ball Valves



Type		 DN PN1.6MPa WT (kg)
L D D1 D2 b Z-Φd H W
Q44F-16C
Q44F-16P
Q644F-16C
Q644F-16P
Q944F-16C
Q944F-16P
Q45F-16C
Q45F-16P
Q645F-16C
Q645F-16P
Q945F-16C
Q945F-16P		 15 108 95 65 45 14 4-Φ14 95 140 4
20 117 105 75 55 14 4-Φ14 105 160 5
25 127 115 85 65 14 4-Φ14 113 180 7
32 140 135 100 78 16 4-Φ18 135 250 12
40 165 145 110 85 16 4-Φ18 142 300 15
50 178 160 125 100 16 4-Φ18 154 350 20
65 191 180 145 120 18 4-Φ18 175 350 25
80 203 195 160 135 20 8-Φ18 190 400 36
100 229 215 180 155 20 8-Φ18 225 500 51
125 356 245 210 185 22 8-Φ18 245 600 77
150 394 280 240 210 24 8-Φ23 265 800 108
200 457 335 295 265 26 12-Φ23 305 800 126
250 533 405 355 320 30 12-Φ25 370 1300 186



Product Tags: valve , Ball Valves , TEE Ball Valves
