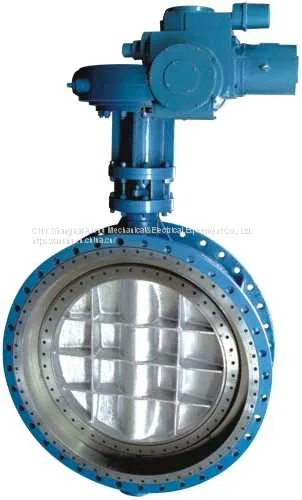

Soft-Seal Butterfly Valve

Soft-Seal Butterfly Valve thumbnail-1
Soft-Seal Butterfly Valve thumbnail-2
Soft-Seal Butterfly Valve thumbnail-3
Soft-Seal Butterfly Valve thumbnail-4
Soft-Seal Butterfly Valve thumbnail-5
Soft-Seal Butterfly Valve photo-1
Soft-Seal Butterfly Valve photo-2
Soft-Seal Butterfly Valve photo-3
Soft-Seal Butterfly Valve photo-4
Soft-Seal Butterfly Valve photo-5
US$ 1 - 1000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
D42X-10 D42X-16 D342X-10 D342X-16 D642X-10 D642X-16 D942X-10 D942X-16
Material:
Casting
Contact Supplier Request Quote Chat Now
CHY Shanghai Anshu Mechanical&Electrical Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
20 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number D42X-10 D42X-16 D342X-10 D342X-16 D642X-10 D642X-16 D942X-10 D942X-16
Material Casting
Application General
Structure Butterfly
Standard or Nonstandard Standard
Pressure High Pressure
Power Pneumatic
Media Base
Temperature of Media Medium Temperature

 Soft-Seal Butterfly Valve

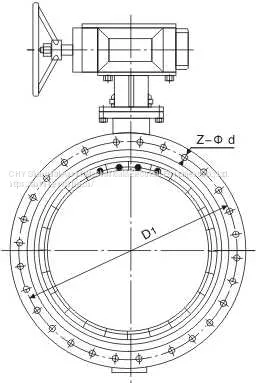

 Type DN L D PN1.0MPa PN1.6MPa D2 H H1 WT(kg)
D1 b Z-Φd D1 b Z-Φd 1.0 1.6
D42X-10
D42X-16
D342X-10
D342X-16
D642X-10
D642X-16
D942X-10
D942X-16		 50 108 160 125 20 4-Φ18 125 20 4-Φ18 99 160 85 15 18
65 112 180 145 20 4-Φ18 145 20 4-Φ18 118 160 90 17 20
80 114 195 160 22 8-Φ18 160 22 8-Φ18 132 180 100 20 22
100 127 215 180 22 8-Φ18 180 24 8-Φ18 155 240 120 25 32
125 140 245 210 24 8-Φ18 210 26 8-Φ18 185 270 130 34 40
150 140 280 240 24 8-Φ23 240 28 8-Φ23 210 300 150 50 50
200 152 335 295 26 8-Φ23 295 30 12-Φ23 265 330 180 70 75
250 250/165 390 350 28 12-Φ23 355 32 12-Φ25 320 400 220 90 137
300 270/178 440 400 28 12-Φ23 410 34 12-Φ25 368 410 220 120 145
350 290/190 500 460 30 16-Φ23 470 38 16-Φ25 458 460 270 165 180
400 310/216 565 515 32 16-Φ25 525 40 16-Φ30 482 510 290 180 250
450 330/222 615 565 32 20-Φ25 585 44 20-Φ30 532 560 320 230 300
500 350/229 670 620 34 20-Φ25 650 46 20-Φ34 585 590 360 280 350
600 390/267 780 725 36 20-Φ30 770 54 20-Φ41 685 660 390 340 480
700 430/292 895 840 40 24-Φ30 840 54 24-Φ41 800 780 460 490 600
800 470/318 1010 950 44 24-Φ34 950 54 24-Φ41 905 850 530 680 1020
900 510/330 1110 1050 46 28-Φ34 1050 54 28-Φ41 1005 920 570 1050 1350
1000 550/410 1220 1160 50 28-Φ34 1170 60 28-Φ48 1115 990 630 1330 1700
1200 630/470 1450 1380 56 32-Φ41 - - - 1325 1115 750 1600 -
1400 710/530 1675 1590 62 36-Φ48 - - - 1528 1228 850 2300 -
1600 790/600 1915 1820 68 40-Φ54 - - - 1750 1340 990 3400 -
1800 870/670 2115 2020 72 44-Φ54 - - - 1950 1570 1100 4150 -
2000 950/760 2325 2230 74 48-Φ54 - - - 2160 1680 1170 4250 -




Product Tags: valve , Butterfly valve , Soft Seal Butterfly Valve
