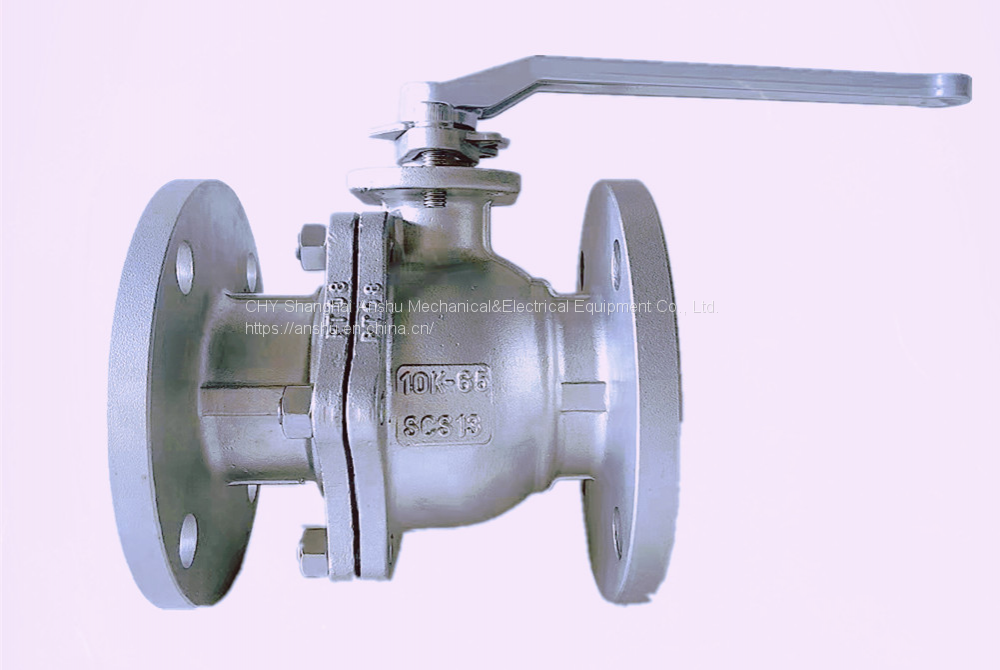

Float Ball Valves

Float Ball Valves thumbnail-1
Float Ball Valves thumbnail-2
Float Ball Valves thumbnail-3
Float Ball Valves thumbnail-4
Float Ball Valves thumbnail-5
Float Ball Valves photo-1
Float Ball Valves photo-2
Float Ball Valves photo-3
Float Ball Valves photo-4
Float Ball Valves photo-5
US$ 1 - 1000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
Q41F-16C Q41F-16P Q641F-16C Q641F-16P Q9B41F-16C Q9B41F-16P Q41F-25C Q41F-25P Q641F-25C Q641F-25P Q9B41F-25C Q9B41F-25P “Q41F-40 Q41F-40P Q341F-40 Q341F-40P Q641F-40 Q641F-40P Q9B41F-40 Q9B41F-40P Q41F-64 Q41F-64P Q341F-64 Q341F-64P Q641F-64 Q641F-64P Q9B41F-64 Q9B41F-64P
Material:
Casting
Contact Supplier Request Quote Chat Now
CHY Shanghai Anshu Mechanical&Electrical Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
20 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number Q41F-16C Q41F-16P Q641F-16C Q641F-16P Q9B41F-16C Q9B41F-16P Q41F-25C Q41F-25P Q641F-25C Q641F-25P Q9B41F-25C Q9B41F-25P “Q41F-40 Q41F-40P Q341F-40 Q341F-40P Q641F-40 Q641F-40P Q9B41F-40 Q9B41F-40P Q41F-64 Q41F-64P Q341F-64 Q341F-64P Q641F-64 Q641F-64P Q9B41F-64 Q9B41F-64P
Material Casting
Application General
Structure Ball
Standard or Nonstandard Standard
Pressure High Pressure
Power Pneumatic
Media Base
Temperature of Media Medium Temperature

 Float Ball Valves

 Type DN PN1.6MPa WT (kg)

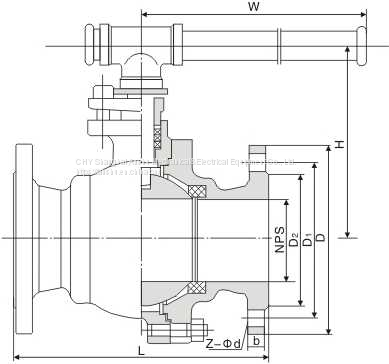

L D D1 D2 b Z-Φd H W
Q41F-16C
Q41F-16P
Q641F-16C
Q641F-16P
Q9B41F-16C
Q9B41F-16P		 15 130 95 65 45 14 4-φ14 78 140 3
20 140 105 75 55 14 4-φ14 84 160 4
25 150 115 85 65 14 4-φ14 95 180 5
32 165 135 100 78 16 4-φ18 150 250 9
40 180 145 110 85 16 4-φ18 150 300 11
50 203 160 125 100 16 4-φ18 170 350 15
65 222 180 145 120 18 4-φ18 195 350 19
80 241 195 160 135 20 8-φ18 215 400 27
100 305 215 180 155 20 8-φ18 250 500 38
125 356 245 210 185 22 8-φ18 265 600 58
150 394 280 240 210 24 8-φ23 270 800 81
200 457 335 295 265 26 12-φ23 330 800 95
250 533 405 355 320 30 12-φ23 450 1300 140











 Type DN PN2.5MPa WT (kg)
L D D1 D2 b Z-Φd H W
Q41F-25C
Q41F-25P
Q641F-25C
Q641F-25P
Q9B41F-25C
Q9B41F-25P		 15 140 95 65 45 16 4-φ14 103 100 3
20 152 105 75 55 16 4-φ14 112 160 4
25 165 115 85 65 16 4-φ14 123 160 6
32 178 135 100 78 18 4-φ18 150 250 10
40 190 145 110 85 18 4-φ18 156 250 14
50 216 160 125 100 20 4-φ18 172 350 20
65 241 180 145 120 22 8-φ18 197 350 25
80 283 195 160 135 22 8-φ18 222 450 30
100 305 230 190 160 24 8-φ23 253 450 40
125 381 270 220 188 28 8-φ25 275 600 65
150 403 300 250 218 30 8-φ25 286 800 85
200 502 360 310 278 34 12-φ25 340 1200 100
250 568 425 370 332 36 12-φ30 470 1400 165






















 Type DN PN4.0MPa WT (kg)
L D D1 D2 b Z-Φd H W
Q41F-40
Q41F-40P
Q341F-40
Q341F-40P
Q641F-40
Q641F-40P
Q9B41F-40
Q9B41F-40P		 15 140 95 65 45 16 4-φ14 103 100 3
20 152 105 75 55 16 4-φ14 112 160 4
25 165 115 85 65 16 4-φ14 123 160 6
32 178 135 100 78 18 4-φ18 150 250 10
40 190 145 110 85 18 4-φ18 156 250 14
50 216 160 125 100 20 4-φ18 172 350 20
65 241 180 145 120 22 8-φ18 197 350 25
80 283 195 160 135 22 8-φ18 222 450 30
100 305 230 190 160 24 8-φ23 253 450 40
125 381 270 220 188 28 8-φ25 275 600 65
150 403 300 250 218 30 8-φ25 286 800 85
200 502 375 320 282 38 12-φ30 340 1200 100
250 568 445 385 345 42 12-φ34 470 1400 165











 Type DN PN6.4MPa WT (kg)
L D D1 D2 b Z-Φd H W
Q41F-64
Q41F-64P
Q341F-64
Q341F-64P
Q641F-64
Q641F-64P
Q9B41F-64
Q9B41F-64P		 15 165 105 75 55 18 4-φ14 105 130 3.1
20 190 125 90 68 20 4-φ18 125 130 4.9
25 216 135 100 78 22 4-φ18 135 160 7.2
32 229 150 110 82 24 4-φ23 150 160 8.7
40 241 165 125 95 24 4-φ23 165 230 12.1
50 292 175 135 105 26 4-φ23 175 230 16.7
65 330 200 160 130 28 8-φ23 200 400 28.2
80 356 210 170 140 30 8-φ23 210 400 36
100 432 250 200 168 32 8-φ25 250 700 66
125 508 295 240 202 36 8-φ30 295 1100 98
150 559 340 280 240 38 8-φ34 340 1500 142




Product Tags: valve , Ball Valves , Float Ball Valves , Float
