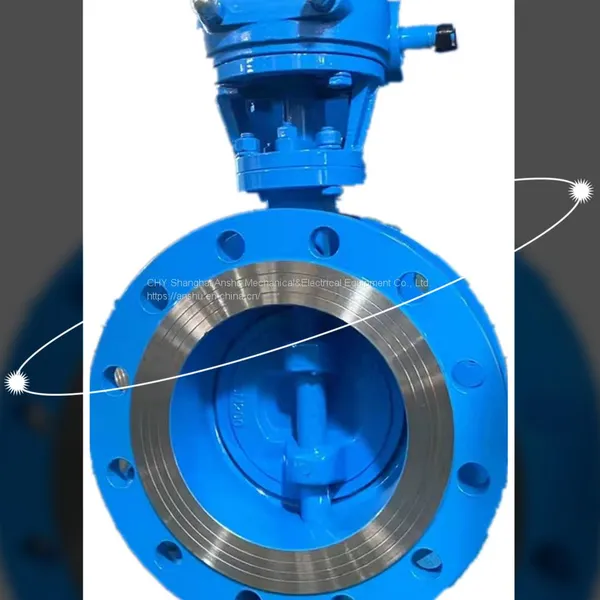

AWWA Butterfly Valve

AWWA Butterfly Valve thumbnail-1
AWWA Butterfly Valve thumbnail-2
AWWA Butterfly Valve thumbnail-3
AWWA Butterfly Valve thumbnail-4
AWWA Butterfly Valve thumbnail-5
AWWA Butterfly Valve photo-1
AWWA Butterfly Valve photo-2
AWWA Butterfly Valve photo-3
AWWA Butterfly Valve photo-4
AWWA Butterfly Valve photo-5
US$ 1 - 1000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
F504-10 F47-10
Material:
Casting
Contact Supplier Request Quote Chat Now
CHY Shanghai Anshu Mechanical&Electrical Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
20 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number F504-10 F47-10
Material Casting
Application General
Structure Butterfly
Standard or Nonstandard Standard
Pressure High Pressure
Power Pneumatic
Media Base
Temperature of Media Medium Temperature

 AWWA Butterfly Valve


Type DN PN1.0MPa WT (Kg)
L D D1 b Z-Φd H H1
F504-10 100 127 229 180 24 8-Φ17.5 225 120 31
125 127 254 210 24 4-Φ18 240 130 37
150 127 279 240 26 4-Φ18 260 140 43
200 152 343 295 26 8-Φ22 290 175 64
250 203 406 350 28 12-Φ22 340 205 113
300 203 483 400 28 12-Φ22 360 245 142
350 203 533 460 30 16-Φ22 400 270 171
400 203 597 515 32 16-Φ26 432 300 225
450 203 635 565 32 16-Φ26 475 320 258
500 203 699 620 34 16-Φ26 560 360 314
600 203 813 725 36 16-Φ30 680 410 396


Type DN PN1.0MPa WT (Kg)
L D D1 b Z-Φd H H1
F47-10 700 305 895 840 40 20-Φ30 710 474 590
800 305 1015 950 44 20-Φ33 750 534 670
900 305 1115 1050 46 24-Φ33 820 584 1120
1000 305 1230 1160 50 24-Φ36 930 642 1390
1200 380 1455 1380 56 28-Φ39 1050 754 1750
1400 380 1675 1590 62 32-Φ42 1220 890 2840
1600 380 1915 1820 68 36-Φ48 1330 1014 4130



Product Tags: valve , Butterfly valve , AWWA Butterfly Valve
