Product introduction:

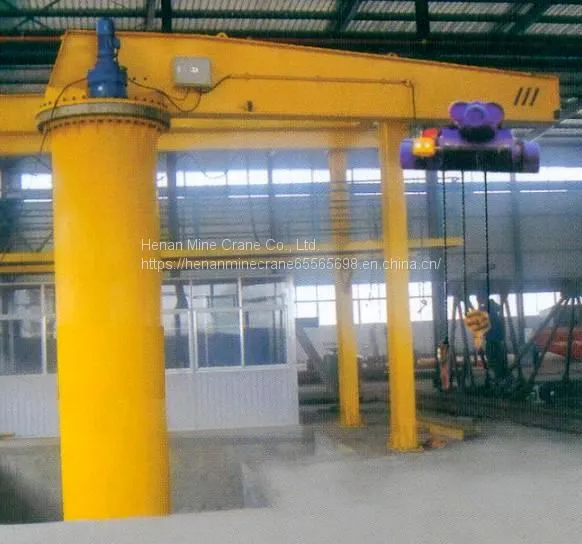

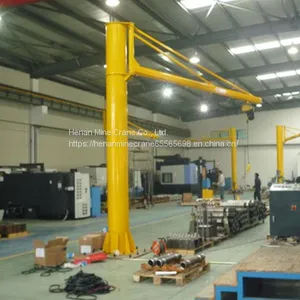

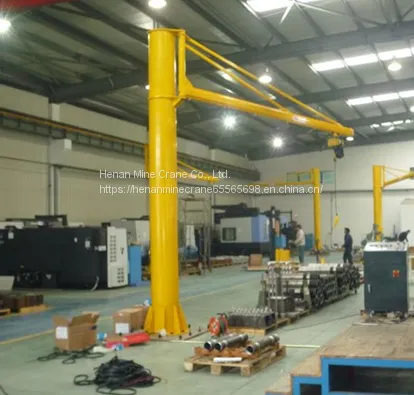

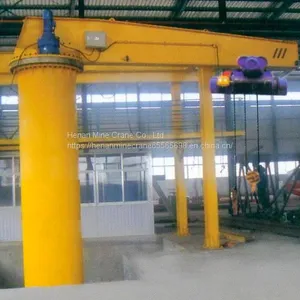

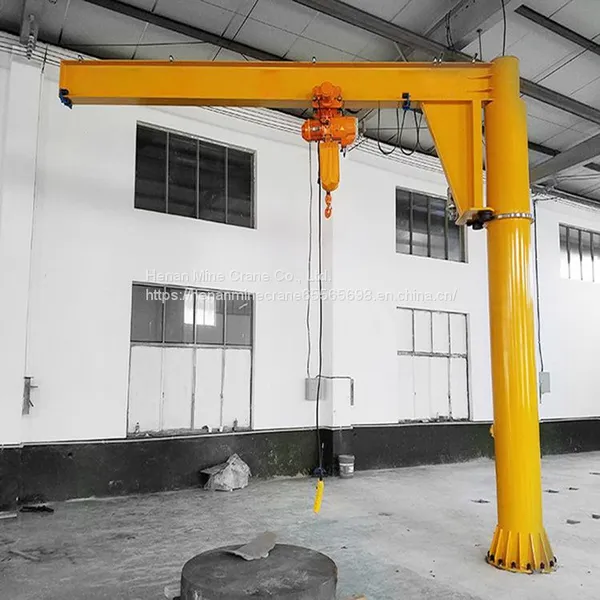

BZ or BZD model column cantilever jib crane consists of rotating cantilever arm, column, electric hoist or electric chain hoist as the lifting unit,festoon cable and electric control system. It is a small and medium hoisting equipment that is developed recently. It has characteristics of unique structure, safe and reliable operation, high efficiency, energy-saving, effort- saving, and flexibility. It can be operated under three dimensional environment. It is superior in the cases of short distance, concentrated lifting. It is widely used at various sites for various trades industry. Usually,the column mounted cantilever jib crane is used normal working environment, Flammable, explosive and corrosive gas are forbidden in the work environment. The crane is forbidden to lift fuse and blend deleterious article and flammable explosive article.
Technical parameters:
1 |
Capacity |
t |
3 |
5 |
||||||
2 |
Lifting height |
m |
4 |
5 |
6 |
4 |
5 |
6 |
||
3 |
Valid radius |
m |
4 |
5 |
6 |
4 |
5 |
6 |
||
4 |
Lifting speed |
M/min |
8(0.8/8) |
8(0.8/8) |
||||||
5 |
Cross travel speed |
M/min |
20 |
20 |
||||||
6 |
Rotating speed |
R/min |
0.5~1 |
0.5~1 |
||||||
7 |
Crane travelling speed |
M/min |
20 |
20 |
||||||
8 |
Slewing angle |
° |
180,270,360, any angle |
180,270,360, any angle |
||||||
9 |
Max height |
mm |
5770 |
6790 |
7820 |
6000 |
7020 |
8050 |
||
10 |
Max. length |
mm |
5011 |
6011 |
7011 |
5121 |
6121 |
7195 |
||
11 |
Total weight |
Kg |
3550 |
3890 |
4295 |
4550 |
5086 |
6230 |
||
Mechanical parts :
Support column and slewing arm : Support arm type is Simple structure and easy maintenance, The rotation angle can be: 180°, 270°, 360° , etc.
Lifting mechanism: chain hoist , CD/MD electric wirerope hoist, or European type hoist.
Electrical system: Schneider
Control mode: Pendant line control or remote control.
Safety system :
Weight overload protection
Emergency stop system
Over current protection,Short-circuit protection
Phase sequence protection,Zero position protection
Voltage loss protection
crane rotating stopper and cross traveling limit switch and stopper
Lifting overhigh and overlow limit switch
Design standard:
The manufacture, installation, finished product acceptance and use of this product shall comply with JB/T9229, 1-9229, 3-1999.Relevant provisions.
Installation Services:
Henan Mine Crane Co.,LTD crane could supply not only column jib crane but also the solutions, firstly, we will supply column jib crane design, column jib crane manual, column jib crane drawing, column jib crane wiring diagram, column jib crane electrical diagram and column jib crane safety video before or after delivery, our technician will do supervision the installation according to the document, of course, the customer can do installation by themselves according to their requirement.
After installation, our technician will indicate to do the load test according to the overhead crane load test procedure, then overhead crane operator training and overhead crane maintenance training, all the procedure will be made according to the overhead crane training videos and overhead crane training PowerPoint,
