5Ton Top Quality Single Beam Remote Control Electric Overhead Traveling Crane
Product description of 5Ton Top quality single beam remote control electric overhead traveling crane:
LDA model single girder EOT crane is a kind of light duty crane, with the capacity of 1 to 20 tons. The span is 7.5 to 31.5 meters. Working duty is A3 A4. Working environment temperature is -20°C to 40°C.
LDA model single girder EOT crane consists of main beam,end beam,electric hoist,festoon cable and electric control system,It is widely used in plants, warehouse, and material stocks to lift goods.
LDA model single girder EOT crane is matched with electric hoist which is CD model or MD model.
It is prohibited to use the equipment in the combustible, explosive or corrosives environment
Technical Parameter(customizable) of 5Ton Top quality single beam remote control electric overhead traveling crane:
| Lifting Weight | T | 1t | 2t | 3t | 5t | 10t | 16t | 20t | ||
| Span | m | 7.5~22.5m | 7.5~31.5 | |||||||
| Speed | Lifting | MD1 hoist | m/min | 8/0.8 (7/0.7) | 3.5/0.35 | |||||
| CD1 hoist | 8 (7) | 3.5 | ||||||||
| Traveling of electric hoist | 20 | 20 | ||||||||
| Traveling of cable trolley crane | 20/30 | 20/30 | ||||||||
| Wheel diameter | Φ270 | Φ370 | ||||||||
| Width of trail | 37~70mm | 37~70mm | ||||||||
| Operational Model | remote control; ground handle | remote control; ground handle | ||||||||
| Working Duty | A3 | |||||||||
| Power Supply | According to your demands |
According to your demands |
||||||||
Main Features of Bridge single beam overhead crane:
1). Light structure,easy installation and maintenance;
2). Widely used in different places for hoisting such as factories,warehouses and material yards;
3). Reasonable structure,strong bearing capacity ;
4). Low noise, soft starting and stopping ;
5). Safe and reliable operation ;
6). Low cost maintenance, long working life;
7). Strong box type,welding by machine hand.;
8). Wheels,wirerope drum,gears, couplings are processed by CNC manchine center, TOP quality control;
9). Heavy duty slipring motor,Or Sq.cage motor with VVVF, IP54 or IP44,insulation class F or H,soft starting and smooth running

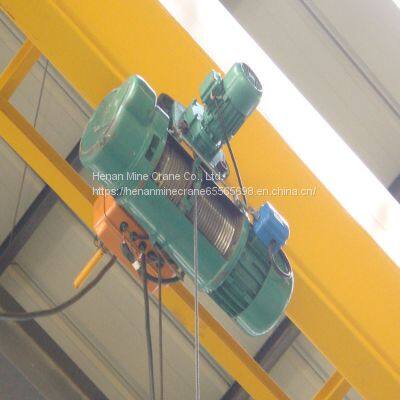

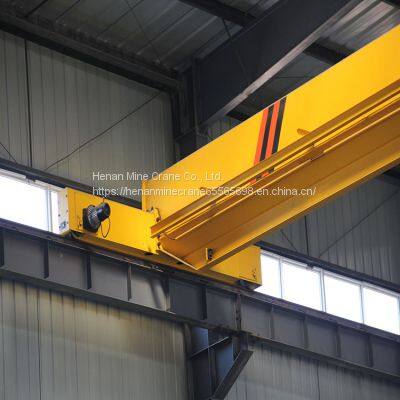

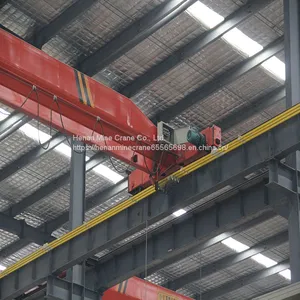

Detailed Images of single beam overhead crane:
FAQ
A: Can you provide custom service?
B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
A: Are there any professional technicians to assist our installation?
B: Yes. We have a professional installation team, who has already been to many countries to assist the installation.If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
A: Whether or not you can offer the matched spare parts?
B: Yes, as a cable trolley crane manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.
A: How can you ensure the quality?
B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are alsowarmly welcomed to our factory to make the inspections.
