High Quality 5 Ton European Type Steel Wire Rope Electric Hoist
Product Ddescription of High Quality 5Ton European Type Steel Wire Rope Electric Hoist :
1. Adopt the lifting motor and reducer imported from Germany.
2. The integrated compact design of lift motor, reducer, drum and lift limit switch saves the user's space.
3. Modular design enhances the reliability of the mechanism while effectively reducing maintenance time and cost.
4. With more and faster lifting speed and a variety of pulley ratio can be selected.
5. The standard trolley running mechanism is controlled by frequency converter, the speed is up to 20 meters/min, 6.which makes the goods swing less when the trolley is walking, the positioning is accurate, and the precision 7.valuables can be hoisted safely and reliably.
Technical Parameter(customizable) of High Quality 5 Ton European Type Steel Wire Rope Electric Hoist :
| Model | Capacity (t) | Lifting height (m) | Lifting speed (m/min) | Hoist Motor (Kw) | Travel speed (m/min) | Trolley Motor (Kw) | Working Class (FEM/ISO) Hoist Trolley | |
| LFT3.2D | 3.2 | 6,9,12,15,18 | 5/0.8 | 3.2/0.45 | 20/5 | 0.25x2 | 2M/M5 | 2M/M5 |
| LFT5D | 5.0 | 6,9,12,15,18 | 5/0.8 | 6.1/1 | 20/5 | 0.37x2 | 2M/M5 | 2M/M5 |
| LFT6.3D | 6.3 | 6,9,12,15,18 | 5/0.8 | 6.1/1 | 20/5 | 0.37x2 | 2M/M5 | 2M/M5 |
LFT8D | 8.0 | 6,9,12,15,18 | 5/0.8 | 9.5/1.5 | 20/5 | 0.37x2 | 2M/M5 | 2M/M5 |
| LFT10D | 10 | 6,9,12,15,18 | 5/0.8 | 9.5/1.5 | 20/5 | 0.37x2 | 2M/M5 | 2M/M5 |
| LFT12.5D | 12.5 | 6,9,12,15,18 | 5/0.8 | 12.5/1.5 | 20/5 | 0.55x2 | 1AM/M4 | 2M/M5 |
LFT16D | 16 | 6,9,12,15,18 | 4/0.6 | 16/2.6 | 20/5 | 0.55x2 | 2M/M5 | 2M/M5 |
| LFT20D | 20 | 6,9,12,15,18 | 4/0.6 | 16/2.6 | 20/5 | 0.55x2 | 1AM/M4 | 2M/M5 |
| LFT25D | 25 | 6,9,12,15,18 | 3.3/0.8 | 20/5 | 20/5 | 0.75x2 | 3M/M6 | 2M/M5 |
| LFT32D | 32 | 6,9,12,15,18 | 3.3/0.8 | 20/5 | 20/5 | 1.1x2 | 2M/M5 | 2M/M5 |
| LFT40D | 40 | 6,9,12,15,18 | 0~4 | 38 | 20/5 | 1.5x2 | 1AM/M4 | 2M/M5 |
| LFT50D | 50 | 6,9,12,15,18 | 0~3 | 38 | 20/5 | 1.5x2 | 2M/M5 | 2M/M5 |
Main Features of High Quality 5 Ton European Type Steel Wire Rope Electric Hoist :
▶ Geared motor brand: Germany/China top brand
▶ Safety and reliable
▶ Energy-conservation

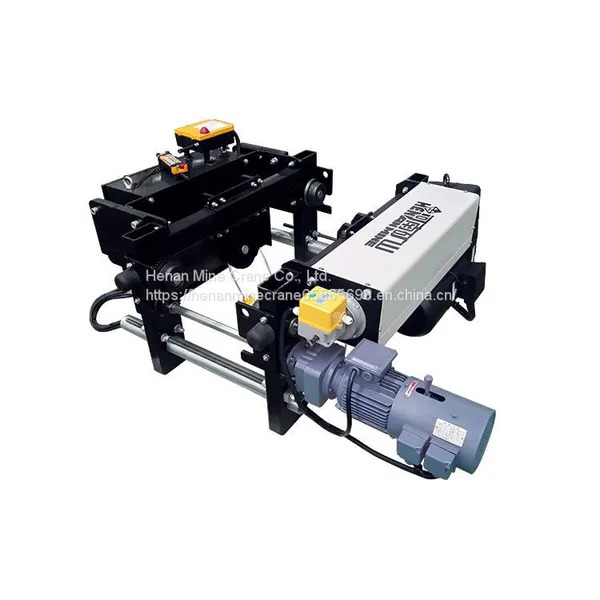

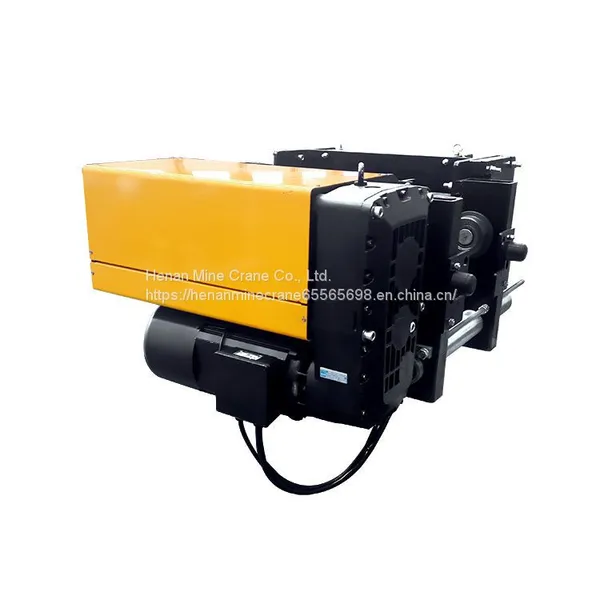

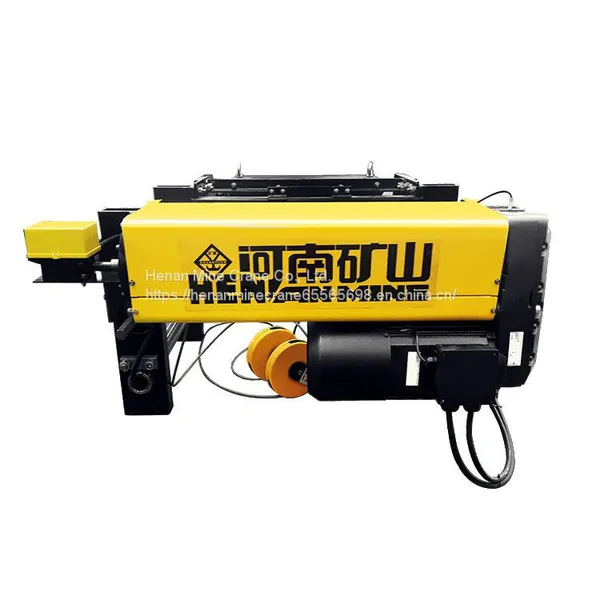

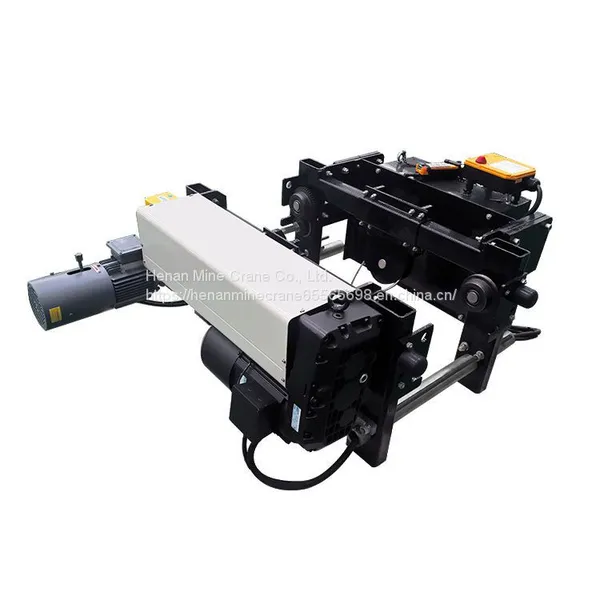

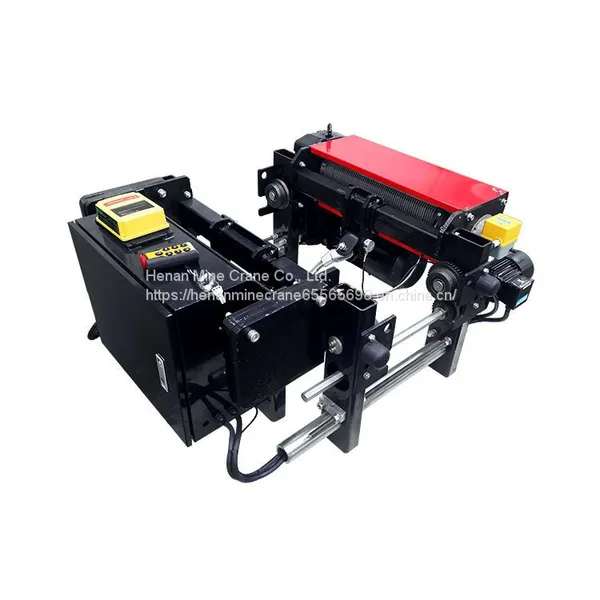

Detailed Images of High Quality 5 Ton European Type Steel Wire Rope Electric Hoist:
FAQ
Customer: What's the information should I provide when inquiry?
