European Style 10 ton Double Girder Overhead Crane Traveling Hoist Trolley Crane
Product Description of KSSL european style 10Ton double girder electric overhead traveling hoist crane
KSSL type electric double girder crane is designed and manufactured with advanced European FEM standards. The steel structure of the crane is reasonably designed, structurally optimized, in line with specifications and standards, and meets the requirements of strength, stiffness and stability.
The design takes full account of the working environment on site; the design of the steel structure takes into account the convenience and possibility of manufacturing, inspection, transportation, installation and maintenance. Under the condition of meeting the demand and relevant current specification standards, the weight of the steel structure is reduced by means of optimization design such as finite edge analysis. The hoist trolley adopts ND type wire rope electric hoist trolley with rated lifting capacity of 3.2~80t.
Product Structure:
| KSSL Double Beam Bridge Crane | ||||||||
| Lifting Weight (t) | 5 | 10 | 16 | 20 | 25 | 32 | 40 | 50 |
| Working Level | FEM 2M A5 | |||||||
| Lifting Height (m) | 6/9/12/15/18/24 | |||||||
| Lifting Speed (m/min) | 5/0.8 | 4/0.67 | 0-4.9 | 0-3.2 | ||||
| Span (m) | 10.5-31.5 | |||||||
| Operating Mode | Groud manual switch/Remote control/Driver's cabin | |||||||
| Vehicle Weight (t) | 4.7-17.6 | 4.9-22.4 | 7.4-24.6 | 8-28.3 | 9.4-32.2 | 10.4-34.5 | 13.6-38.1 | 14.6-40.1 |
| Wheel Pressure (kN) | 43-74 | 69-105 | 110-154 | 130-180 | 158-215 | 201-261 | 254-315 | 311-375 |
| Track Model | P38 | P38 | P38 | P38 | P38 | QU70 | QU70 | QU70 |
| Total power (kW) | 13.56 | 14.5 | 16.5 | 20.9 | 24.4-28 | 30.2/32.2 | 39/41 | 41/43 |

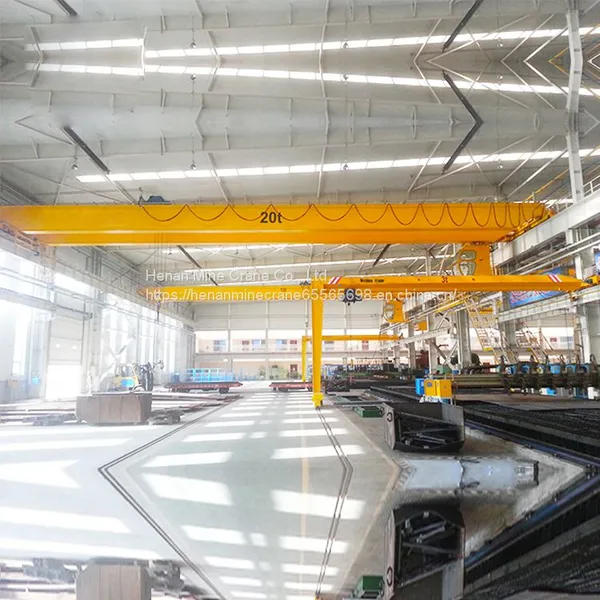

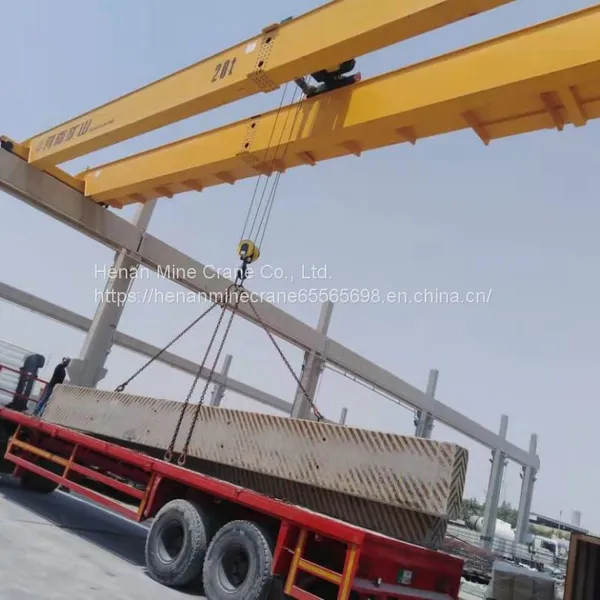

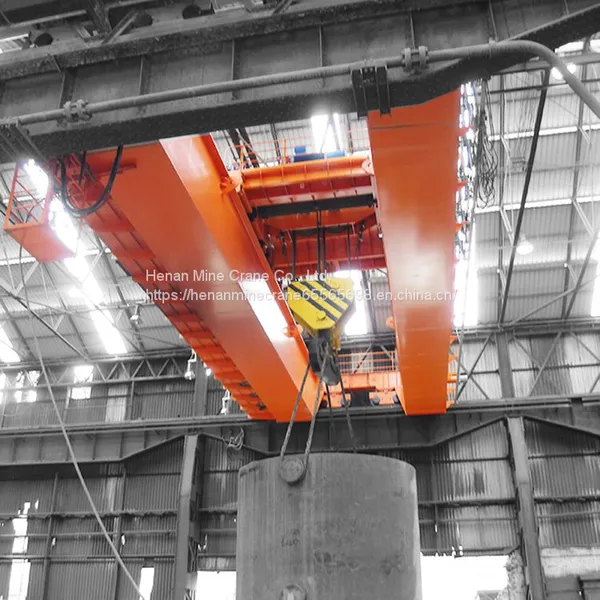

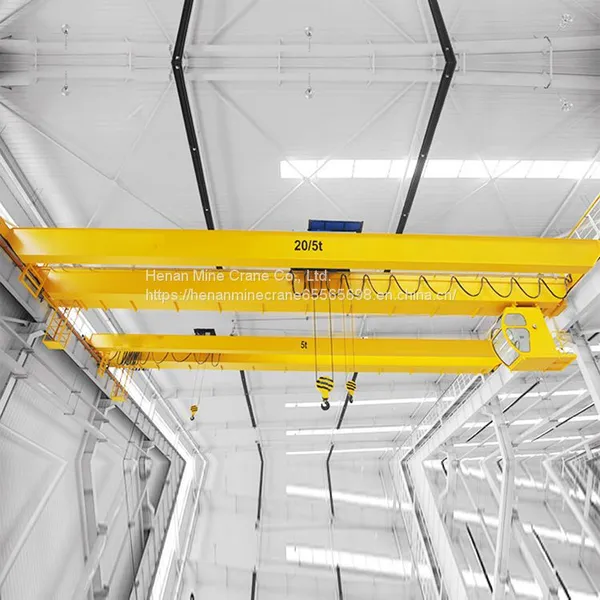

Photo of 10 Ton Electric Hoist Double Girder European Type Overhead Traveling Crane

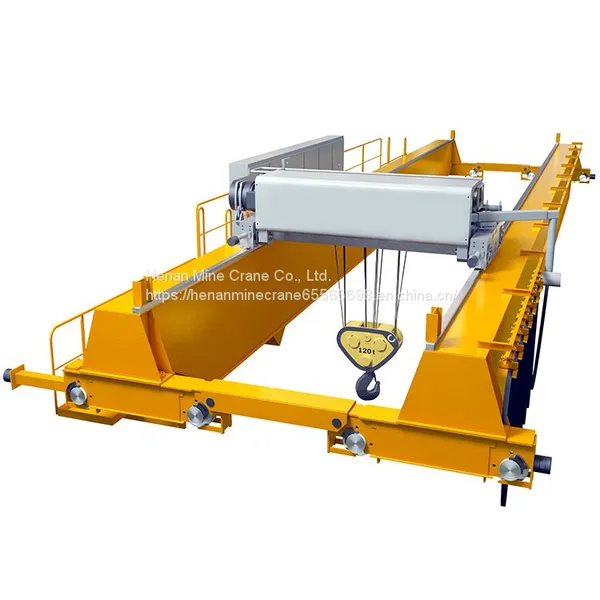

Photo of KSSL european style 10Ton double girder electric overhead traveling hoist crane
Specifications:
1.Light self-weight;
2.Occupies little space;
3.Low cost of running and maintaining;
4.High performance; Easy to operate;Safety and reliable; Green production technology
5.Fast and easy positioning
6.PLC+man-machine interface
7.Safety monitoring system
8.Light structure,easy installation and maintenance
9.Reasonable structure,strong bearing capacity
10.Low noise, soft starting and stopping
11.Safe and reliable operation
Certifications
We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control,ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.
Company introduction
Henan Mine Crane Group have more than 4,500 employees, include one experienced and professional team for oversea market. We cover an area of 1,620,000 square meters, hold capital of RMB1.18 Billion, have more than 430 branches around the world and serving over 6,000 mid-to-high-end customers.
We have more than 200 intermediate and senior engineers who focus on design and manufacture of our cranes, we could supply you all kinds of cranes, more than 110 types. In order to manufacture the best quality crane with high efficiency production, we invest large number of high technique equipment (include more than 500 sets of robots) which can independently accomplish all the processes, such as milling, digging, grinding, pulling, boring, rolling, drilling, punching, cutting, bending, welding, testing and heat treatment. Meanwhile, our factory have passed CE, EAC, SGS, and OHSAS & ISO9001:2000, ISO14001:1996 and ISO9001:2001, have the perfect quality-control system.
FAQ
A: Can you provide custom service?
B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
A: Are there any professional technicians to assist our installation?
B: Yes. We have a professional installation team, who has already been to many countries to assist the installation.If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
A: Whether or not you can offer the matched spare parts?
B: Yes, as a crane manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.
A: How can you ensure the quality?
B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are alsowarmly welcomed to our factory to make the inspections.
