LDY Type 2Ton Single Girder Remote Control Electric Bridge Foundry Crane
- 34000 Set / Sets per Month
- Tianjin,Qingdao,Shanghai port
- T/T L/C Credit Card Cash
- 25 days
- CCS, BV, ABS Approved Marine Ship Telescopic Folding Arm Crane
- China Supplier Single-Arm Rack Floating Crane for Bulk Cargo
- Barge Mounted Crane for Bauxite Discharging Transfer From Vessel to Barge
- Port Grab Crane Coal Bauxite Sand Stone Unloading Crane
- Fixed Type Lattice Boom Port Crane Heavy Duty
- Lattice Boom Port Fixed Crane Widely Usage with Customized Color
Product Details
Brand Name: | Kuangyuan | Place of Origin: | China | Model Number: | LDY LDY |
Certification: | CE ISO | After-sales Service Provided: | No overseas service provided | Warranty: | 18 months from the date of delivery from the factory. |
Application: | Widely in plants warehouses,steel factory | Condition: | New | Max. Lifting Load: | 10ton |
Span: | 7.5~28.5m | Rated Lifting Moment: | 20KN | Rated Loading Capacity: | 2ton |
Max. Lifting Height: | 20m |
Product Description
LDY Type 2Ton Single Girder Remote Control Electric Bridge Foundry Crane
1. LDY metallurgical single beam crane is mainly used for metallurgical and foundry places where molten metal is lifted. Its supporting lifting mechanism is YHⅡ metallurgical electric hoist, and its lifting capacity is less than or equal to 10t.
2. The bottom of the main beam of the crane adopts special heat insulation treatment; the working environment temperature is -10℃~60℃, and the relative humidity does not exceed 50% at a temperature of 40℃.
3. Other places where molten non-metallic materials and hot solid metals are lifted can also be used as reference.
Lifting weight(T) | 1 | 2 | 3 | 5 | 10 | |
Span(m) | 3~16 | |||||
Max Lifting height(m) | 3,6,9,12,18 | |||||
Working class | A6 | |||||
Main Hoisting Speed(m/min) | 8,8/0.8;7,7/0.7 | |||||
Trolley Cross Traveling Speed(m/min) | 20,2~20(frequency inverter) | |||||
Crane Long Traveling Speed(m/min) | 30,3~30(frequency inverter) | |||||
Motor Type | Squirrel cage motor | |||||
Motor (Kw) | Main Hoisting | 1.5 | 3 | 4.5 | 7.5 | 13 |
Trolley Cross Traveling | 1*0.4,1*0.8,2*0.8 | |||||
Crane Long Traveling | 2*0.4,2*0.8,2*1.5 | |||||
Control mode | Pendent line control,Remote control | |||||
Recommended Rail model | I20a~45c,I40b~63c | |||||
Power source | 3Ph A.C 50Hz 380V |

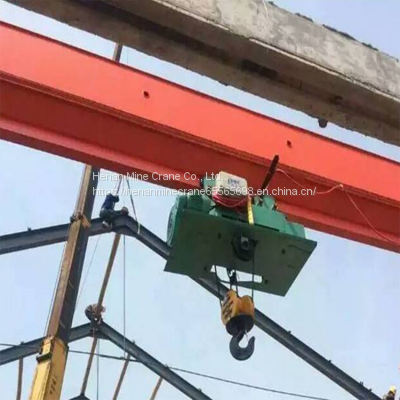

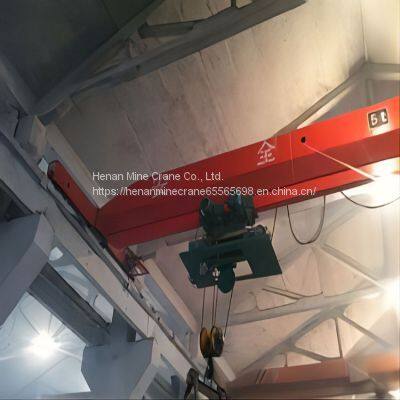

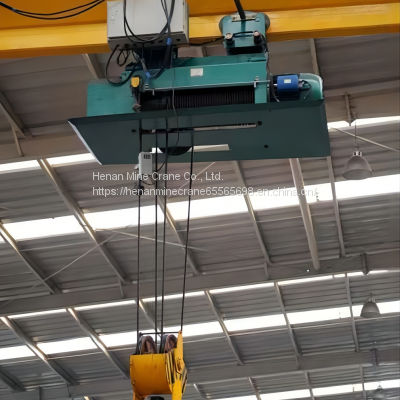

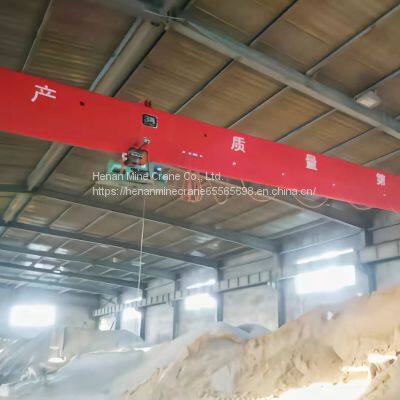

Product photo of LDY Type 2Ton Single Girder Remote Control Electric Bridge Foundry Crane:
Main Features of LDY Type 2Ton Single Girder Remote Control Electric Bridge Foundry Crane :
1.Light structure,easy installation and maintenance
2.Reasonable structure,strong bearing capacity
3.Low noise, soft starting and stopping
4.Safe and reliable operation
5.Low cost maintenance, long working life
6.Motor soft start,High protection level IP44,IP54,IP55
7.Weight overload protection device
8.Emergency stop system
9.Over current Protection,Short-circuit Protection
10.Phase sequence protection
Attention:
Safety is the most important issue for cranes. To ensure safety, it is forbidden to use the equipment in flammable, explosive or corrosive environments. (Explosion-proof type is required for this).
