Top quality 10Ton single girder remote control overhead traveling crane
Product description of Top quality 10Ton single girder remote control overhead traveling crane:
LDA model single girder EOT crane is a kind of light duty crane, with the capacity of 1 to 20 tons. The span is 7.5to 31.5 meters. Working duty is A3. Working temperature is -25°C to 40°C.
It is widely used in plants, warehouse, and material stocks to lift goods.
It is matched with electric hoist which is CD model or MD model.
It is prohibited to use the equipment in the combustible, explosive or corrosives environment.
Technical Parameter(customizable) of single beam overhead crane:
| Lifting Weight | T | 1t | 2t | 3t | 5t | 10t | 16t | 20t | ||
| Span | m | 7.5~22.5m | 7.5~31.5 | |||||||
| Speed | Lifting | MD1 hoist | m/min | 8/0.8 (7/0.7) | 3.5/0.35 | |||||
| CD1 hoist | 8 (7) | 3.5 | ||||||||
| Traveling of electric hoist | 20 | 20 | ||||||||
| Traveling of cable trolley crane | 20/30 | 20/30 | ||||||||
| Wheel diameter | Φ270 | Φ370 | ||||||||
| Width of trail | 37~70mm | 37~70mm | ||||||||
| Operational Model | remote control; ground handle | remote control; ground handle | ||||||||
| Working Duty | A3 | |||||||||
| Power Supply | According to your demands | According to your demands |
||||||||
Main Features of Bridge single beam overhead crane:
1,Strong box type,U-shape groove of main beam is manufactured by one time forming machine,no weld,strong and nice looking.
2, End beam U shape groove is also bended by one time forming machine,welding is done by robot.
3, Sand blast for the whole crane steel structure, to make sure the paint is very strong.
4, Six action direction movement, to get enough working area.
5, Motor protection class IP44,IP54,IP55
6, Forged wheel, insert mounting with shaft,strong and long service life.
7, Schneider main electrics,Pendent line control,remote control,or cabin control
8, Frequency inverter is optional for speed control.

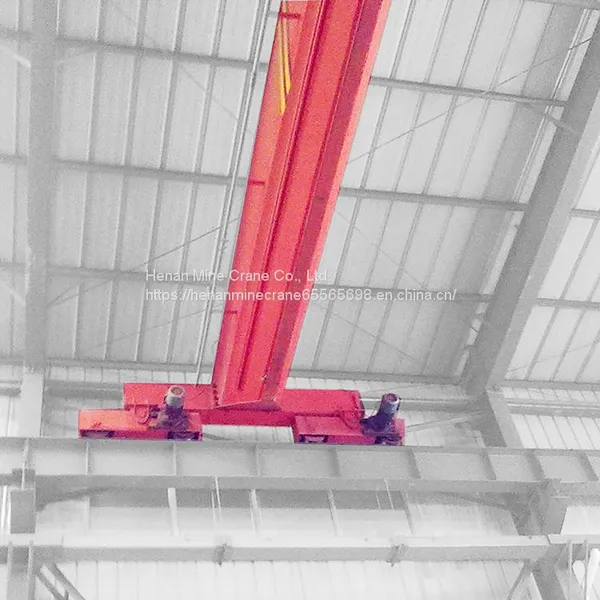

Detailed Images of single beam overhead crane:
FAQ
A: Can you provide custom service?
B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
A: Are there any professional technicians to assist our installation?
B: Yes. We have a professional installation team, who has already been to many countries to assist the installation.If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
A: Whether or not you can offer the matched spare parts?
B: Yes, as a cable trolley crane manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.
A: How can you ensure the quality?
B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are alsowarmly welcomed to our factory to make the inspections.
