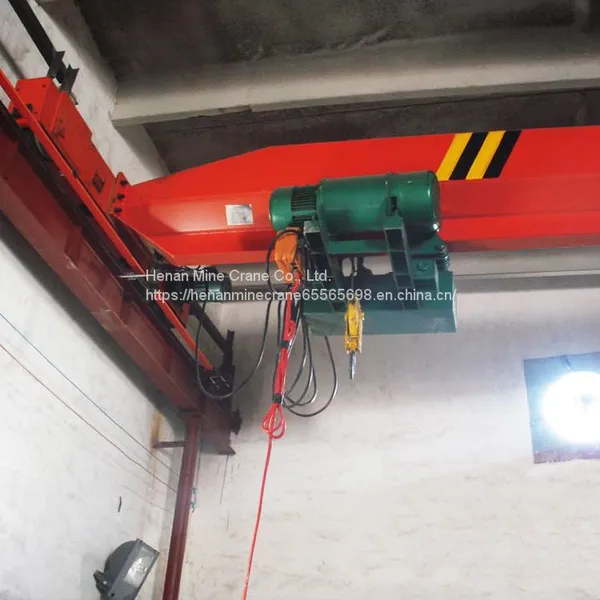

10 Ton Span 10.5m European Electric Single Girder Overhead Crane A5 Working Class
- 34000 Set / Sets per Month
- Tianjin,Qingdao,Shanghai port
- T/T L/C Credit Card Cash
- CCS, BV, ABS Approved Marine Ship Telescopic Folding Arm Crane
- China Supplier Single-Arm Rack Floating Crane for Bulk Cargo
- Barge Mounted Crane for Bauxite Discharging Transfer From Vessel to Barge
- Port Grab Crane Coal Bauxite Sand Stone Unloading Crane
- Fixed Type Lattice Boom Port Crane Heavy Duty
- Lattice Boom Port Fixed Crane Widely Usage with Customized Color
Product Details
Brand Name: | Kuangyuan | Place of Origin: | China | Model Number: | LDC |
Certification: | CE ISO | After-sales Service Provided: | No overseas service provided | Warranty: | 18 months from the date of delivery from the factory. |
Application: | Widely in plants warehouses,material stocks | Condition: | New | Max. Lifting Load: | 20ton |
Span: | 10.5M | Rated Lifting Moment: | 100KN | Rated Loading Capacity: | 10ton |
Max. Lifting Height: | 10M |
Product Description
10 Ton Span 10.5m A5 European Electric Single Girder Overhead Crane
Product Description of 10 Ton Span 10.5m A5 European Electric Single Girder Overhead Crane
European-style single-girder bridge crane is a new generation of crane with intelligent characteristics. The lifting mechanism is a European style ND wire rope electric hoist. The lifting speed is doubled. The horizontal and long walking adopts stepless frequency conversion motor to make the crane walking smoothly. The crane design is based on FEM, DIN, ISO standards, which is extremely safe, ergonomic, convenient and efficient for material transportation. Its compact size structure can save a lot of space.
Main Features of 10 Ton Span 10.5m A5 European Electric Single Girder Overhead Crane:
1. The small wheel pressure and small volume can reduce the investment in the preliminary works such as the factory building.
2. Using high-quality components can reduce failure rate and maintenance costs.
3. Low consumption of total power can reduce the costs, it had remakeable energy-saving effect.
4. Variable Frequency control make cranes run smoothly.
5. Standardize the whole crane coninguration to make the whole machine more stable.
6. Real-time security monitoring while crane running.
Attention:
Safety is the most important issue for cranes. To ensure the safety,It is prohibited to use the equipment in the combustible, explosive or corrosives environment.(Need explosion proof type for this).the following safety devices are equiped in Crane.
1. crane traveling limit switch.
2. Weight overload protection device.
3. Lifting height limit device.
4. Voltage lower protection function.
5. Emergency stop function.
Product Structure
Capacity | t | 10t | |||||||||
Span | m | 10.5 | |||||||||
Total weight | kg | 3596 | |||||||||
Trolley weight | kg | 928 | |||||||||
Max. Wheel load | kn | 54.44 | |||||||||
Travel rail | P38 | ||||||||||
Lifting speed | m/min | 0.8/5 | |||||||||
Lifting height | m | ≥ 6 | |||||||||
Total motor power | kw | 12.7 | |||||||||
Crane speed | m/min | 3-30 | |||||||||
Trolley speed | m/min | 2-20 | |||||||||
Working duty | M5/A5 |
Sketch picture
Installation Service of 10 Ton Span 10.5m A5 European Electric Single Girder Overhead Crane:
Henan Mine Crane CO.,LTD crane could supply not only overhead crane but also the overhead crane solutions, firstly, we will supply overhead bridge crane design, overhead crane manual, overhead crane drawing, overhead crane wiring diagram, overhead crane electrical diagram and overhead crane safety video before or after delivery, our technician will do supervision the installation according to the document, of course, the customer can do installation by themselves according to their requirement.
After installation, our technician will indicate to do the load test according to the overhead crane load test procedure, then overhead crane operator training and overhead crane maintenance training, all the procedure will be made according to the overhead crane training videos and overhead crane training PowerPoint.
