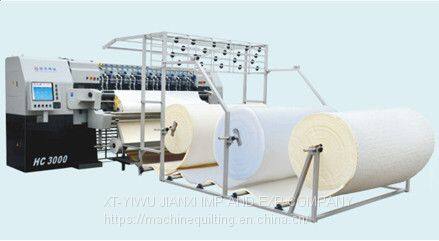

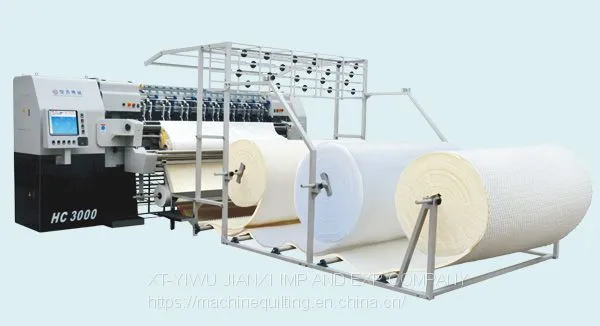

HC3000 High Speed Computeried Multi-needle Chain Stitch Quilting Machine
special function:
1, the latest design pneumatic feeding institutions, easy to install, fast, smooth;
2, integrated tilt-type body design, the overall appearance of generous, easy to operate, perfect quilted pattern;
3, the first infrared device broken device, non-contact, reliable performance;
4, the first domestic quilted independent pattern, the use of pneumatic thread trimming technology, thread cutting fast;
5, the latest design enhanced arms exercise mechanism, durable, no fuel, fast speed, small vibration;
6, different thickness of quilted fabric, the overall pressure plate can be easy to operate;
7, perfect safety protection device
8, a new generation of design control system, reliable performance, easy operation, high precision quilting;
9, CAD drawing methods can be enlarged, reduced, arbitrarily modified, convenient and quick;
10, a strong combination of patterns (covering 360 degrees, 180 degrees pattern), can store more than 2,000 patterns;
11, running state detection and prompts, the operation of the machine at a glance;
12, computer pattern automatic compensation function.
Upgrade innovative features introduced:
1, automatic adjustment of fabric thickness device can automatically adjust the pressure roller gap, flower is not easy to deformation, strong sense of three-dimensional;
2, upgraded shock absorber hopper, to solve the heavy fabric quilted back and forth in the process of shaking problems;
3, the new hopper solid balance system, reduce vibration, reduce noise, which will help improve the performance of the machine and stability.
Technical Specification:
Size (length*width*height) |
5100X1500X2000(mm) |
Weight |
5000kg |
Quilt width |
2450mm |
Rotation speed |
600-1200RPM |
Production speed |
80-280m/h |
Needle size |
130/21 140/22 160/23 180/24 |
Needle arrangement |
(50.8 , 76.2 , 127) (76.2, 76.2 , 152.4) |
Max horizonal movement |
450mm |
Needle space |
25.4mm |
Voltage |
380V/220V 50HZ/60HZ |
Stitch size |
2-7 mm |
Power |
10KW |
Quilting thickness |
≤80mm |
Products:

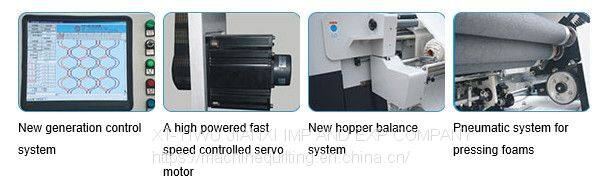

Feature Icon:
Applications:
Mattress Comforter Clothing Handbag Glove Sleeping bag All bed equipment of pattern.
