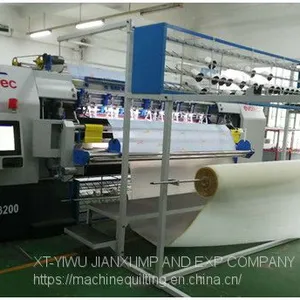

EDC3200 High Speed Computeried Multi-needle Chain Stitch Quilting Machine

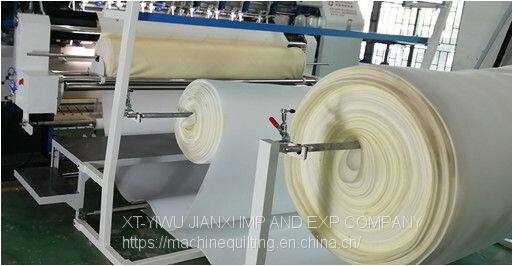

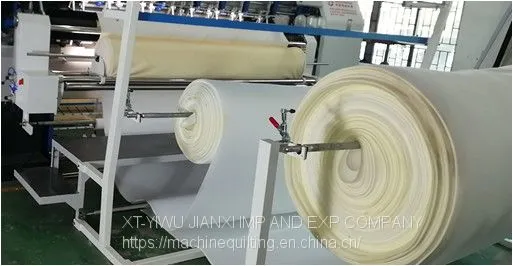

Fabric loading update as the following .
SPECIAL FUNCTION:
New Fabric loading design. Easy loading material.
Titled body design. Easy to operate and maintain.
Thread brake detector.
Pneumatic air thread cutting system.
Operated using high quality sealed bearings that do not need lubrication.
Adjustable presser foot lifting mechanism enables you to quilt a broad range of material thickness.
Emergency safety devices.
Improved quilting software control system allows more precise and stable quilting operations.
CAD pattern drawing pattern system allows you to create your own design.
Machine comes with 100-300 design patterns.
Error problem detection system.
Pattern compensation.
INNOVATIVE FUNCTION INTRODUCTION:
Auto adjustable feed rollers allow operator to adjust
various type of thickness.
Fabric holder transport block ensures that machine operates with more stability and less noise.
Sealed fabric rollers allow better control of design pattern.
High speed machine operation and stable control.
Heavy duty tracking system for feed in and feed out material.
Technical Specification:
Size (length*width*height) |
5100X1500X2000(mm) |
Weight |
5000kg |
Quilt width |
2450mm |
Rotation speed |
600-1200RPM |
Production speed |
80-280m/h |
Needle size |
130/21 140/22 160/23 180/24 |
Needle arrangement |
(50.8 , 76.2 , 127) (76.2, 76.2 , 152.4) |
Max horizonal movement |
450mm |
Needle space |
25.4mm |
Voltage |
380V/220V 50HZ/60HZ |
Stitch size |
2-7 mm |
Power |
10KW |
Quilting thickness |
≤80mm |

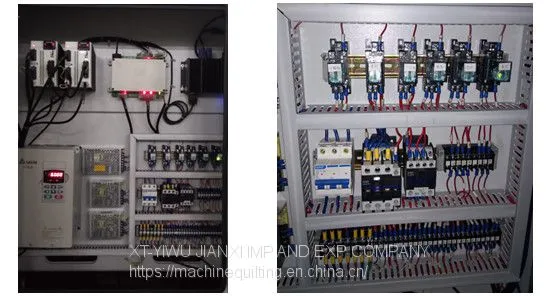

Panasonic Drivers and motors
Stable Industrial computer
Panasonic drivers and motors.
Products:
Applications:
Mattress Comforter Clothing Handbag Glove Sleeping bag All bed equipment of pattern.

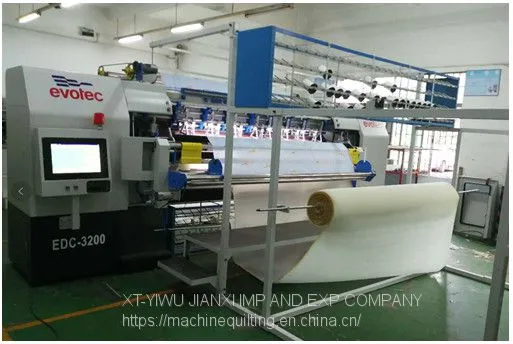

Machine picture
