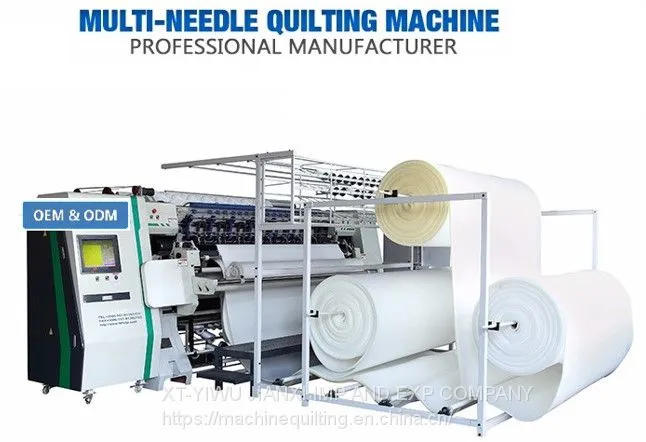

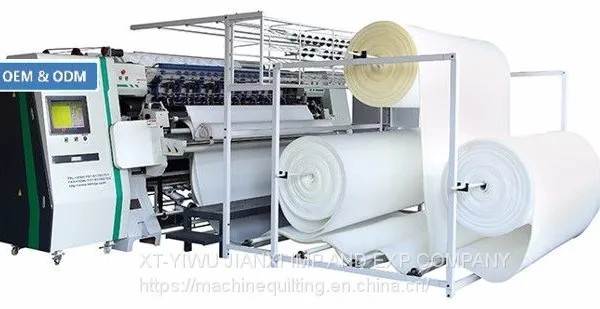

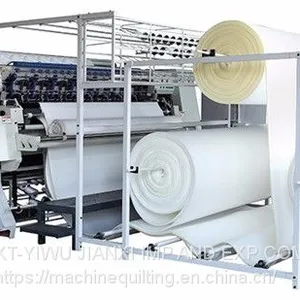

High speed new technology computerized multi needle industrial quilting machine
- 300 Set / Sets per Month
Product Details
Place of Origin: | China | Model Number: | JX-4W | After-sales Service Provided: | Overseas service center available |
Warranty: | 1 year | Weight: | 4800kg | Dimension(L*W*H): | 5400*1600*2050mm |
Condition: | New | Max Sewing Thickness: | 80mm | Max Sewing Speed: | 60-300m/h |
Product Description
High speed new technology computerized multi needle industrial quilting machine
Mechanical property
Product NO. | JX-4W |
Size | 5400*1600*2050mm |
Weight | 4800KG |
Row Spacing | 50.8,76.2,127(5") 76.2,76.2,152.4(6") |
Quilting Width | 2450mm |
Needle Space | 25.4mm |
Stitch | 3-8mm |
X-axis movement | 304.8mm |
Quilting Thickness | 80mm |
Output Speed | 60-300m/h |
Rotation Speed | 500-1200rpm |
Feature:
1. Industrial initiative of upper and bottom thread toggle slice transmission, automatic oil supplied system, can better improve the work efficiency and service life of parts.
2. Advanced computerized control system and mechanical manufacturing process, increase machine performance, speed ,output.
3. Needle and platen adopts double rocker mechanism without CAM avoid the lube and dirty the fabric effectively
4. The top and bottom thread come with thread break detectors.
5. Main shaft frequency conversion control ,automatic needle saddle and roller adopt high performance servo drive
6. Computerized numerical control speed ,maximum speed is 1100rpm stitch length 2-8mm
7. 360degrees freedom designs and independent designs available
8. The new generation computerized control system ,quilting high precision without too much modified pattern .
9. Editing the method of CAD drawing ,easy to learn,drawing precision.
10. Quilting length can be set after the completion of the set down ,and can automatically return to Zero
11. Infared sensor automatically stop, more secure the operating.
12. Auto-track operated pattern,the running status detection automatically ,the machine running status in control.
Our Service:
1. Standard export wooden case packing or pack with customers request
2. Payment type :T/T ( Confirm contract 30% deposit ,70% balance before delivery)
3. OEM OR ODM service can be supplied .
