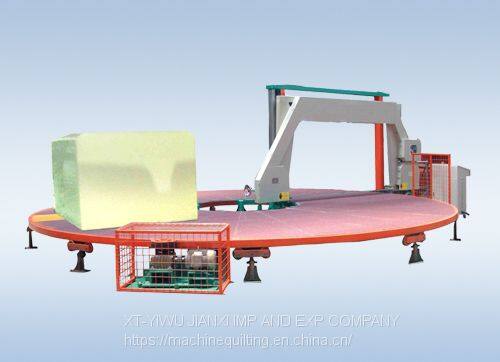

Carrousel Splitting Foam Machine
Product Description:
XYP-60/70/100 carrousel-splitting foam machine adopts the advanced imported controlled techniques drive. This machine is mostly used for much quadrate foam once flatly slicing. It can be cut continuously, which makes the productivity more efficiency. Besides, we succeed to develop a latest and huge carrousel splitting machine, which is a big diameter 10.5m in China. It can be cutting the bigger quadrate foam in W2.15XL14.5m continuously.
(This machine can be matched working with vacuum equipments)
Technical Specification:
Model |
XYQ-60 |
XYQ-70 |
XYQ-100 |
Cutting foam size |
W1.5×L2×H1.2m(4pcs) |
W1.5×L2×H1.2m(5pcs) |
W1.5×L2×H1.2(8pcs) |
Max. cutting size |
W1.5×L2×H1.2m(4pcs) |
W2.15×L3×H 1.2(3pcs) |
W2.15×L4.5× H1.2(3pcs) |
Total power |
8.12kw |
8.92klw |
10.52kw. |
Worktable turning speed |
0~3.5r/min |
3~3.0r/min |
0~2.0r/min |
Blade perimeter |
8940mm |
10000m |
10240mm |
Dia. Of working table |
￠6m |
￠7m |
￠10.5m |
Slicing thickness |
2~150mm |
2~150mm |
2~150mm |
Machine weight |
3300kg |
3500kg |
3800kg |
Machine dimension |
L6.9×W6×H2.4m |
L7.9×W7×H2.4m |
L11.5×W1.1× H2.4m |
