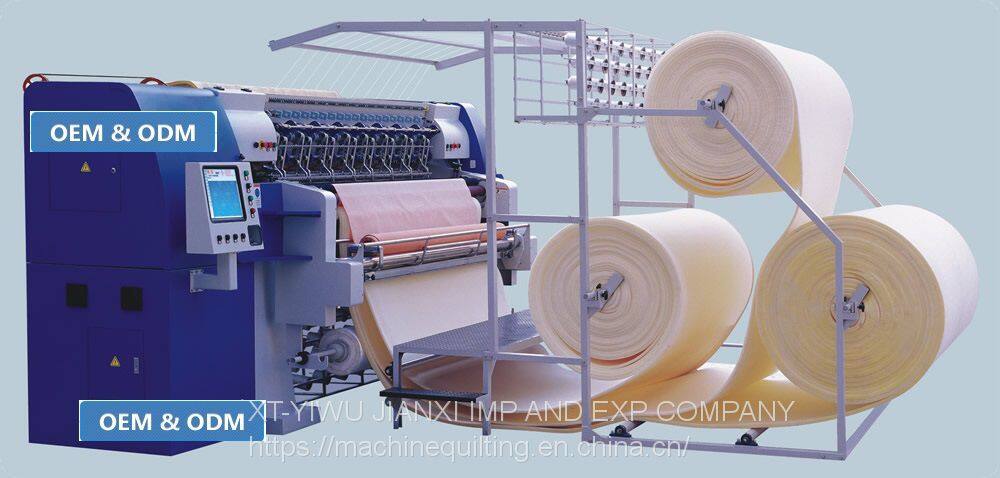

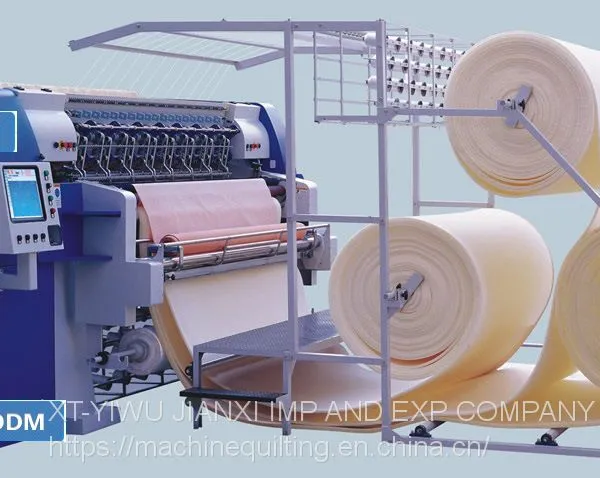

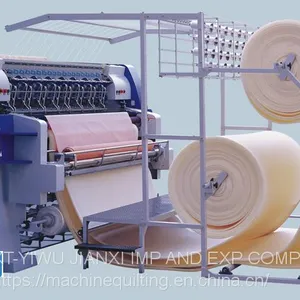

CS2500 High speed computerized multineedle shuttle less quilting machine (180° standard pattern and 360° tack & jump pattern )

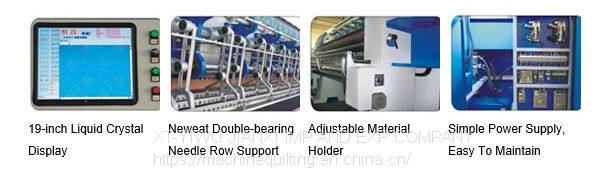

SPECIAL FUNCTION:
·New Fabric loading design. Easy loading material.
·Tilted body design. Easy to operate and maintain.
·Thread brake detector
·Using air cylinder for thread cutting tail length
·Operated using high quality sealed bearings that do not need lubrication.
·Adjustable presser foot lifting mechanism enables you to quilt a broad range of material thickness.
·Emergency safety devices
·Improved quilting software control system allows more precise and stable quilting operations.
·CAD Pattern drawing ,pattern system allows you to create your own designs.
·Machine comes with 100-300 design patterns.
·Error problem detection system.
·Pattern compensation.
Technical Specification:
Size (length*width*height) |
5200X1500X2000(mm) |
Weight |
4500kg |
Quilt width |
2450mm |
Rotation speed |
600-1200RPM |
Production speed |
80-230m/h |
Needle type |
140/22, 160/23, 180/24 |
Needle arrangement |
(50.8,76.2,127) (76.2,76.2,152.4) |
Max. horizontal movement |
450mm |
Needle space |
25.4mm |
Power supply |
380V/220V 50Hz/60Hz |
Stitch size |
2-7 mm |
Power |
7 KW |
Quilting thickness |
≤80mm |
Feature Icon:
Applications:
Mattress panel, mattress pads, bedspreads, comforters, bedding, upholstery, and more.
