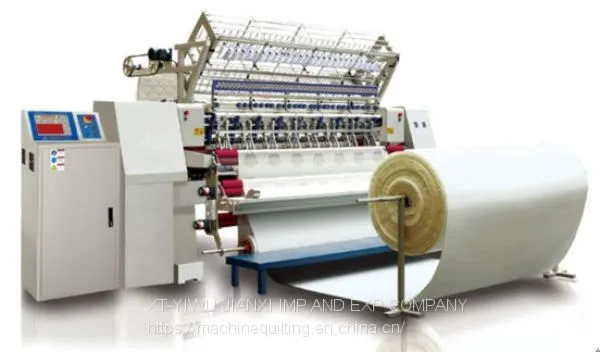

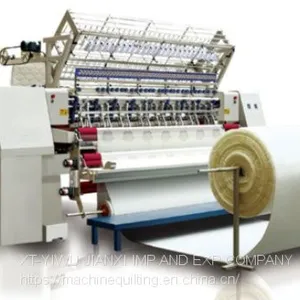

HY high-speed automatic quilting and embrodery machine series
Purpose:It is widely used for quilting high-quality garments, quilt covers,vanity,gloves,sleeping bag, pajamas,bed spread,seat cover, plus material and household ornam
Note:When you order, please make sure the type of the bobbin, 10# or 7#.
Detail Information:
· Needle bar and press plate are connected by cam-free double-swinging device, which is with high precision and durable. This structure can avoid lubrication and dirty material effectively.
High rigidity machine body and structure can make the machine running faster and more stable.
· Adopting the new structure of press plate’s adjusting makes the machine much simple.
· Multi-span independent pattern (360°and 180° patterns are available)
· Advanced and practical up thread-break detection unit
· Computerized automatic needle-lifting speed adjustment
· New generation of CNC system, advanced machine structure, high precision quilting, dispense with too much parameter adjustment or pattern modification during quilting
· Easy preparation of CAD drawing extremely precise
· Different patterns in each line can be quilted on 3.2 m fabric and patterns can strongly combine
· Able to quilt simple embroidery patterns
· Fault detecting and indication enabling fast fault correction and return operation
Parameter(Unit mm)：
Parameter(Unit mm) |
HY-64-3A |
HY-94-3 |
HY-128-3A |
Dimension(L×W×H): |
3350 1160 1750 |
4500 1160 1750 |
5350 1160 1800 |
Quantity of needle bar: |
3 |
3 |
3 |
Quilting width: |
1600 |
2450 |
3300 |
Space between needle rows: |
76.2,152.4 |
76.2,152.4 |
76.2,152.4 |
Space between needles: |
25.4 |
25.4 |
25.4 |
X-axis movement displacement: |
203.2 |
305 |
305 |
Thickness of quilting: |
≤25 |
≤25 |
≤25 |
Stitch length: |
2~5 |
2~5 |
2~5 |
Speed of production(m/h) |
20-100 |
20-100 |
20-90 |
Model of needle: |
16#,19# |
16#,19# |
16#,19# |
Speed of main shaft(RPM): |
220~500 |
220~500 |
220-500 |
Total power required: |
4.5KW |
4.5KW |
5.5KW |
Voltage: |
380V/50HZ 220V/60HZ |
380V/50HZ 220V/60HZ |
380V/50HZ 220V/60HZ |
Gross weight: |
2500kg |
3800kg |
4500kg |
