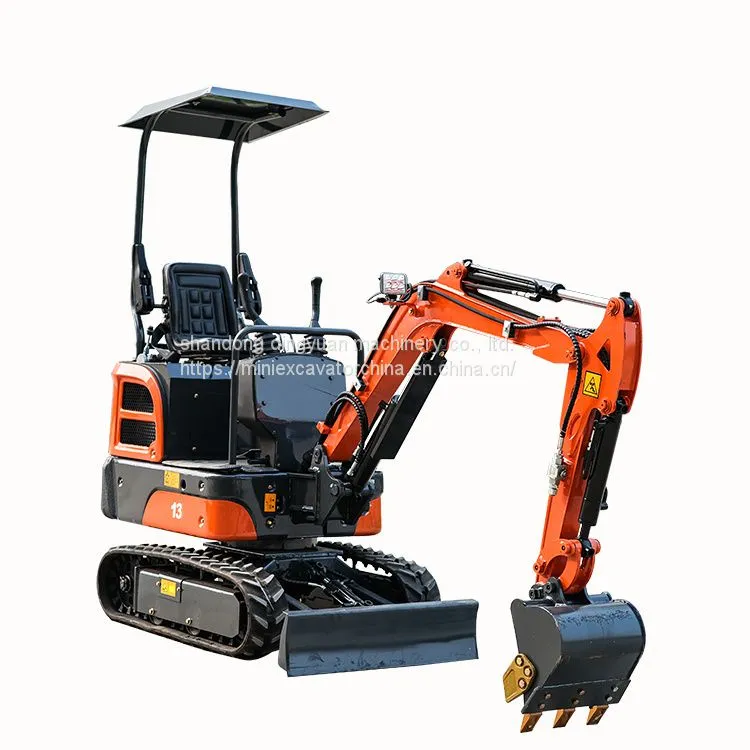

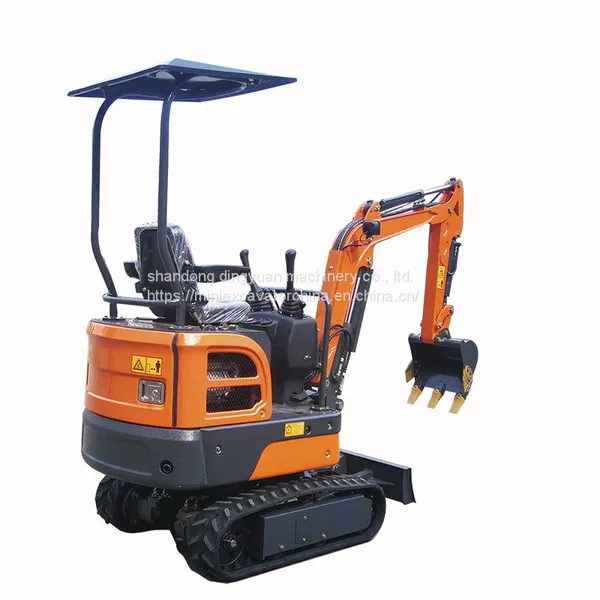

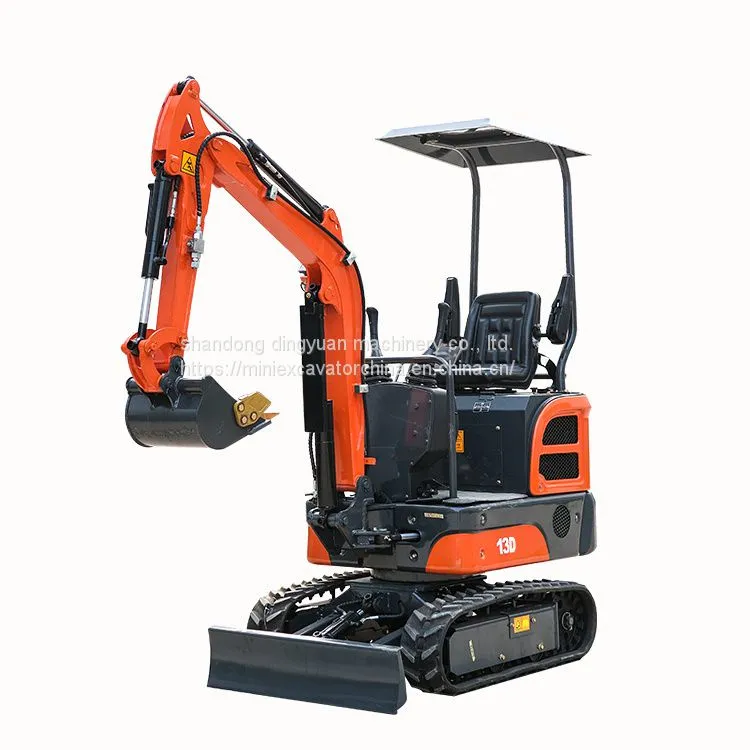

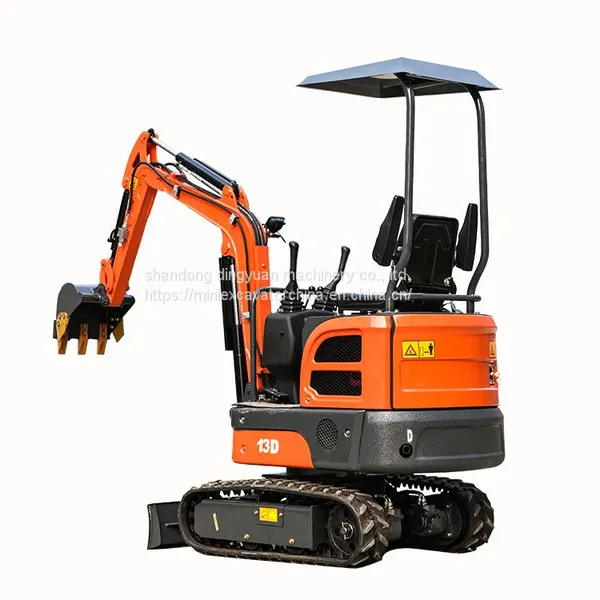

CE CERTIFIED 1.2 TON EXCAVATOR FOR SALE

Codename

Code item

Code size

A

Total length

2780mm

B

Total height

2150mm

C

Overall width

930mm

D

Track width

180mm

E

Platform turning radius

883mm

F

Track length

1195mm

G

Wheelbase

845mm

H

Ground clearance

150mm

I

Total boom height

1107mm

J

Platform width

800mm

K

Platform height from the ground

430mm

SD13D hydraulic excavator operating range

Codename

Code item

Code size

A

Maximum digging height

2637mm, （2930mm with bulldozer）

B

Maximum unloading height

2170mm

C

Maximum vertical digging depth

1336mm, ( 1552mm with bulldozer)

D

Maximum digging radius

3072mm

DI

Maximum ground level digging distance

3300mm

E

Digging radius of maximum digging height

2200mm

F

Minimum radius of gyration

1425mm

G

The maximum depth of the bulldozing board from the ground

170MM

H

The maximum height of the bulldozing board from the ground

185MM

1

Engine model

Kubota, D722-EF11 crude oil engine)/KP192F

2

Power

10.2kw/2500rpm(8.6KW/300RPM)

3

Work pressure

16 MPa

4

Maximum digging force of bucket

6.5 KN

5

Gradeability

25°

6

Ground pressure

35Kpa

7

Walking speed

2. lkm/h

8

Main pump flow

25 (L/Min)

9

Platform rotation speed

13rpm/Min

10

Bucket capacity

0.025

11

Boom swing angle

Lift :42°/ Right： 62°

12

Machine Weight

1035 KG
