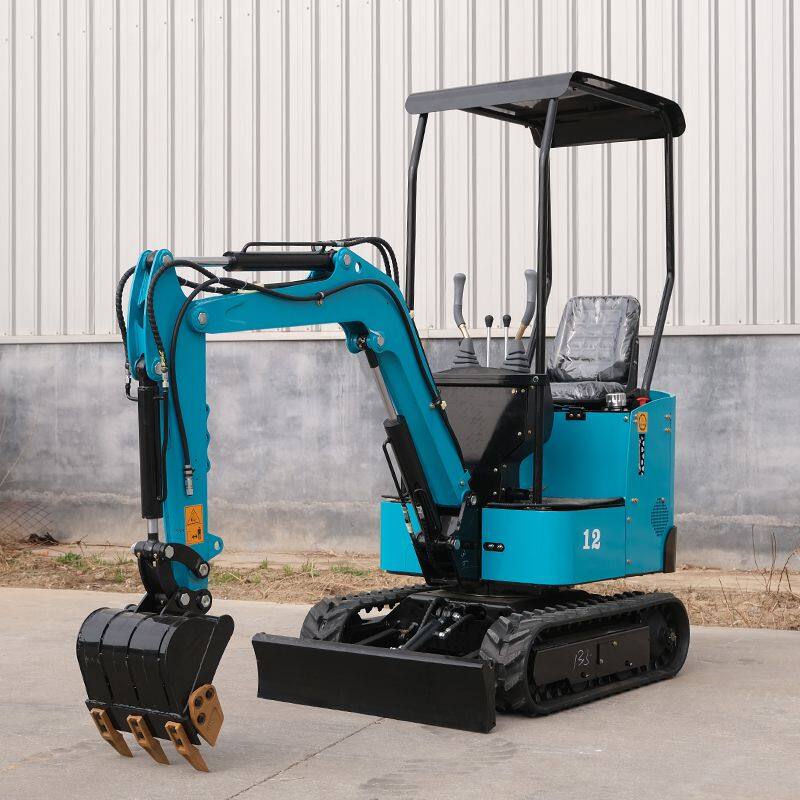

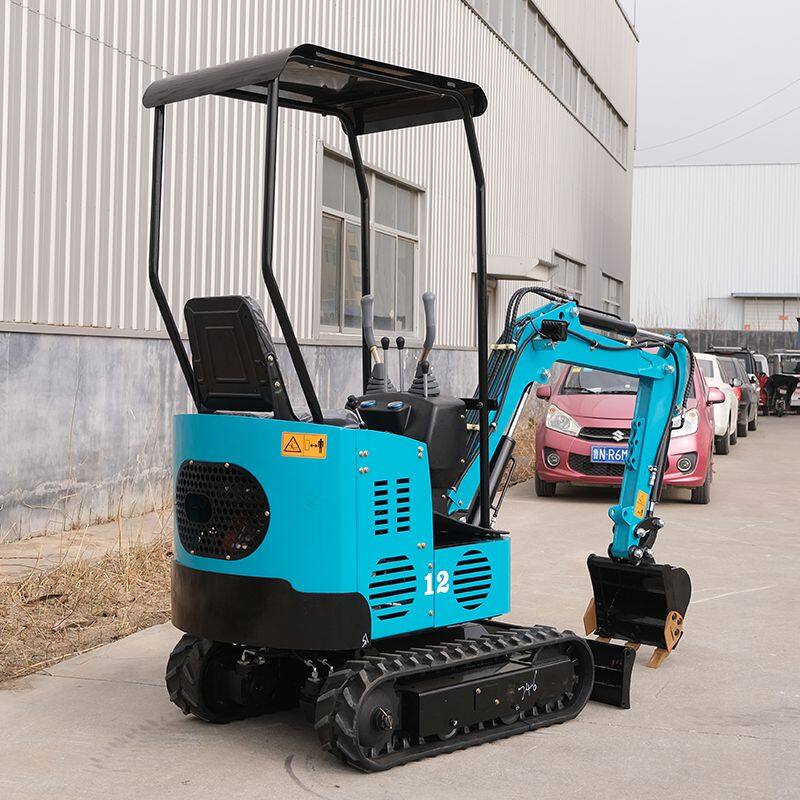

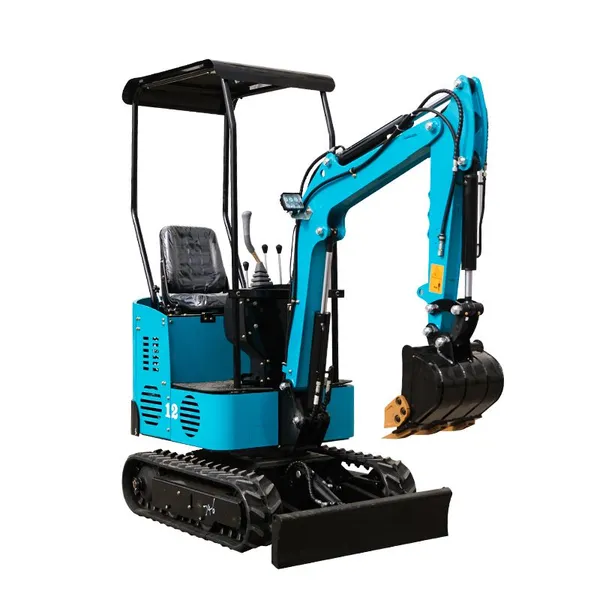

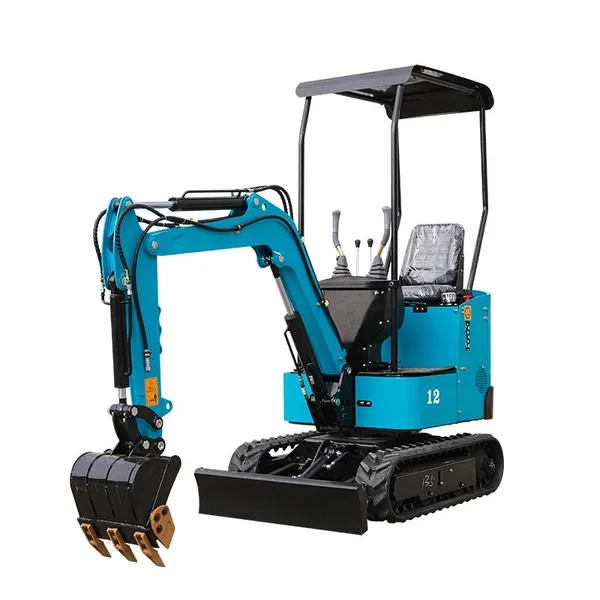

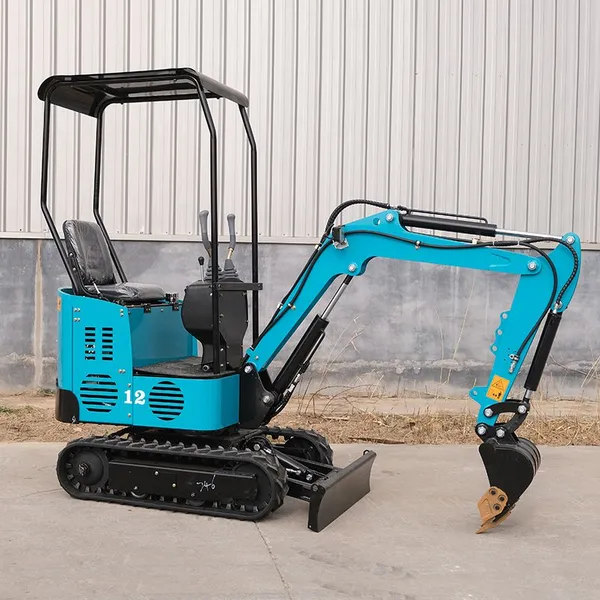

1 Ton Garden Excavator For Sale
The smallest hydraulic excavators (with seats for operators) indeed are small. They are narrow and short enough to be driven through doorways. They’re powered by engines of 10 to 15 hp and weigh just a ton, more or less. By every definition, these are compact machines. While their market share is compact, too, it is growing larger.
DATA SHEET:
| Model No | SD12C |
| Bucket Capacity | 0.025m³ |
| Chassis width | 930mm |
| Track grounding length | 1250mm |
| Climbing ability | 40° |
| Min Ground Clearance | 385mm |
| Track width | 180mm |
| Tank capacity | 3.5L |
| Overall dimension | 2200*930*2200mm |
| Transport length | 2200mm |
| Excavator height | 2200mm |
| Hydraulic flow | 40L/min |
| Hydraulic tank volume | 16L |
| Working pressure | 16Mpa |
| Engine Model | KP192 |
| Rated Power | 13.5HP |
| Maximum excavation height | 2550mm |
| Maximum tipping height | 1600mm |
| Maximum excavation depth | 1650mm |
| Maximum excavation radius | 2400mm |
| Radius of rotation | 1190mm |
| Bucket digging force | 11KN |
| Vehicle weight | 950kg |

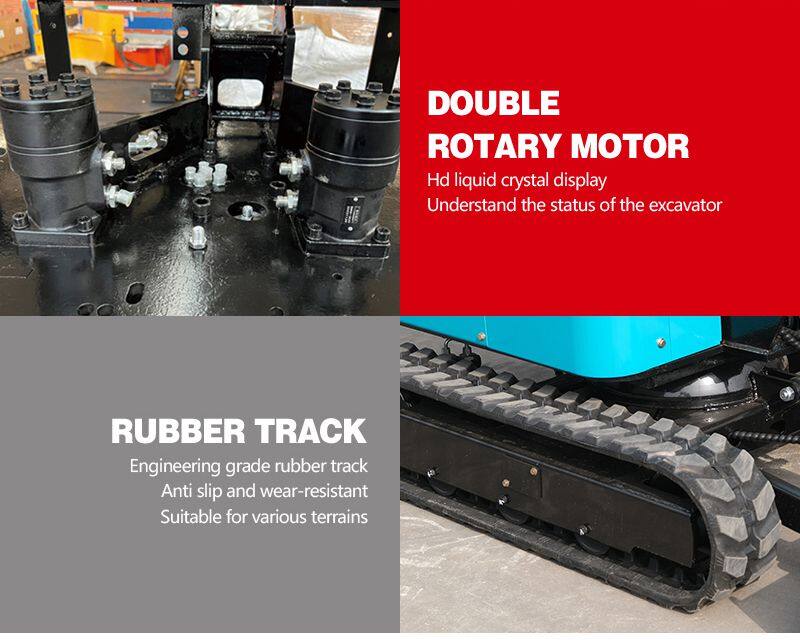

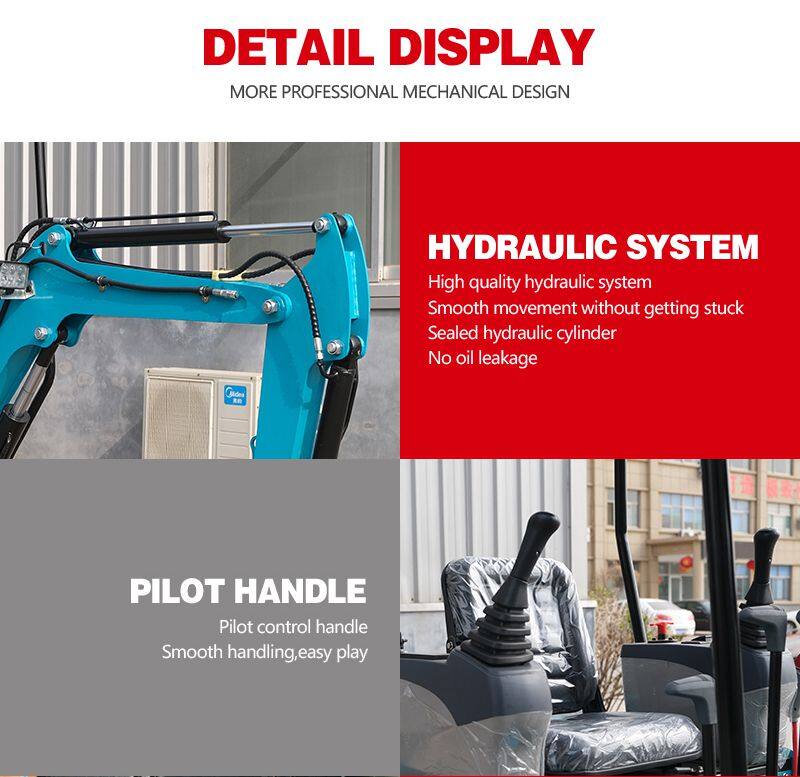

ADVANTAGES:

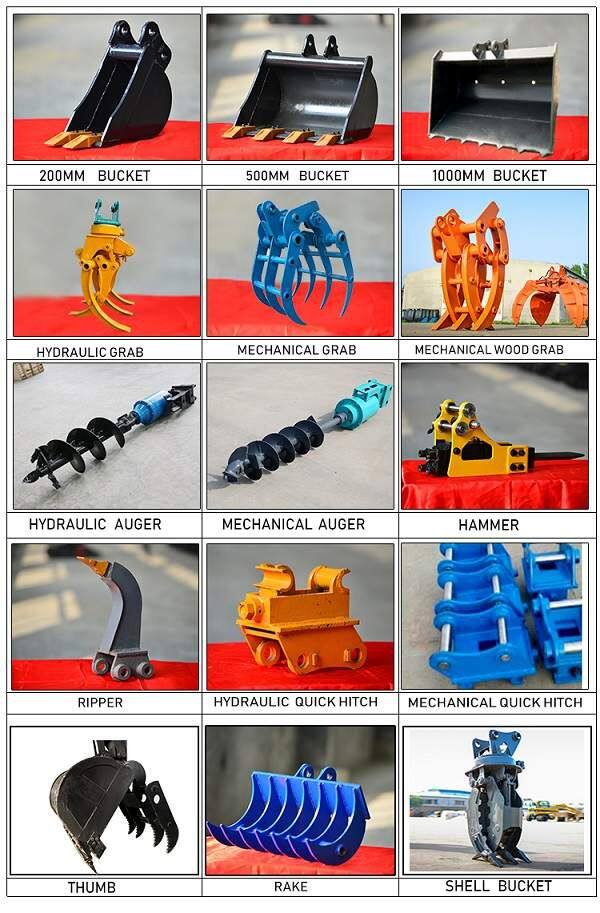

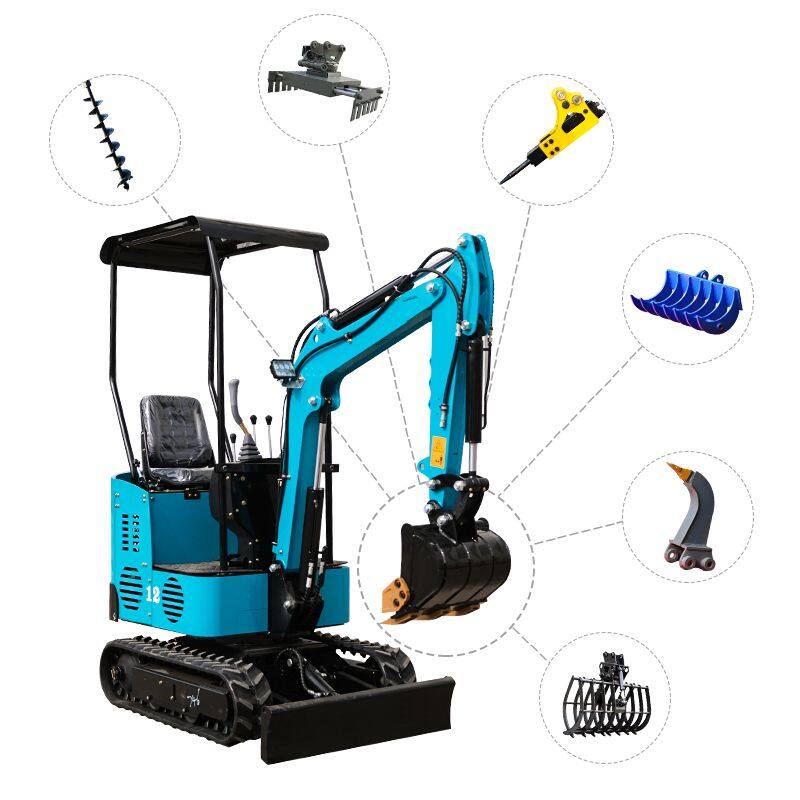

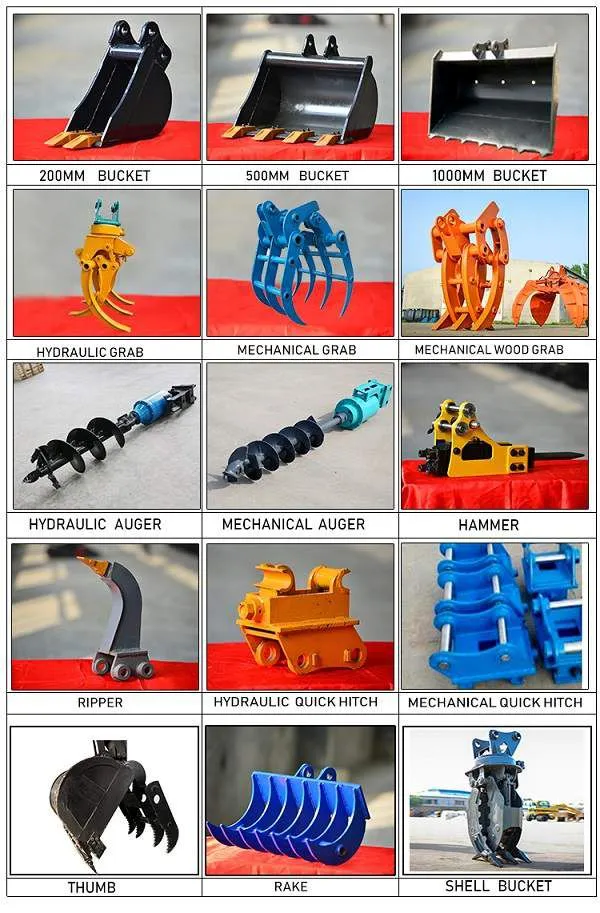

OPTIONAL ACCESSORIES:

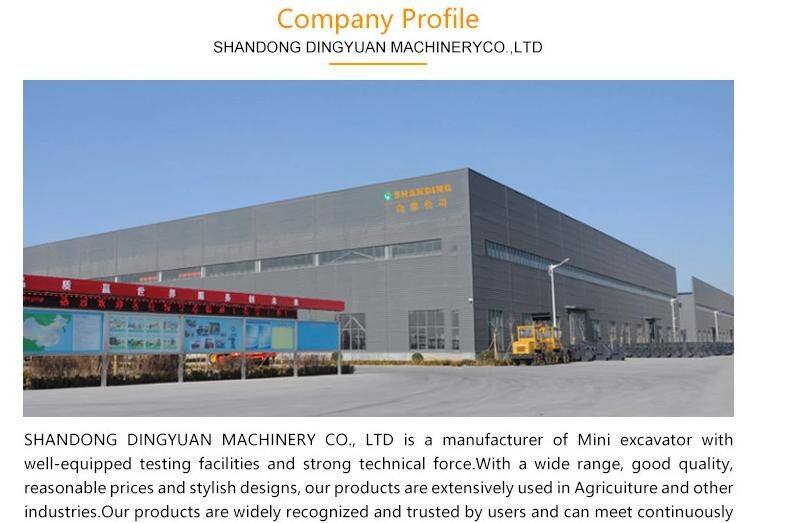

OUR FACTORY:
Send Inquiry to This Supplier
