2.5 TON TAILESS EXCAVATOR WITH BOOM SWING AND CABIN FOR SALE

2.5 TON TAILESS EXCAVATOR WITH BOOM SWING AND CABIN FOR SALE thumbnail-1
2.5 TON TAILESS EXCAVATOR WITH BOOM SWING AND CABIN FOR SALE thumbnail-2
2.5 TON TAILESS EXCAVATOR WITH BOOM SWING AND CABIN FOR SALE thumbnail-3
2.5 TON TAILESS EXCAVATOR WITH BOOM SWING AND CABIN FOR SALE thumbnail-4
2.5 TON TAILESS EXCAVATOR WITH BOOM SWING AND CABIN FOR SALE thumbnail-5
2.5 TON TAILESS EXCAVATOR WITH BOOM SWING AND CABIN FOR SALE photo-1

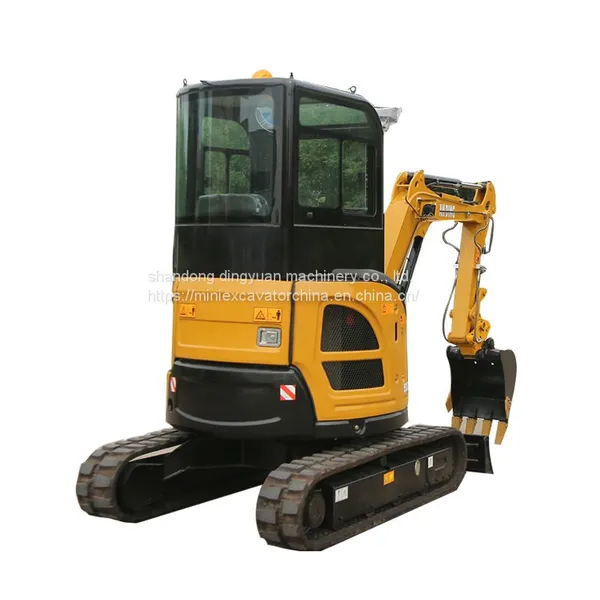

2.5 TON TAILESS EXCAVATOR WITH BOOM SWING AND CABIN FOR SALE photo-2

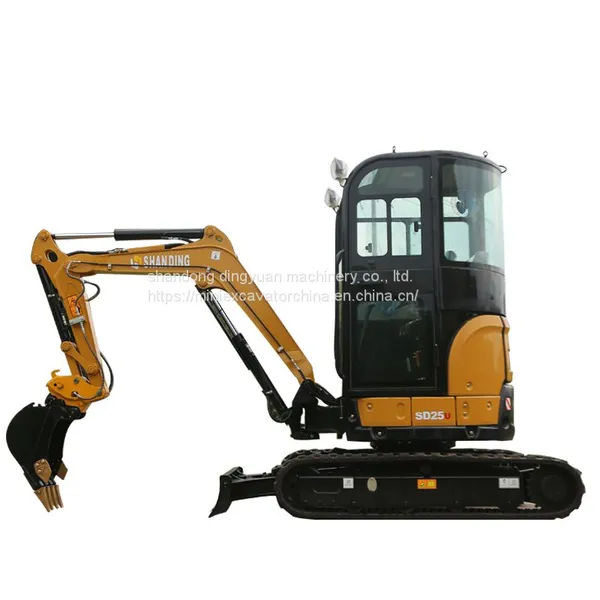

2.5 TON TAILESS EXCAVATOR WITH BOOM SWING AND CABIN FOR SALE photo-3

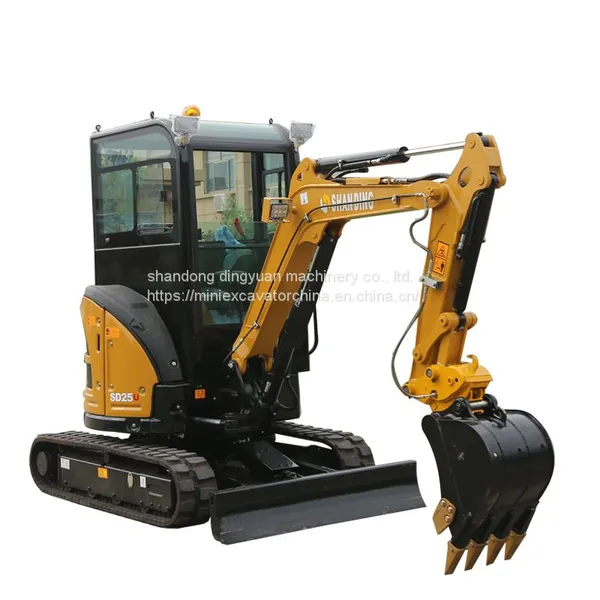

2.5 TON TAILESS EXCAVATOR WITH BOOM SWING AND CABIN FOR SALE photo-4
2.5 TON TAILESS EXCAVATOR WITH BOOM SWING AND CABIN FOR SALE photo-5
US$ 17200 - 18850 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SHANDING
Place of Origin:
China
Model Number:
SD25U
Contact Supplier Request Quote Chat Now
Shandong Dingyuan Machinery Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
QIMGDAO,CHINA
Delivery Detail:
20 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SHANDING
Place of Origin China
Model Number SD25U
Certification CE EAC
After-sales Service Provided No overseas service provided
Condition New
Machine Weight 2480KG
Moving Type Crawler Excavator
Rated Speed 2.5KM/H
Max Digging Radius 4150MM
Maximum Digging Depth 2550MM
Maximum Digging Height 4300MM
Bucket capacity 0.06M3
Operating Weight 2500KG

SD25U  CE CERTIFIED  EARTH MOVING MACHINERY  EPA &EURO V STANDARD 2.5 TON MINI EXCAVATOR FOR SALE

Excavators are also called diggers, mechanical shovels, or 360-degree excavators (sometimes abbreviated simply to "360"). Tracked excavators are sometimes called "trackhoes" by analogy to the backhoe.Zero tail swing gives you better maneuverability on the most restricted jobsite. Choose an excavator with the ideal combination of horsepower, dig depth, arm configuration and tail swing style for your work. Add specialized attachments that do more than dig, and maximize productivity on every project you can take on, no matter how big or small.SD25U is a perfect excavator,a real tailess excavator;boom swing,closed cabin;uses perkins/yanmar engine;plunger pump;
double speed motor;can work with hammer,auger,rake,grab etc.

MAIN PARAMETERS:

             Engine

      Travel System

ENGINE MODEL

Perkins403J-11

Travel Motor

 LTM03CJ

Cooling system

WATER-COOLING

Support roller quantities

2×3

Carrier roller quantities

2×1

Cylinder

3

Track shoe

Rubber track



Bore and stroke

77x81(mm)



Max Travel Speed

High /Low Speed：4.1 /2.3 km/h,

Displacement

1.13L

Drawbar pulling force

13.8kN

Rated Power

14.7kw/2200rpm

Max Grade

58%(300)

Max. torque

66.8N.m/1900rpm

Track shoes thickness

Rubber track:65mm，

Steel Track：72mm

       Hydraulic System

  Cab & Electrical System

Pump

Taifeng-loading sensitive pump

Cab

Roof/cabin

Pump Model

TFA10VSO18DFLR/31R-PSA12NOO

Max Flu

62 (L/min)

Main Valve

TRM10-BX-08-ZH-02

Taifeng-loading sensitive valve

l pilot

flag-up  FPJ-B2

Max. discharge pressure

Boom, arm and bucket

21 MPa

Voltage

12V

Travel circuit

12 V

Batteries

1X12V

Swing circuit

12V

Battery capacity

45Ah

Control circuit

12V

Boom, Arm ＆ Bucket

Pilot control pump

4 MPA

Boom cylinder

Φ85xΦ70xΦ40*S455-L785

Main control valves

21 Mpa

Arm cylinder

Φ80xΦ65xΦ40*S492-L765

Oil cooler

Air cooled type

Bucket cylinder

Φ70xΦ55xΦ35*S426-L670

       Swing System

 Refilling Capacity & lubrication

Swing motor

681-SW2.5K-245

Fuel tank

9L

Brake

No

Engine oil

3.4-4.4L

Max Rotary Speed

13 r/min

Hydraulic Oil Tank Capacity

39.5L

 Bucket

Type

Backhoe bucket

Bucket capacity

0.065m3 (SAE)

Bucket Capacity scope

0.028-0.09m3

Number of bucket teeth

4

Bucket width

450 mm

Working ranges



Boom length

2010mm

A

Max. digging height

3744mm

B

Max. dumping height

2670mm

C

Max. digging depth

2280mm

D

Max. vertical digging depth

2200mm

E

Max. digging distance

4155mm

F

Max. digging radius at ground level

4040mm

Digging Force (ISO6015)

Arm length

1285mm

A

Bucket digging force

17.6 KN

B

Arm digging force

12.5 KN

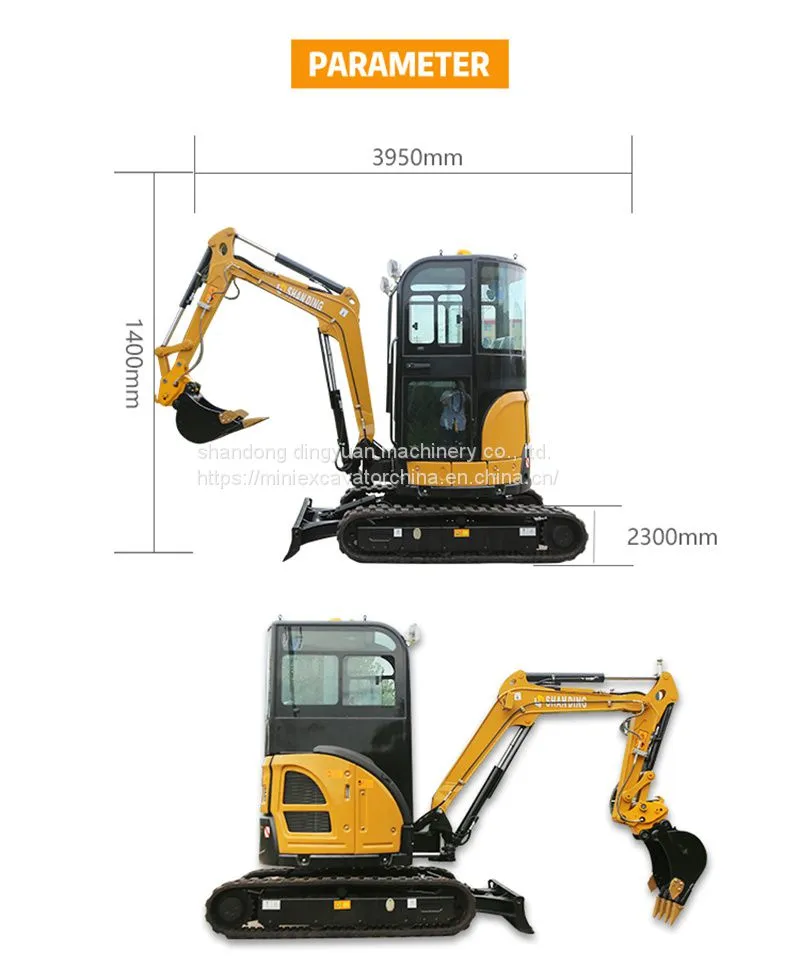

Overall Dimensions

A

Overall Length

3870mm

G

Tail swing radius

645mm

B

Overall Width

1420mm

H

Track grounding length

1530mm

C

Overall height(to top of boom)

1340mm

I

Track length

1895mm

D

Overall height(to top of cab)

2360mm

J

Track gauge

1510mm

E

Counter weight ground clearance

485mm

K

Track Shoe width

250mm

F

Min. Ground clearance

255mm

L

Revolving frame width

1350mm

          Operating Weight and Ground Pressure

Operating weight includes basic machine

Operating Weight

2450kg

Ground pressure

26 KPa

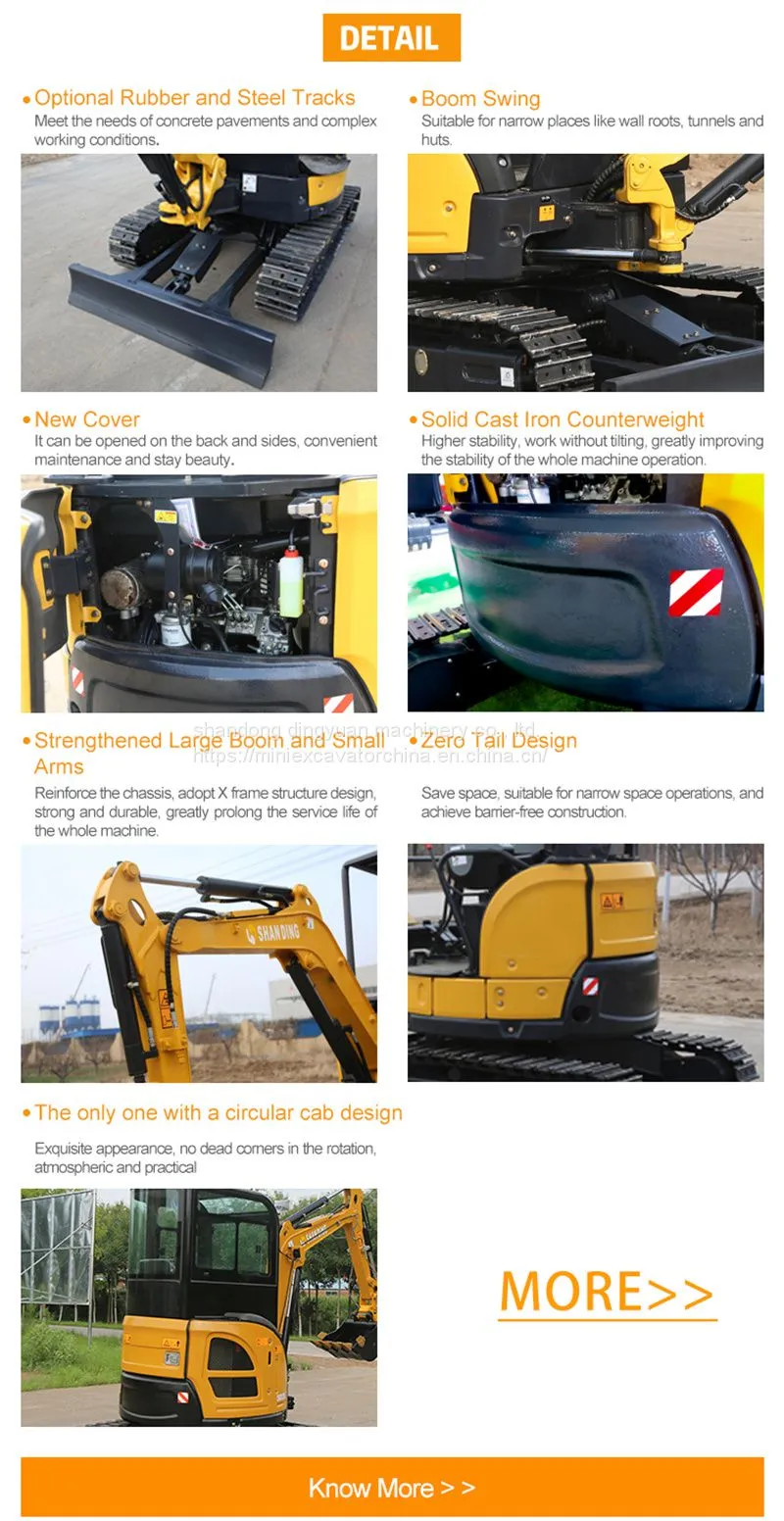

ADVANTAGES:

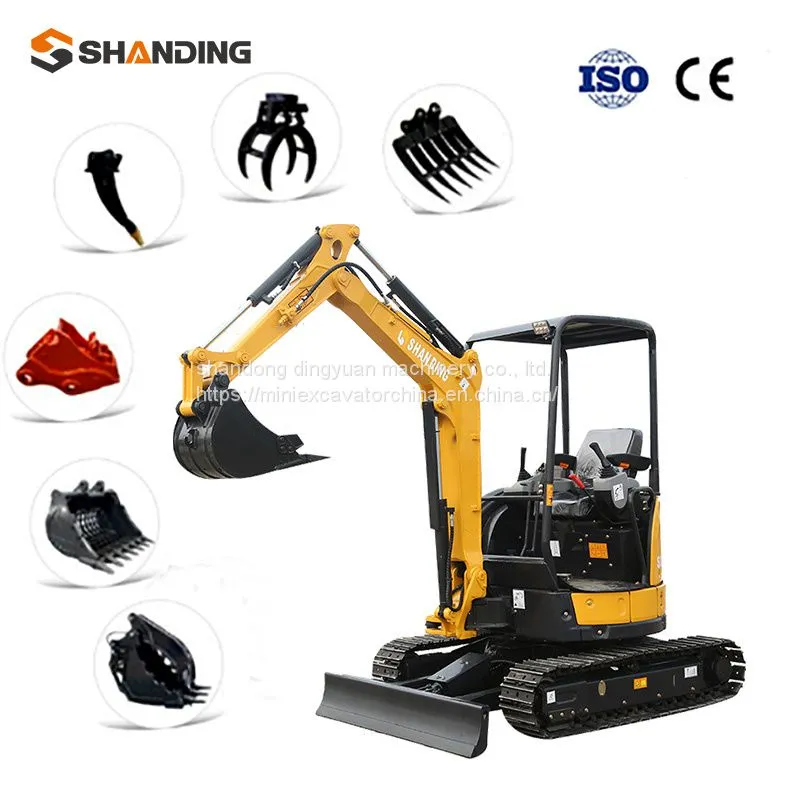

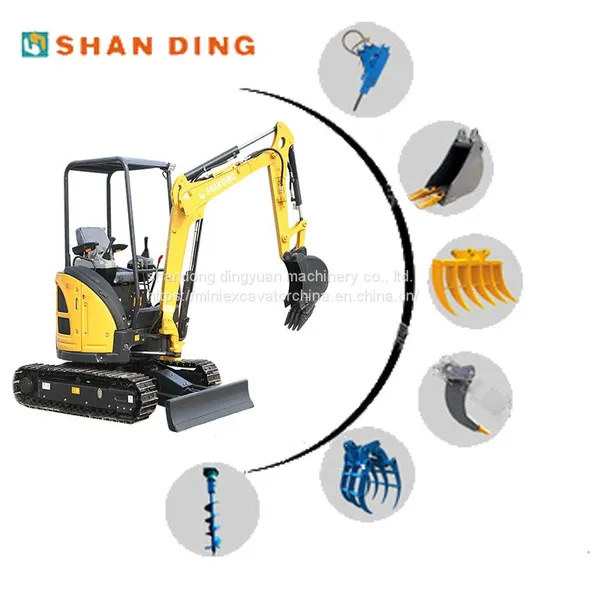

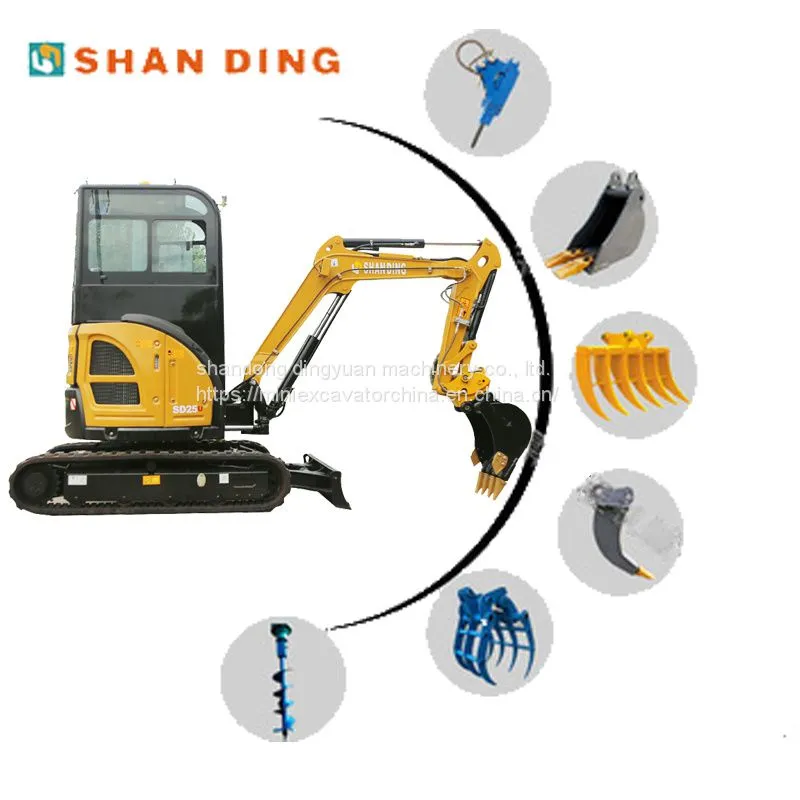

OPTIONAL ATTACHMENTS:

OUR FACTORY:
