Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Excavator > CE CERTIFIED 3 TON TAILESS EXCAVATOR WITH CABIN FOR SALE

CE CERTIFIED 3 TON TAILESS EXCAVATOR WITH CABIN FOR SALE

CE CERTIFIED 3 TON TAILESS EXCAVATOR WITH CABIN FOR SALE thumbnail-1
CE CERTIFIED 3 TON TAILESS EXCAVATOR WITH CABIN FOR SALE thumbnail-2
CE CERTIFIED 3 TON TAILESS EXCAVATOR WITH CABIN FOR SALE thumbnail-3
CE CERTIFIED 3 TON TAILESS EXCAVATOR WITH CABIN FOR SALE thumbnail-4
CE CERTIFIED 3 TON TAILESS EXCAVATOR WITH CABIN FOR SALE photo-1

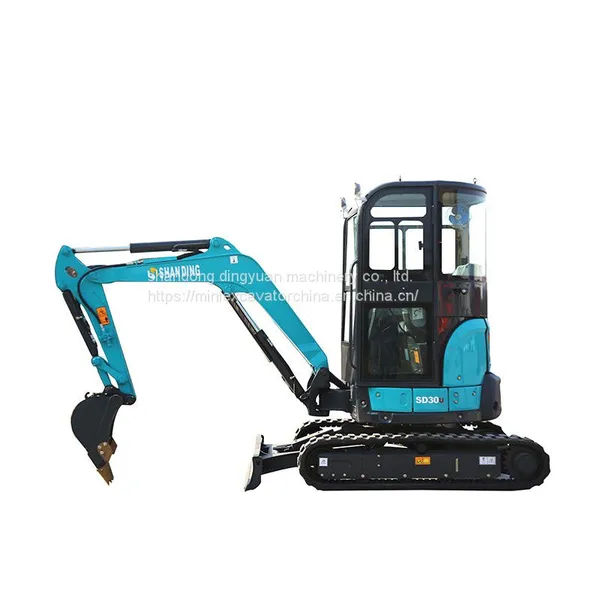

CE CERTIFIED 3 TON TAILESS EXCAVATOR WITH CABIN FOR SALE photo-2

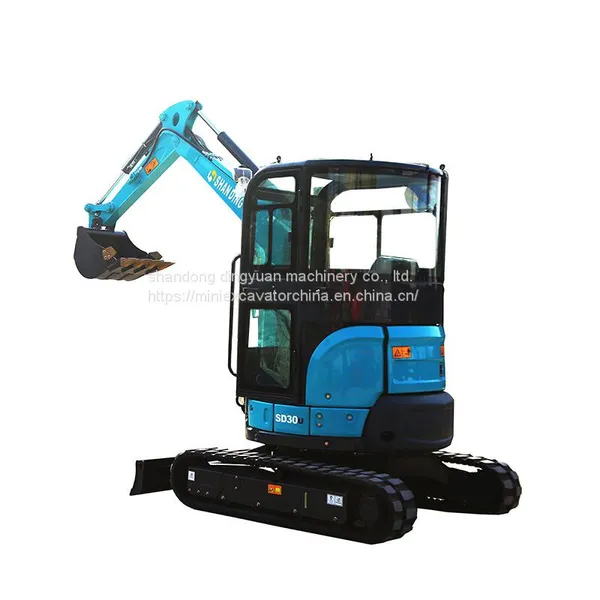

CE CERTIFIED 3 TON TAILESS EXCAVATOR WITH CABIN FOR SALE photo-3
CE CERTIFIED 3 TON TAILESS EXCAVATOR WITH CABIN FOR SALE photo-4
US$ 19150 - 20650 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SHANDING
Place of Origin:
China
Model Number:
SD30U
Contact Supplier Request Quote Chat Now
Shandong Dingyuan Machinery Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
20 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SHANDING
Place of Origin China
Model Number SD30U
Certification CE
After-sales Service Provided No overseas service provided
Condition New
Machine Weight 2850KG
Moving Type Crawler Excavator
Rated Speed 2.5KM/H
Max Digging Radius 4275MM
Maximum Digging Depth 2550MM
Maximum Digging Height 3865MM
Bucket capacity 0.075M3
Operating Weight 3000KG

SD30U  CE ISO Certified earth moving machinery epa and euro v standard mini digger 3 ton mini excavators for sale

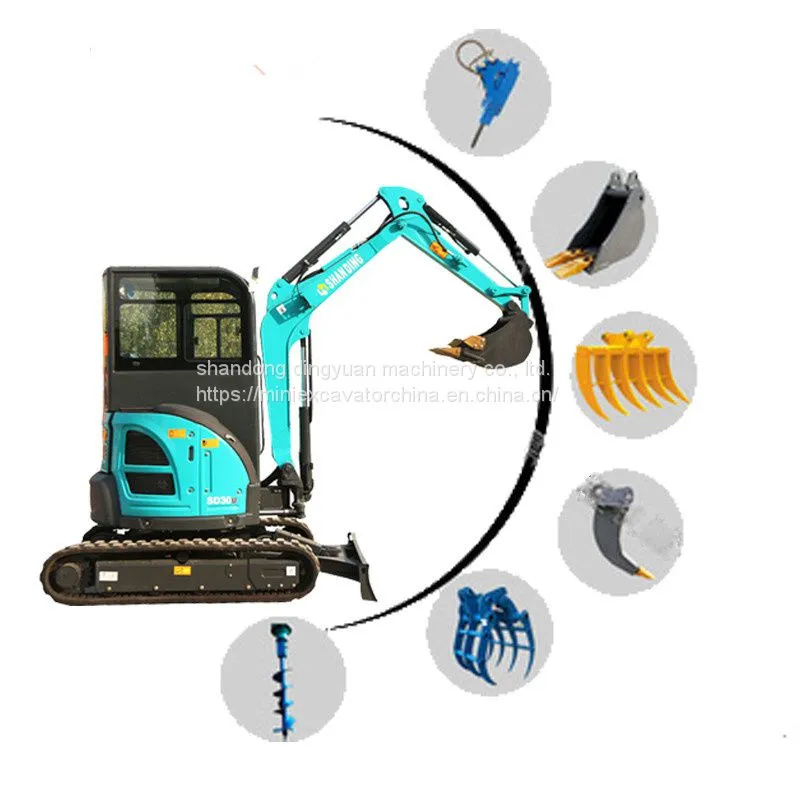

Excavators are also called diggers, mechanical shovels, or 360-degree excavators (sometimes abbreviated simply to "360"). Tracked excavators are sometimes called "trackhoes" by analogy to the backhoe. Zero tail swing gives you better maneuverability on the most restricted jobsite. Choose an excavator with the ideal combination of horsepower, dig depth, arm configuration and tail swing style for your work. Add specialized attachments that do more than dig, and maximize productivity on every project you can take on, no matter how big or small.ssdSD30U is a perfect excavator;a real tailess excavator; uses perkins/yanmar engine;plunger pump;double speed motor;with boom swing and closed cabin;it can work with hammer,auger,rake,grab etc.

MAIN PARAMETERS:

             Engine

      Travel System

Model

Perkins 403D-11/403J-11 EPA

Travel motors

LTM03CJ
Plunger double speed

Type

Water cooling, natural inhalation

Support roller quantities

2×3

Carrier roller quantities

2×1

No. of cylinder

3

Travel shoes

No



Bore and stroke

80x84(mm)



Travel speed

High speed：4.3km/h, Low speed：2.3km/h,

Displacement

1.267L

Drawbar pulling force

14.2kN

Power output

15.2kw/2200rpm

Gradeability

58%(300)

Max. torque

63-67.3N.m/1800rpm

Track shoes thickness

Rubber track 65mm，

Steel track：72mm

       Hydraulic System

  Cab & Electrical System

Pump

TAIFENG  Plunger pump

Cab

Sunroof

Type

Load sensitive

Max. discharge flow

62 (L/min)

Max. discharge pressure

Boom, arm and bucket

21 MPa

Voltage

12V

Travel circuit

12 V

Batteries

1X12V

Swing circuit

12V

Battery capacity

45Ah

Control circuit

12V

Outer diameter, inner diameter, piston rod diameter

Pilot control pump

4 MPA

Boom cylinder

Φ90xΦ75xΦ40*S455-L785

Main control valves

21 Mpa

Arm cylinder

Φ85xΦ70xΦ40*S492-L765

Oil cooler

Air cooled type

Bucket cylinder

Φ75xΦ50xΦ35*S426-L670

       Swing System

 Refilling Capacity & lubrication


Swing motor

NACHI

PCR-2B-10A-P-8486A

Fuel tank

32L


Swing motor type

Hydraulic driven gear rotary motor

Cooling system

9L

Brake

No

Engine oil

3.4-4.4L

Swing speed

13.5 r/min

Hydraulic oil tank

39.5L

 Bucket

Type

Backhoe bucket

Bucket capacity

0.075m3 (SAE)

Bucket Capacity scope

0.030-0.1m3

Number of bucket teeth

4

Bucket width

460 mm

Working ranges



Boom length

2150mm

A

Max. digging height

3865mm

B

Max. dumping height

2760mm

C

Max. digging depth

2560mm

D

Max. vertical digging depth

2440mm

E

Max. digging distance

4375mm

F

Max. digging radius at ground level

4275mm

Digging Force

Arm length

1388mm

A

Bucket digging force

18.6 KN

B

Arm digging force

13.5 KN

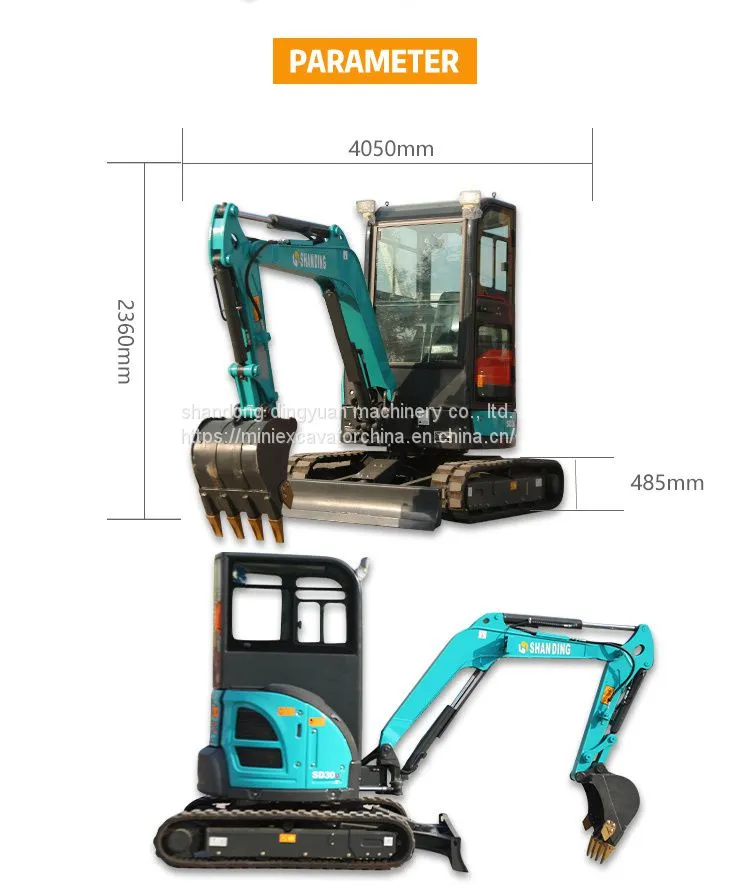

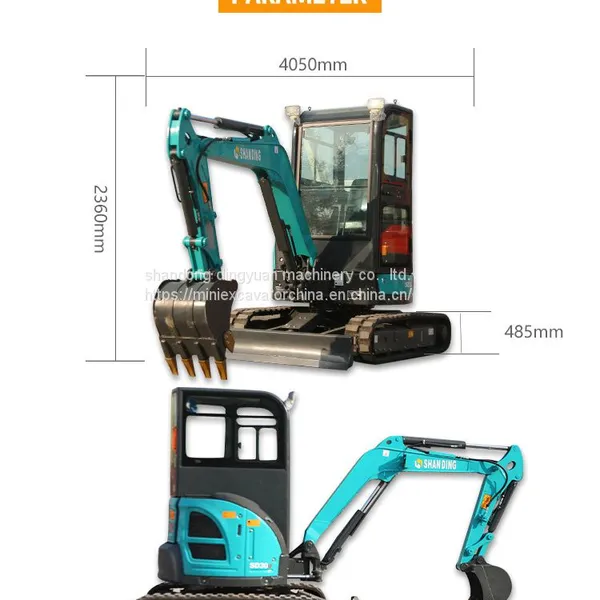

Overall Dimensions

A

Overall length

4050mm

G

Tail swing radius

710mm

B

Overall width

1540mm

H

Track grounding length

1530mm

C

Overall height(to top of boom)

1380mm

I

Track length

1895mm

D

Overall height(to top of cab)

2360mm

J

Track gauge

1510mm

E

Counter weight ground clearance

485mm

K

Track Shoe width

250mm

F

Min. Ground clearance

255mm

L

Revolving frame width

1350mm








Operating weight includes basic machine

Operating weight

2870kg

Ground pressure

26.7 KPa

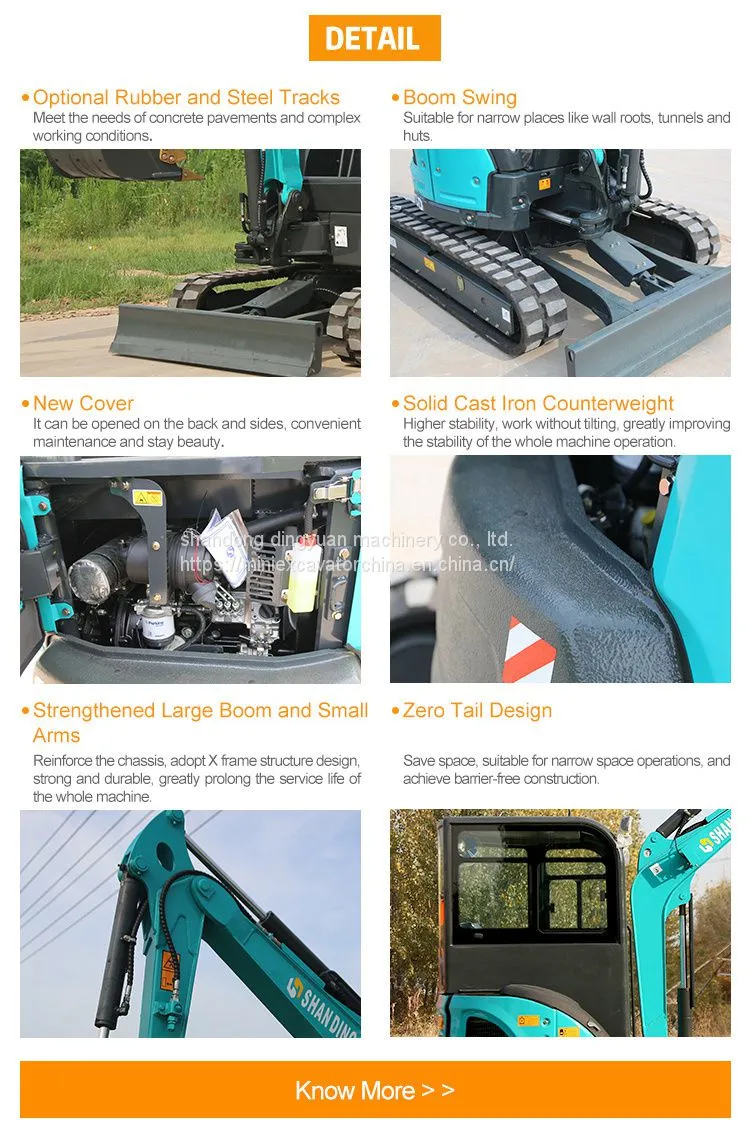

ADVAMTAGES:

OPTIONAL ATTACHMENTS:

OUR FACTORY:








Product Tags: EARTH MOVING MACHINERY , CHINA MINI EXCAVATOR , MINI EXCAVATOR ATTACHMENT , MINI EXCAVATORS , EXCAVATORS , MINI DIGGER , DIGGING MACHINE , EXCAVATOR MACHINE , SMALLEXCAVATOR
