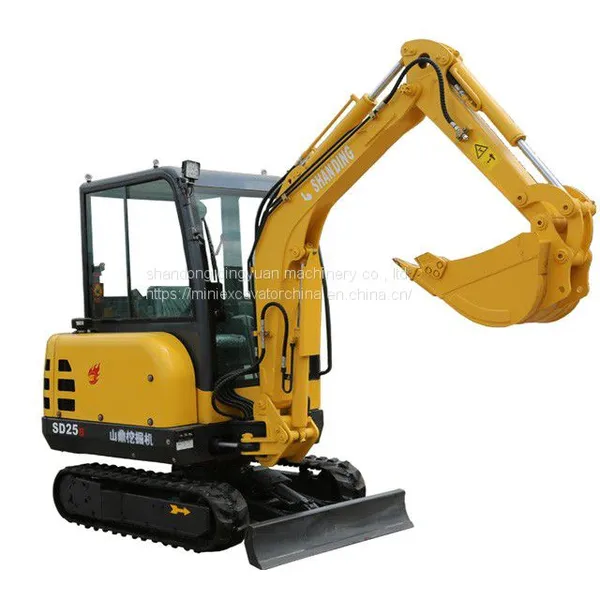

SD25B CE certified epa & Euro V standard 2.5 Ton Hydraulic Crawler Excavator 2500kg Mini Digger 2500 Kg Mini Excavators for sale

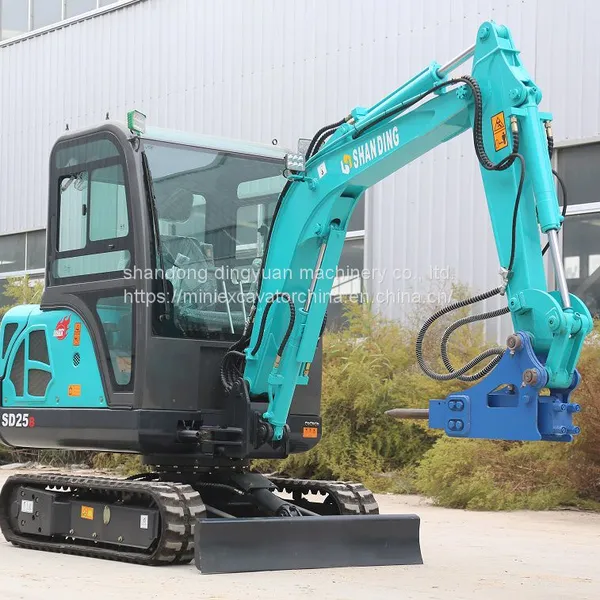

Excavators are also called diggers, mechanical shovels, or 360-degree excavators (sometimes abbreviated simply to "360"). Tracked excavators are sometimes called "trackhoes" by analogy to the backhoe. Choose an excavator with the ideal combination of horsepower, dig depth, arm configuration and tail swing style for your work. Add specialized attachments that do more than dig, and maximize productivity on every project you can take on, no matter how big or small.SD25B is a perfect excavator,it is a hydraulic excavator,It uses yanmar engine,nachi plunger pimp,husco valve,eaton motors, with closed cabin. it can works with hammer,auger,rake, ripper etc.
MAIN PARAMETERS:
Machine parameters | |
Model |
SD25B |
Operating Weight |
2.5 ton |
Bucket Capacity |
0.1m³ |
Rated Power |
24.5kw ,19.6kw,15.2 kw |
Max.Hydraulic System Pressure |
18mpa |
Max. Grade ability |
30° |
Max Walking Speed |
2.7km/h |
Max Digging Force |
19kn |
Platform Rotary Speed |
14 r/min |
Boom swing function |
OPTIONAL |

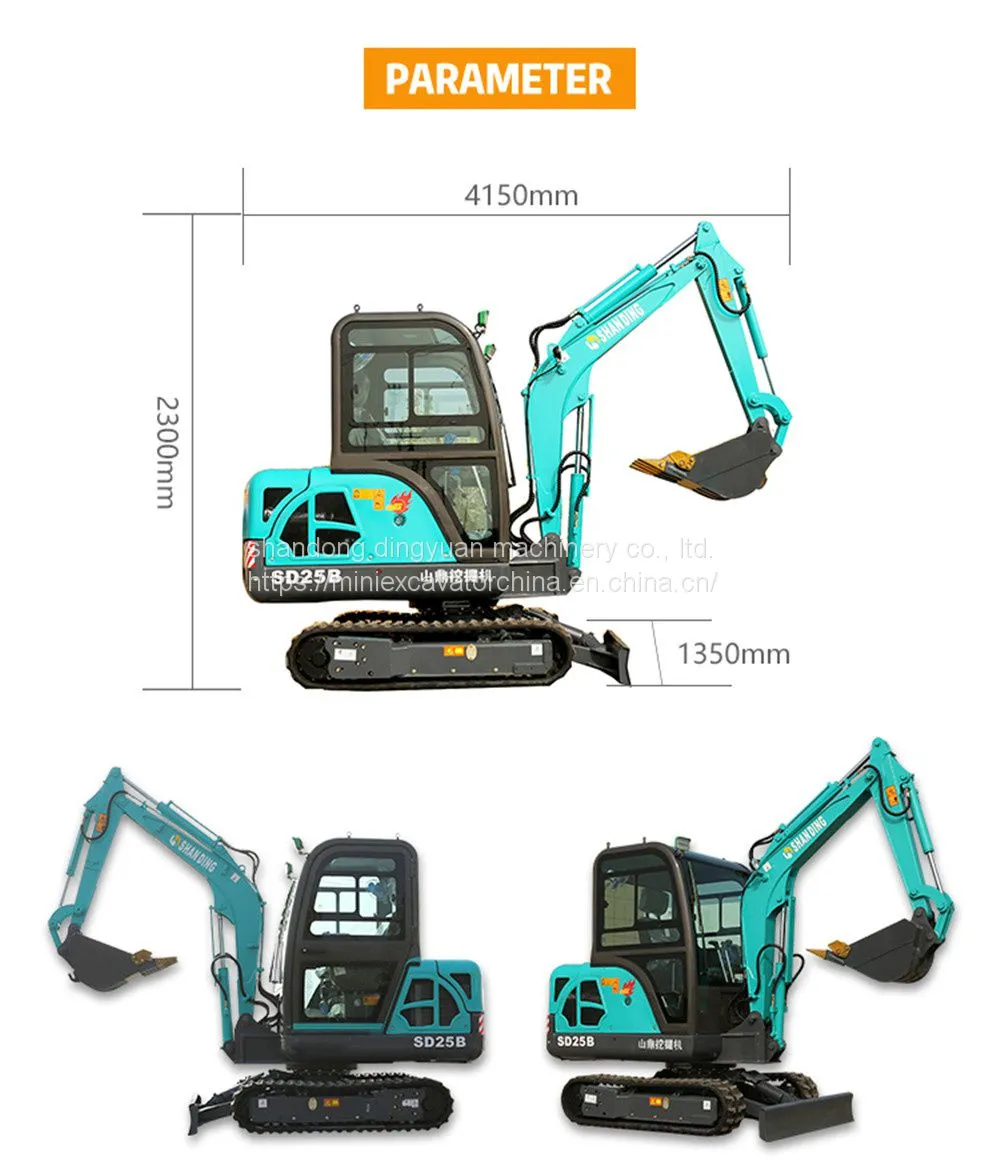

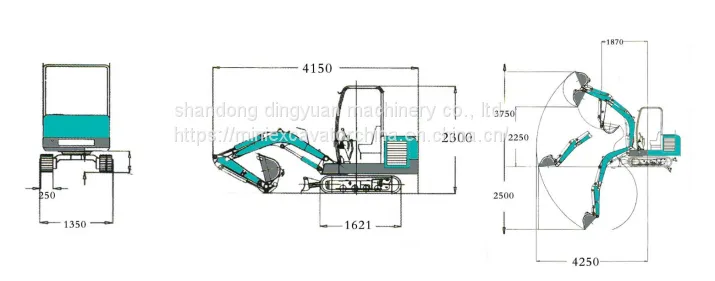

Dimensions | |
Overall Length |
4150mm |
Overall Width |
1350mm |
Overall Height |
2300mm |
Arm Length |
1100mm |
Boom Length |
2000mm |
Track Length |
1621mm |
Track Width |
250mm |
Platform Width |
1160mm |
Platform Ground Clearance |
500mm |
Bucket Width |
540mm |
Working range | |
Max. Digging Height |
3750mm |
Max Digging Depth |
2500mm |
Max. Digging Radius |
4250mm |
Max Dumping Height |
2250mm |
Platform turning radius |
1800mm |
Max. Sinking Depth of Bulldozer |
185mm |
Max. Lifting Depth of Bulldozer |
210mm |
Machine configure | |
Engine Model |
Changchai , Yanmar |
Main valve |
Husco |
Main Pump |
Futai (3 pumps system) |
Rotation Motor |
Eaton |
Walking Motor |
Eaton |

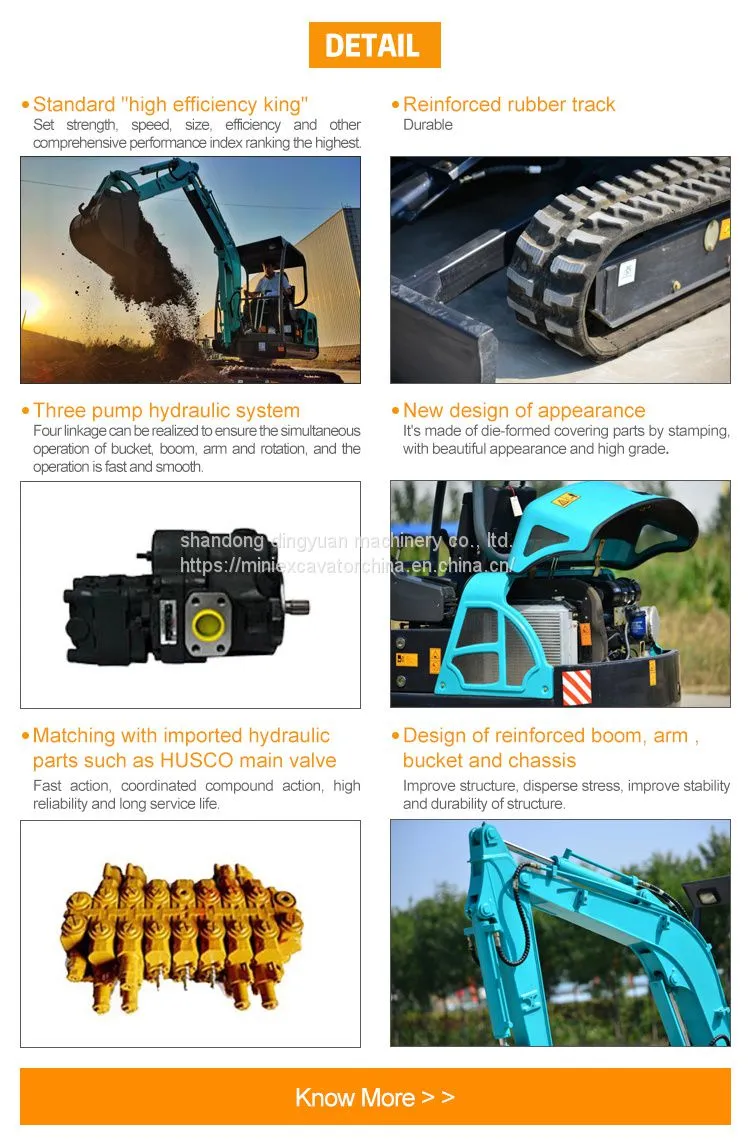

ADVANTAGES:

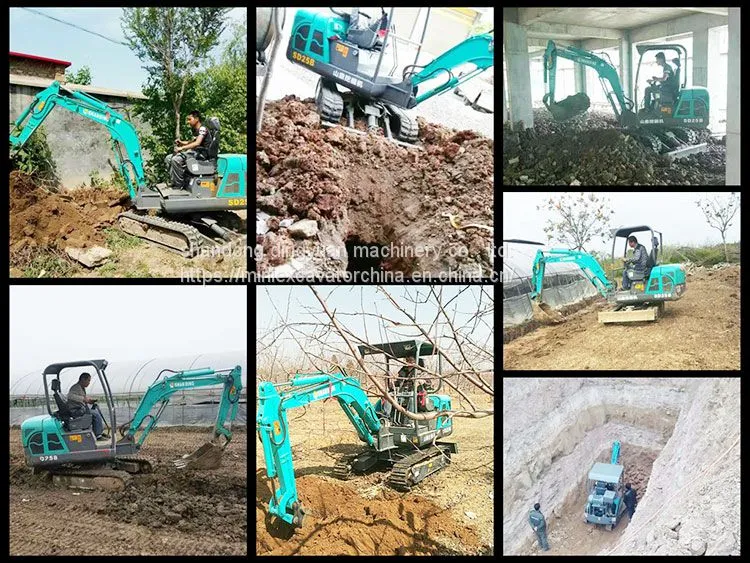

WORKINGSHOWS:

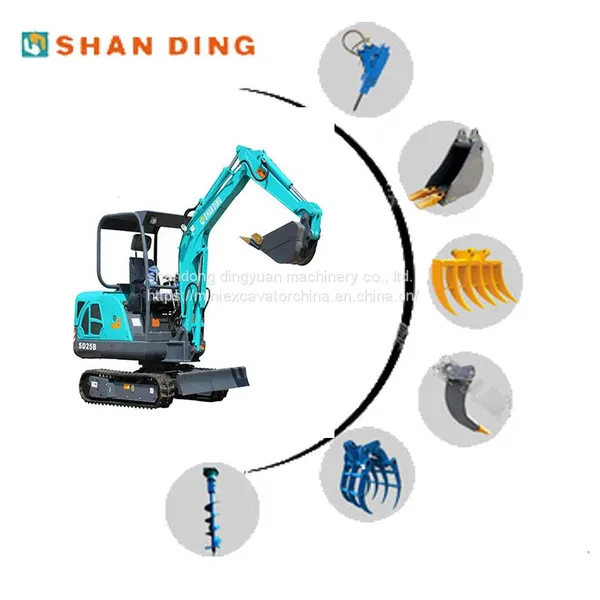

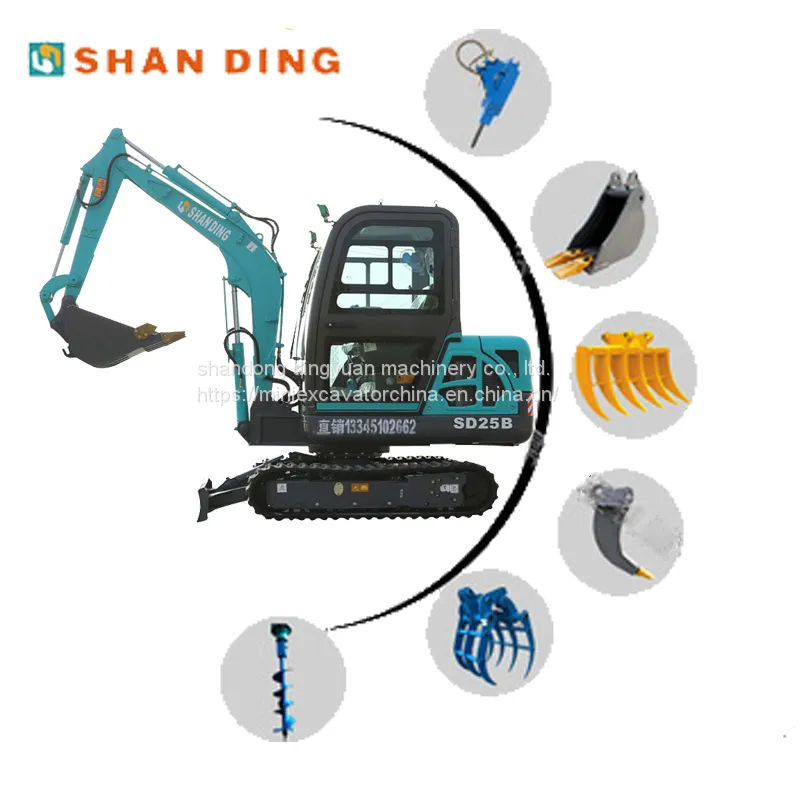

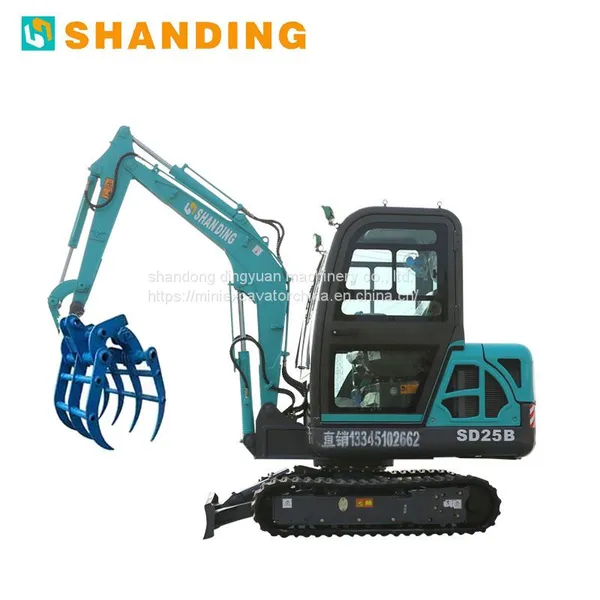

OPTIONAL ATTACHMENTS:
OUR FACTORY:
