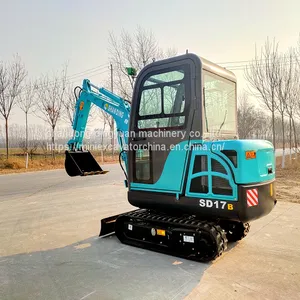

1.5 ton hydraulic excavator with cabin for sale

FOB Price

USD $10280 - $13150 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port QINGDAO
Payment Terms:T/T L/C Credit Card Cash
Delivery Detail:10 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	SHANDING	Place of Origin:	China	Model Number:	SD17B
Certification:	ce	After-sales Service Provided:	No overseas service provided	Condition:	New
Machine Weight:	1680KG	Moving Type:	Crawler Excavator	Rated Speed:	2.5KM/H
Max Digging Radius:	3600MM	Maximum Digging Depth:	1950MM	Maximum Digging Height:	2080MM
Bucket capacity:	0.06M3	Operating Weight:	1750KG

Product Description

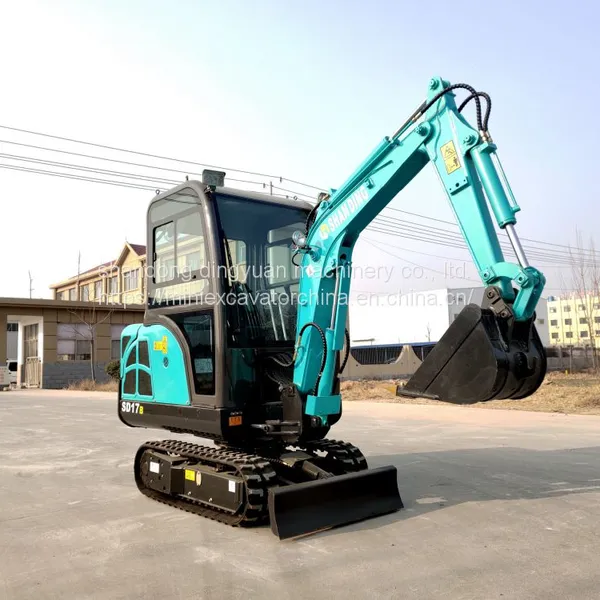

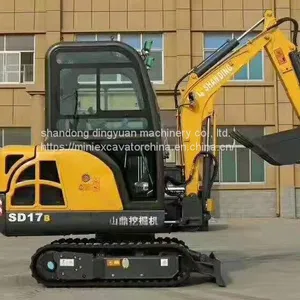

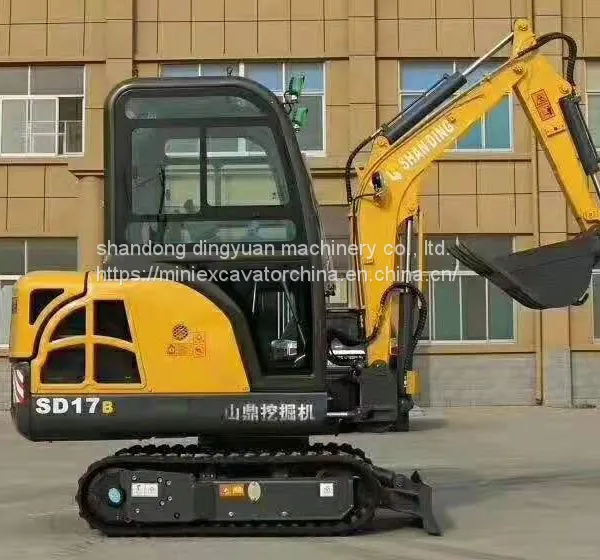

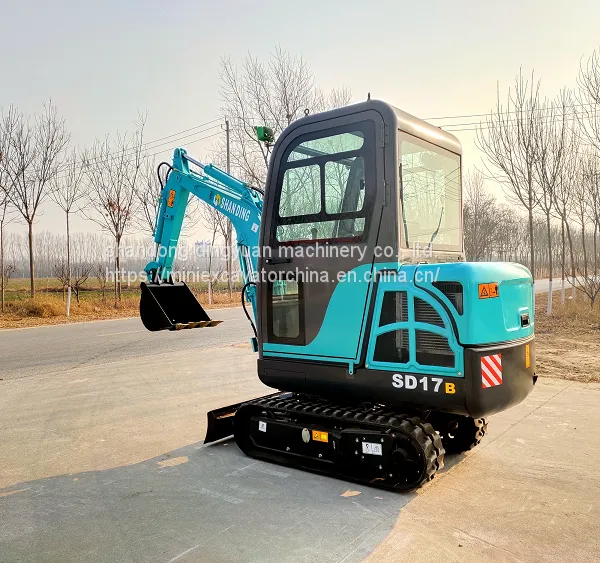

SD17B 1.7 TON HYDRAULIC EXCAVATOR WITH CABIN FOR SALE

Excavators are also called diggers, mechanical shovels, or 360-degree excavators (sometimes abbreviated simply to "360"). Tracked excavators are sometimes called "trackhoes" by analogy to the backhoe.aChoose an excavator with the ideal combination of horsepower, dig depth, arm configuration and tail swing style for your work. Add specialized attachments that do more than dig, and maximize productivity on every project you can take on, no matter how big or small.SD17B is a perfect excavator,real hydraulic excavator;uses perkins/yanmar engine,husci valve,eatom motors;boom swing,open cover,losed cabin,retractable undercarriage optional;can work with hammer,auger,grab,rake etc.

MAIN PARAMETERS:

Machine parameters
Model	SD17B
Operating Weight	1700Kg
Bucket Capacity	0.06m³
Rated Power	14.8 kw,14.7 kw,10 kw
Max.Hydraulic System Pressure	16mpa
Max. Grade ability	30°
Max. Ground Pressure	23.7N/m²
Max Walking Speed	2.9Km/h
Max. Traction	10KN
Platform Rotary Speed	9-11r/min
Boom swing function	yes
Crawler stretch function	optional

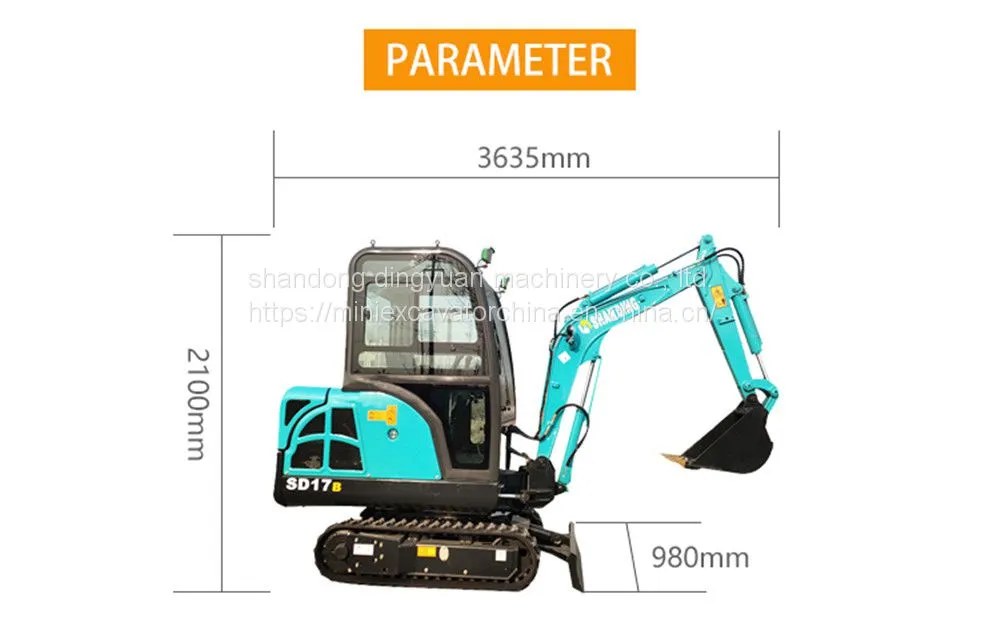

Dimensions
Overall Length	3635mm
Overall Width	1000mm
Overall Height	2150mm
Arm Length	900mm
Boom Length	1650mm
Track Length	1420mm
Track Width	230mm
Ground Clearance	305mm
Platform Width	990mm
Platform Ground Clearance	480mm
Bucket Width	450mm
Working range
Max. Digging Height	3300mm
Max Digging Depth	1950mm
Max. Digging Radius	3600mm
Max Dumping Height	2080mm
Radius of Tail Gyration	1180mm
Max. Sinking Depth of Bulldozer	200mm
Max. Lifting Depth of Bulldozer	225mm
Machine configure
Engine Model	Laidong ,Perkins,Yanmar
Main valve	Husco
Main Pump	Futai 3 pumps system
Rotation Motor	Eaton
Walking Motor	SANYO

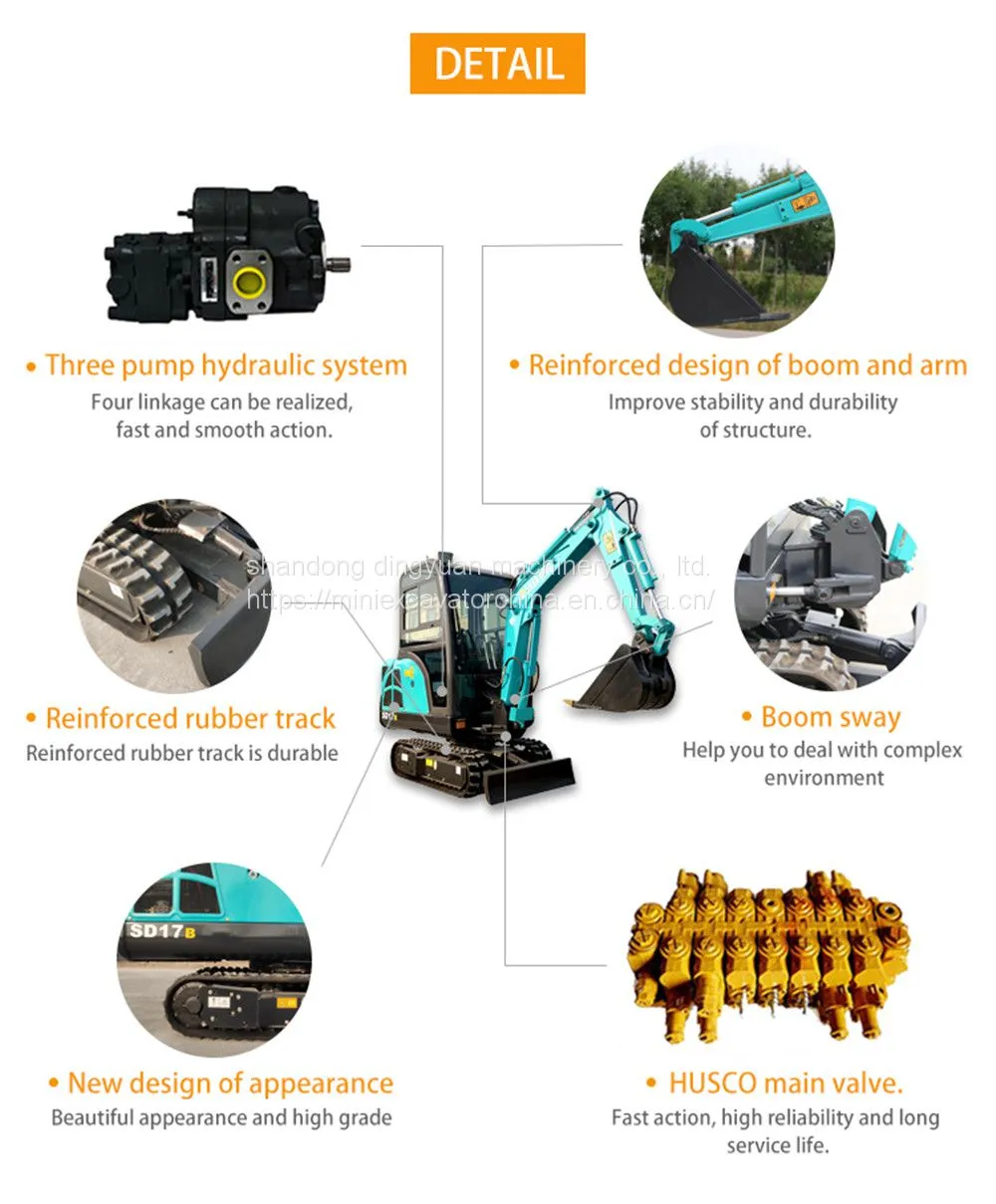

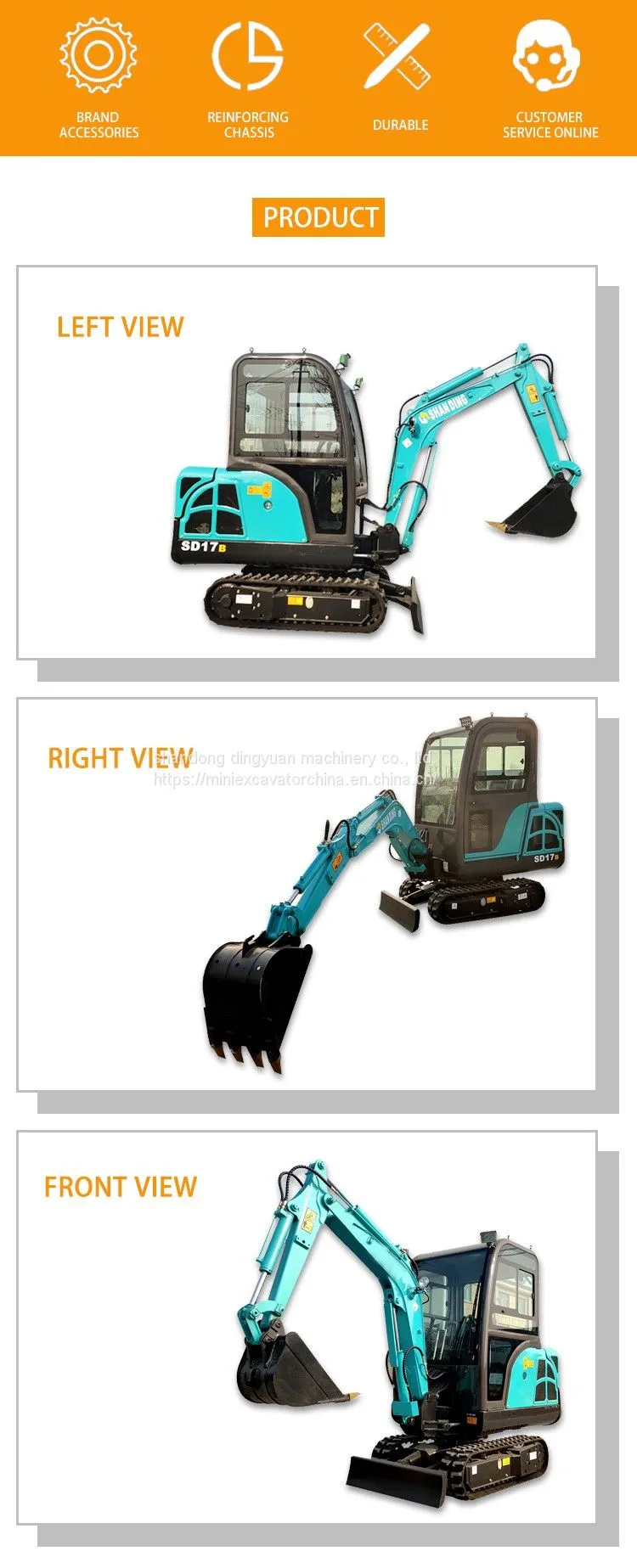

ADVANTAGES:

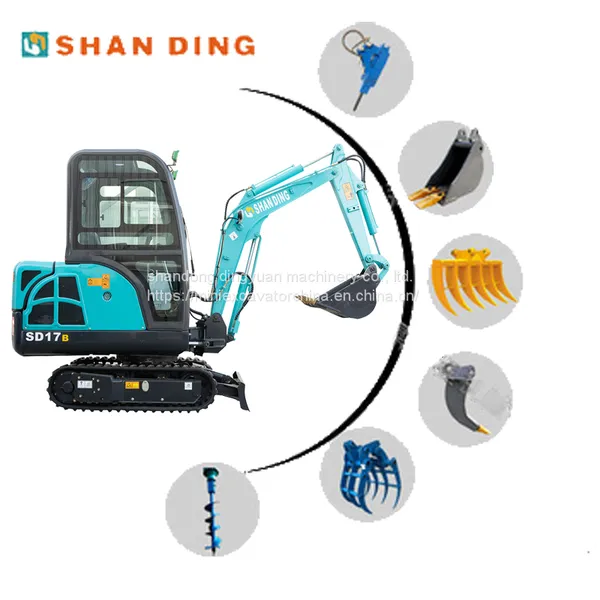

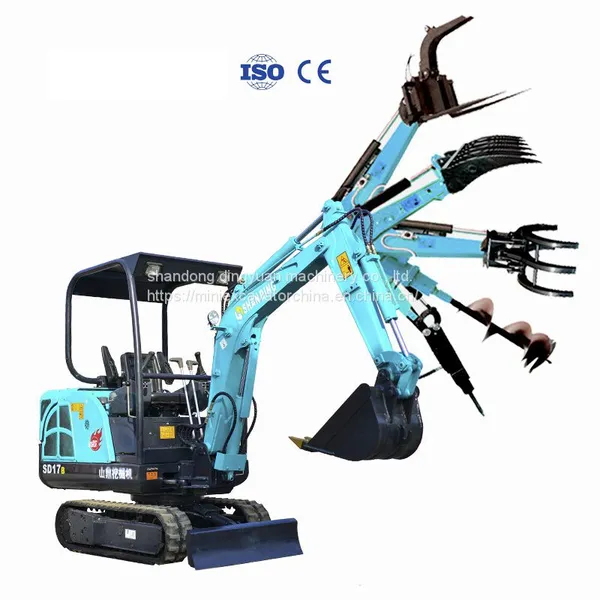

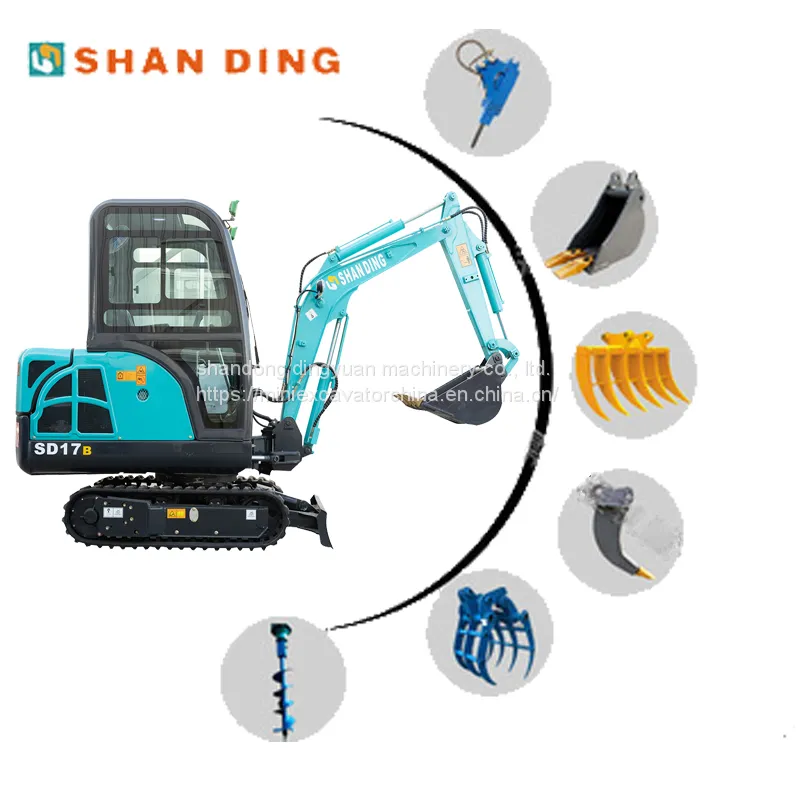

OPTIONALATTACHMENTS:

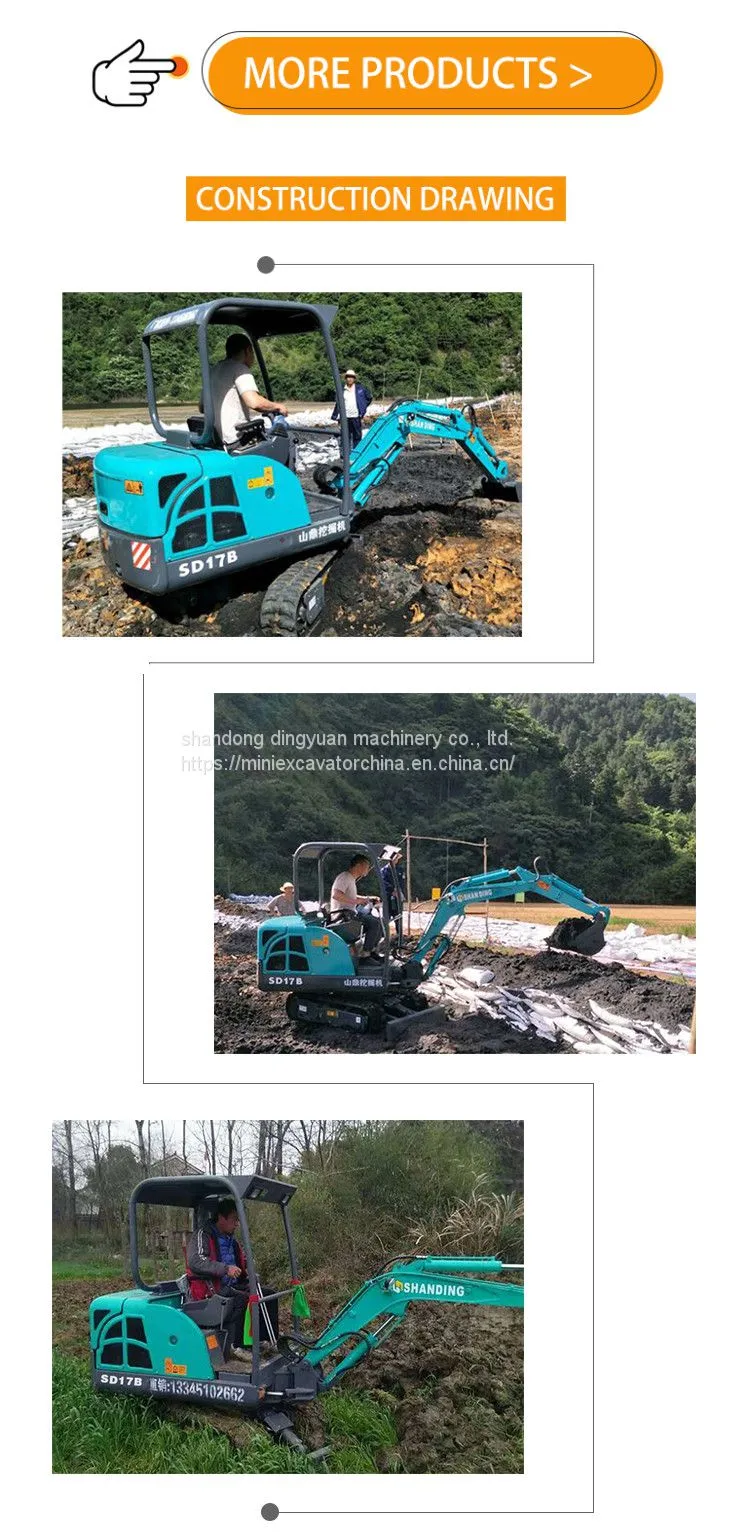

OUR FACTORY:

Contact Us

shandong dingyuan machinery co., ltd.: Contact nameDavid Qiao; Phone86-534-2128588-008; Addressyucheng Dezhou,Shandong
