SD30B EURO V &EPA STANDARD CE CERTIFIED CHINA MINI EXCAVATOR MINI DIGGER 2 TON 3 TON 5 TON MINI EXCAVATOR FOR SALE
Excavators are also called diggers, mechanical shovels, or 360-degree excavators (sometimes abbreviated simply to "360"). Tracked excavators are sometimes called "trackhoes" by analogy to the backhoe. Choose an excavator with the ideal combination of horsepower, dig depth, arm configuration and tail swing style for your work. Add specialized attachments that do more than dig, and maximize productivity on every project you can take on, no matter how big or small.SD30-9B is a real engineering excavators, it can works with all the accessories!

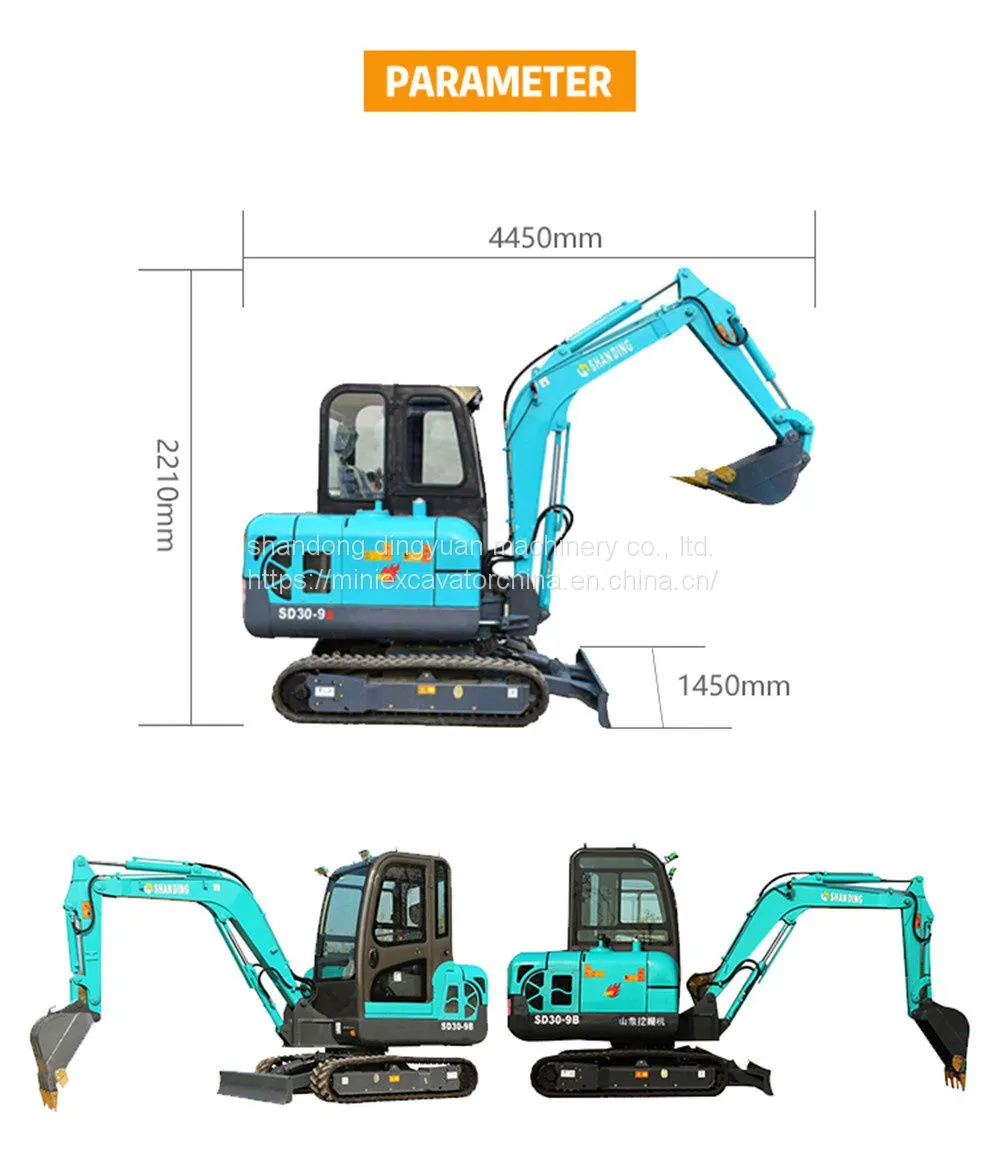

MAIN PARAMETERS:
Overall size | |
Overall Length |
4450mm |
Overall Width |
1450mm |
Overall Height |
2210mm |
Radius of Tail Gyration |
1975mm |
Track Length |
1850mm |
Track Width |
280mm |
Min Ground Clearance |
295mm |
Platform Width |
1250mm |
Engine hood height |
1320mm |
Platform Height Above Ground |
560mm |
Boom Length |
2150mm |
Bucket Width |
550mm |
Arm Length |
1150mm |
Machine parameters | |
Machine Weight |
2600Kg |
Bucket Capacity |
0.11m³ |
Rated Power |
20KW |
Rated Rotary speed of Engine |
2200r/min |
Hydraulic Pressure |
18MPa |
Max Grade |
30° |
Ground Pressure |
32kpa |
Max Travel Speed |
2.7Km/h |
Max. Traction |
18KN |
Max Platform Rotation Speed |
11rmp |
Working range | |
Max. Digging Height |
4010mm |
Max. Dumping Height |
2550mm |
Max. Digging Depth |
2900mm |
Max Digging Radius |
4550mm |
Digging Radius of Max. Digging Height |
2420mm |
Min. Radius of Gyration |
1995mm |
Max. Sinking Depth of Bulldozer |
170mm |
Max. Lifting Height of Bulldozer |
205mm |
Machine configure | |
MODEL NO |
SD30-9B |
Engine No |
Changchai390 |
Pump |
Three pump hydraulic system (gear pump) |
Rotary Motor |
NACHI |
Travel Motor |
Eaton |

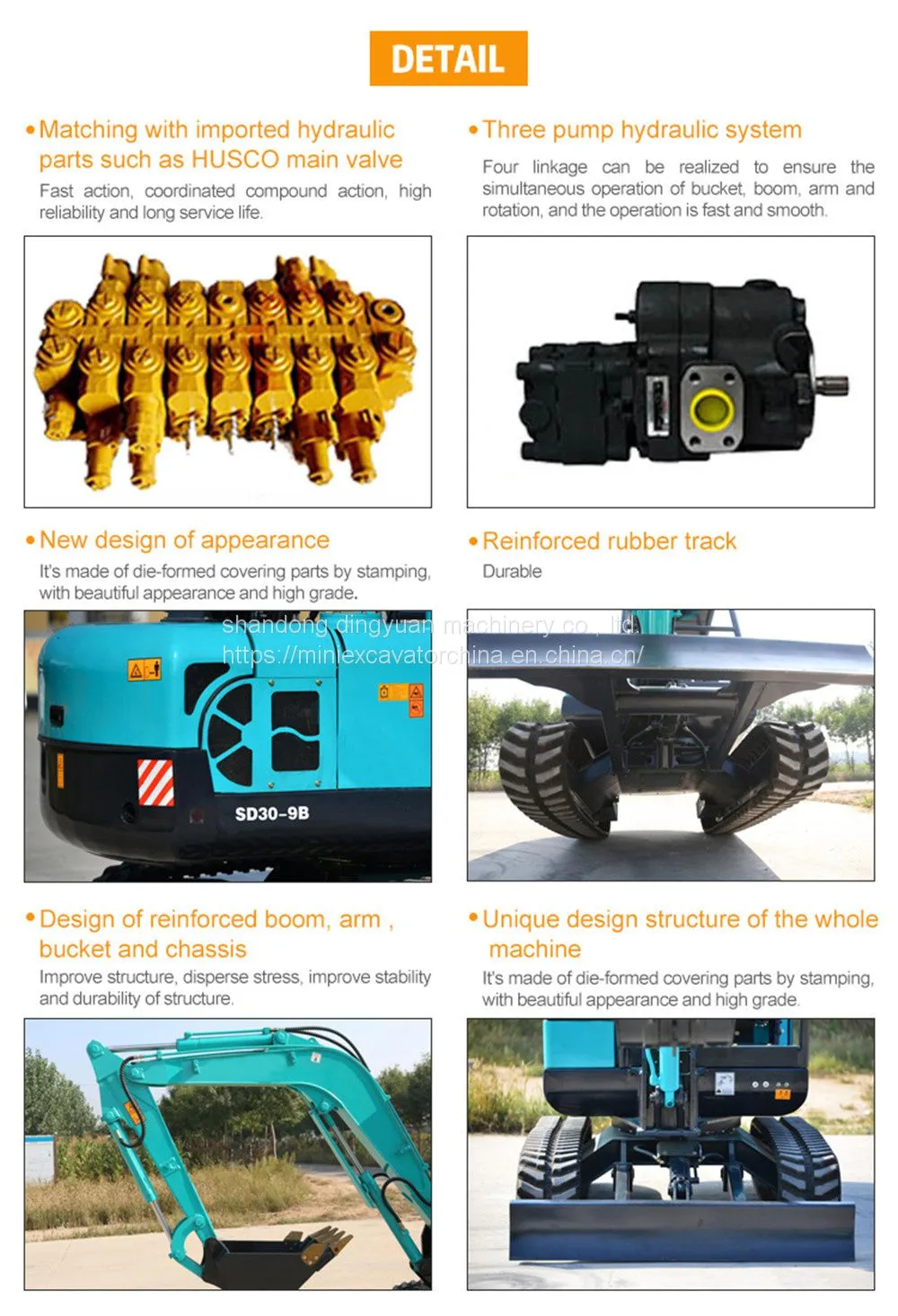

ADVANTAGES:

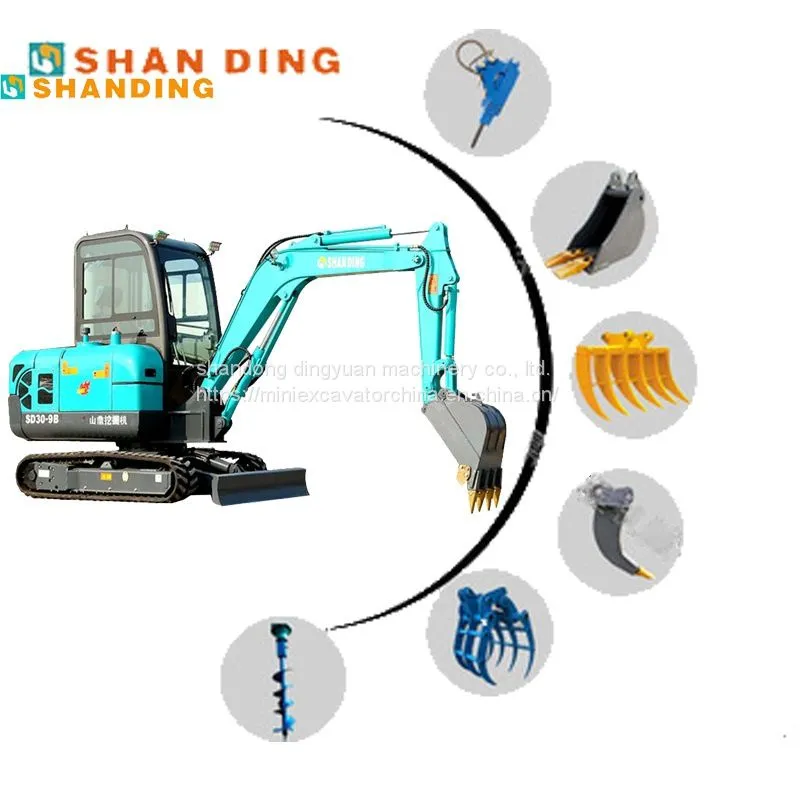

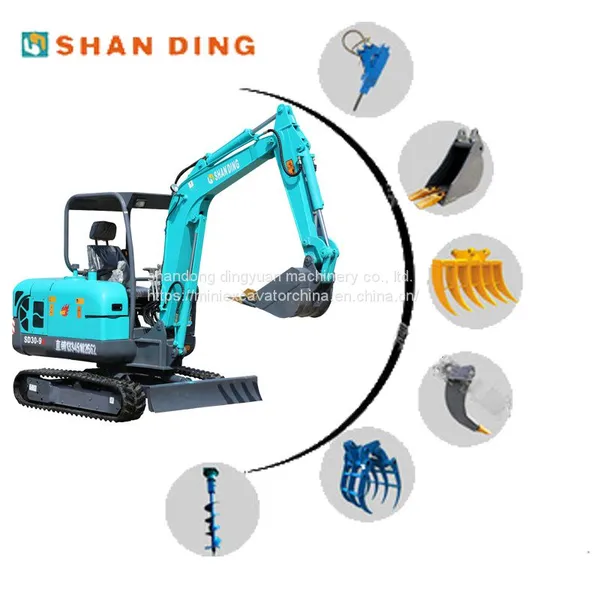

OPTIONAL ATTACHMENTS:
OUR FACTORY:
