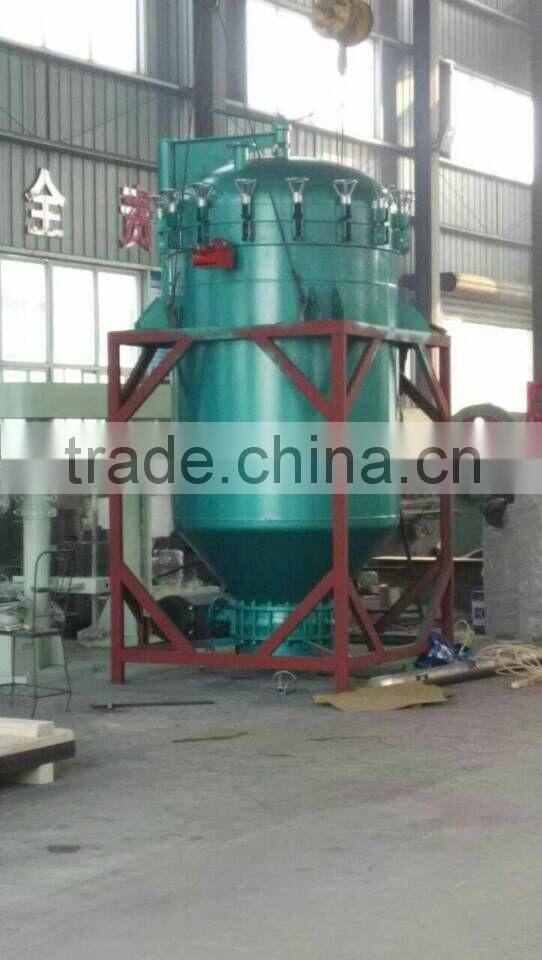

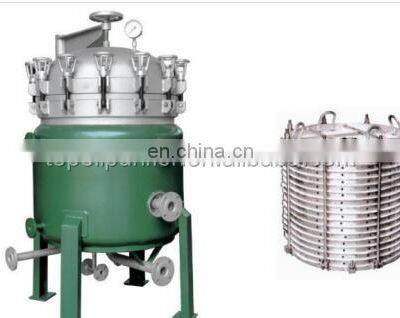

Help CenterVegetable Oil Filter/Peanut Oil Filter/Sunflower Oil Vertical Filter Press
Related Products
-
Latest Model Portable Frying Oil Filter Press/BAS Food-grade Vegetable Oil High Pressure Oil FilterNegotiableMOQ: 1 -
Online Little Coconut Oil Filter Press,vegetable Oil Pressure Decontamination Filtering,industrial Oil Filtration EquipmentNegotiableMOQ: 1
-
Small Size Industrial Oil Plate Filter Press/Kerosene Oil Processor/Mineral Oil Filtration PlantNegotiableMOQ: 1
-
SS 304 Material BAS Series Portable Small Type Olive and Coconut Oil Filter PressNegotiableMOQ: 1
-
Virgin Coconut Oil Filter Press/Peanut Oil Filter Machine/Beer Filtration System BASNegotiableMOQ: 1
Advantages
The filtering cost is greatly reduced by the filter mesh plate of unique design and no need of filter paper or filter. And its fully enclosed filtration help avoid pollution and oil loss. The vibrating slags falling greatly lowers work intensity thus achieve continuous operation. Also the auto valve slagging reduces the workers’ labor intensity a lot.

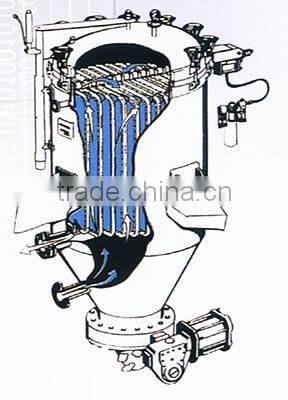

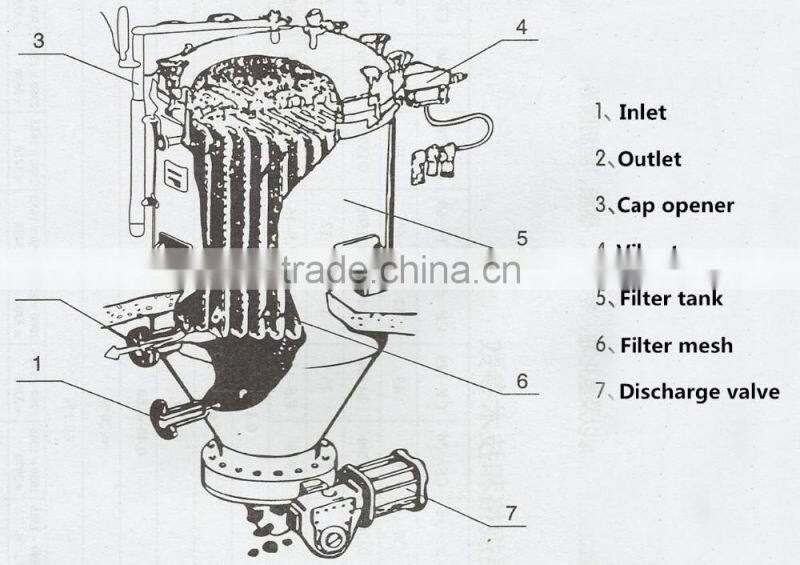

Filtering principles and application scope
1. Metal wire mesh+filter aid+pressure
2. The metal wire mesh is made of multilayer twill mesh and frame.
3.When there is pressure difference, the decolorizer forms a filtering conductive layer on th4 mesh plate for normal filtering.
5. Suitable for decoloring filtration and crude oil filtration of salad oil, cooking oil etc.
Model |
Capacity (ton/hr) |
Dimension (LxWxH,mm) |
VFD-10 |
1.5 to 3 |
1100x1085x2300 |
VFD-12 |
1.5 to 4 |
1580x1100x2500 |
VFD-15 |
2 to 5 |
1680x1185x2500 |
VFD-20 |
3.5 to 6 |
1680x1185x2800 |
VFD-25 |
4 to 7 |
1780x1285x2800 |
VFD-30 |
4.5 to 8 |
1880x1385x2800 |
VFD-36 |
5 to 9 |
1880x1385x3070 |
VFD-45 |
6.5 to 11 |
1980x1485x3200 |
VFD-52 |
7.5 to 13 |
2080x1585x3300 |
VFD-60 |
8.5 to 15 |
2180x1685x3420 |
VFD-70 |
9.5 to 16 |
2380x1685x3420 |
VFD-80 |
10.5 to 18 |
2380x1785x3530 |
VFD-90 |
11.5 to 21 |
2380x1885x3730 |
Chongqing TOP Group, located at Chongqing city-a southwest electromechanical manufacturing center as well as national municipality,owns Chongqing TOP Oil Purifier Co.,LTD and Chongqing TOP Tester Co.,LTD. TOP is a professional leading manufacturer and supplier of oil purifiers and various testers for petrochemical products and power equipment.

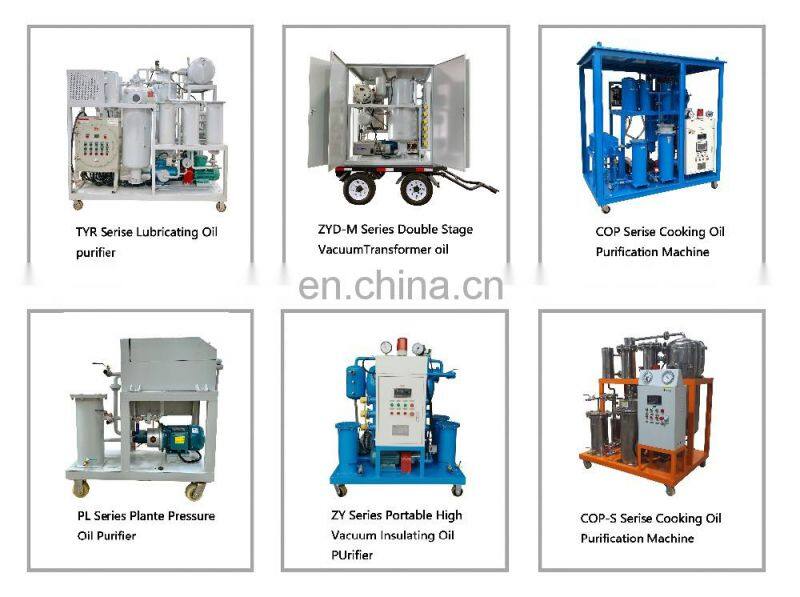

TOP Oil Purifiers provide you with reliable insulting oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, transformer oil filtering machine, fuel oil restoration, steam-turbine oil reconditioner,dielectric fluid regeneration system, circuit-breaker oil recovering system, compressor oil recovering machine, gear oil renewal machine, coolant oil treatment, quenching oil reclaiming machine, oil and water separator, steel-rolling oil regeneration equipment, waste automobile oil recycling equipment etc.
TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers,transformer substation electrical testing equipment and circuit detecting equipment. Main products are trace water content testers, fully auto surface/interfacial tension testers, open/closed cup flash point testers, kinematic viscosity testers, oil acidity testers, air release value testers, multifunctional degassing oscillation instruments, dielectric loss testers, insulation oil dielectric strength testers, transformer characteristics comprehensive testers, relay protection testers, cable testers, high voltage testing equipment etc.
Honest Team - TOP always honestly treat you and keep faith to make you satisfied with every cooperation with us.
Sincere Communication - TOP sincerely communicate with you to guarantee the provided products to be your ideal ones.
Reliable Quality -TOP own high quality and high performance for every TOP product is under strict quality control and testing.
Service Commitment - TOP bring you prompt, considerate and professional aftersale service and technical support, and explore technology future together.
Chongqing TOP Oil Purifier Co., Ltd
Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. Our company consists of departments respectively for technological development, machinery manufacture, instrument manufacture and quality control etc.
