Product Details
| Brand Name | Yister | Place of Origin | China | |
| Model Number | 2V025-06 2V025-08 | Material | Alloy | |
| Application | General | Structure | Control | |
| Standard or Nonstandard | Standard | Pressure | Medium Pressure | |
| Power | Pneumatic | Port Size | G1/8 | |
| Media | Other, Air compressor solenoid valve | Temperature of Media | Normal Temperature |
Product Description

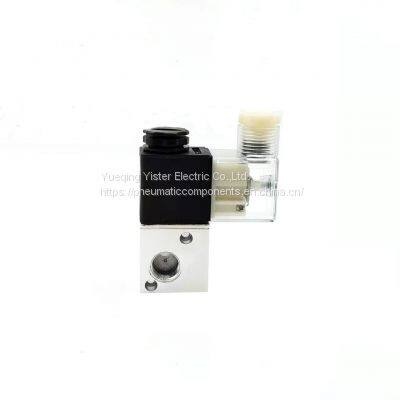

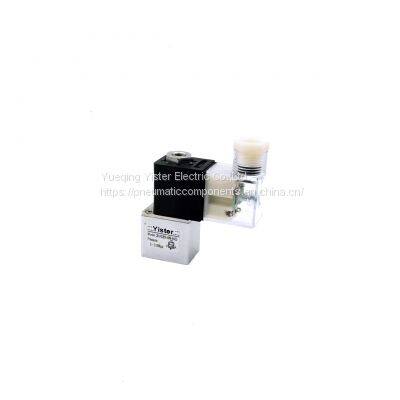

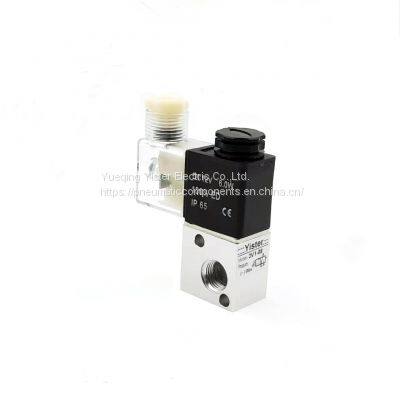

AC220V normally open 2/2way mini air compressor solenoid control valve

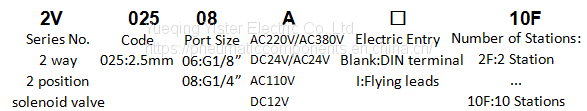

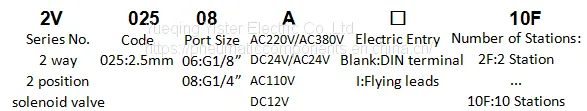

Order code for 2V025-08
220V direct acting Solenoid valve Symbol
Technical parameter
Model | 2V025-06 | 2V025-06-10F | 2V025-08 |
Fluid | Air. Water. Oil | ||
Acting | Direct acting solenoid valve | ||
Initial state | 2.5 | 2.5 | 2.5 |
Orifice size | 0.23 | 0.23 | 0.25 |
Port size | G1/8'' | G1/8'' | G1/4'' |
Viscosity limit | Under 20CST | ||
Pressure range | 0-1.0MPa(0~145psi) | 0-1.0MPa(0~145psi) | 0·05-1.0MPa(7~145psi) |
Proof pressure | 1.5MPa(215psi) | ||
Material of body | Aluminum Alloy | ||
Seal material | NBR | ||
| <0.05s | ||

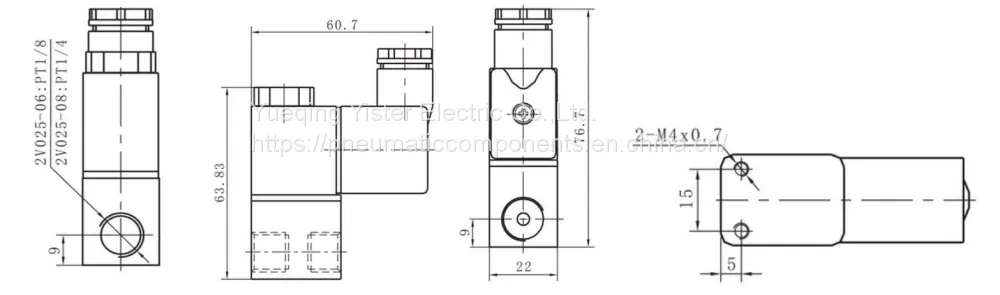

DimensionFeature
.2V025-08 Solenoid Valves（2 Way Normally Closed /Normally Open）AC220V/1/4NPT（Please air in the direction of the arrow above the product）
.2v025-08 has high precision pilot head, up to 5 times/second response speed, suitable for a wide range of, responsive, smooth work, high-speed use without jam.
