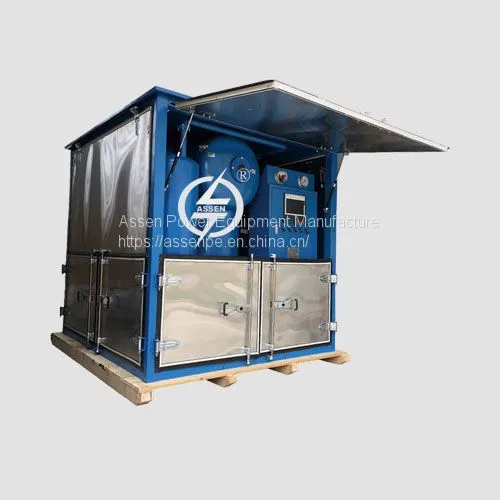

Cost Effective Chinese Vacuum Transformer Oil Filtration, Insulating Oil Purifier

Cost Effective Chinese Vacuum Transformer Oil Filtration, Insulating Oil Purifier

Application

Dielectric strengh BDV in transformers is effected by moisture, particles and dissolved gases,the functions of insulation and dielectric strength will decrease and harm for the transformer. So the transformer need to be maintained after using for a period of time. Assen designed Vacuum Transformer Oil Filtration Machine to keep oil absolutely drying and clean by removing water,gas,solid,dust etc, and improving the insulating oil performance index. The insulating oil dehydration machine ensure efficient performance of transformers and reduce ecological disposal problems.It is skid mounted,self-contained and equips controlled full state operational panel for fully automatical operation. Assen's expert team integrated the most advanced technology in this product. It can continuously work without manual operation, to save your human consumption.

Transformer Oil Treatment Plant's Features

1. Pre-Electromagnetic-valve before vacuum pump to prevent the vacuum oil flow backwards.
2. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa
3. Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.
4. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
5.Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
6. Pre-gas-water separator before vacuum pump to prolong the vacuum pump and vacuum pump oil.
7. Double protecting system, Gas-water separator equips liquid level protector to prevent oil escape from vacuum pump
8. Optical oil foam detector and high oil level detector to prevent oil escape from vacuum pump
9. Low oil level sensor to prevent oil pump idle working, so prolong oil pump lifetime
10. Completely Intelligent pressure protector to protect oil pump and fine filter
11. Completely Intelligent vacuum controller to protect the booster pump
12. Fully intelligent temperature controller to prevent the large surge current
13. Phases protector, voltage overload protector to achieve unattended

After treatment

Main Parts

Assen's Information

Professional

20 years experience of manufacturing and exporting oil purification machines

Reliable

24/7 after service and technical support

Efficient

Customized your waste oil solutions by our team

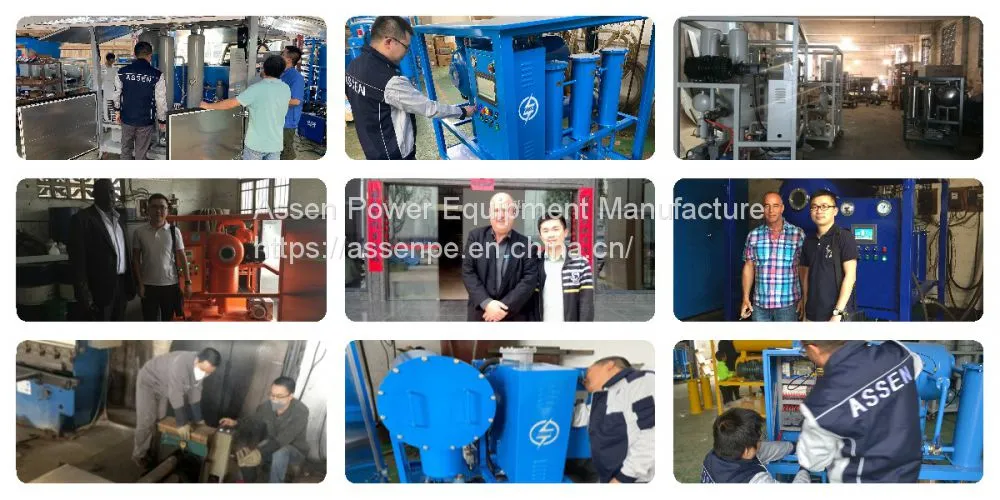

Assen's Factory
